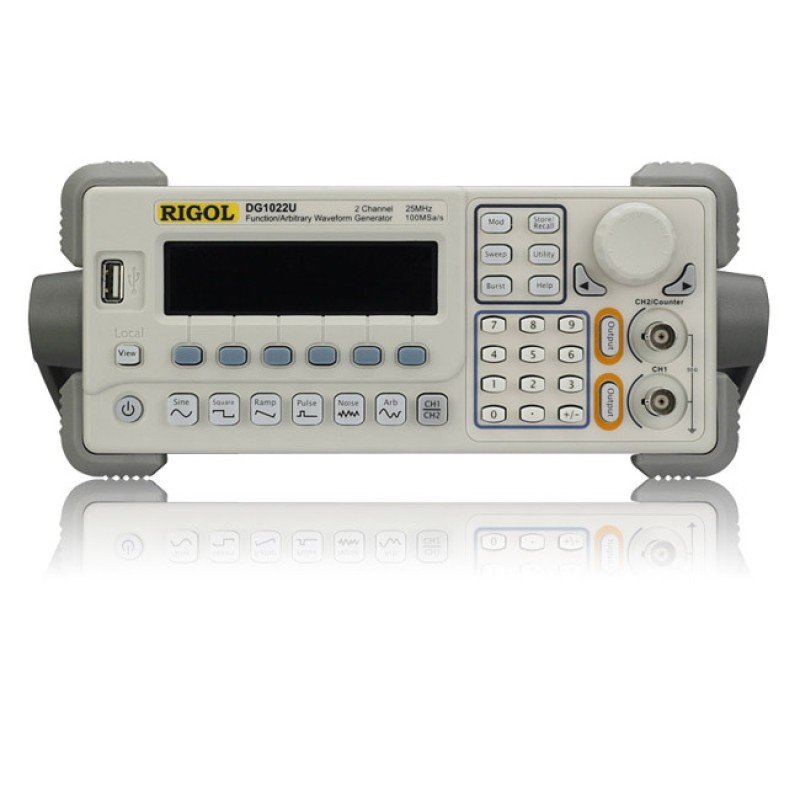

Function / Arbitrary Waveform Generator DG1022

Features and Benefits
1 using DDS direct digital synthesis technology, the output signal accurate and stable, low distortion
2. 100 MSa / s sampling rate, 14 bits of vertical resolution, 4 k-point memory depth
3. An intuitive graphical interface, you can easily get started without reading the instructions
4 out 10 standard waveforms: sine, square, sawtooth, pulse, noise, rose, fell, Sinc wave, electrocardiogram wave, DC
5. Intuitive, easy to generate user-defined arbitrary waveforms
6 has a wealth of modulation, the output waveform of modulation: amplitude modulation (AM), frequency modulation (FM), phase modulation (PM), frequency shift keying (FSK), sweep (SWEEP), Burst (BURST)

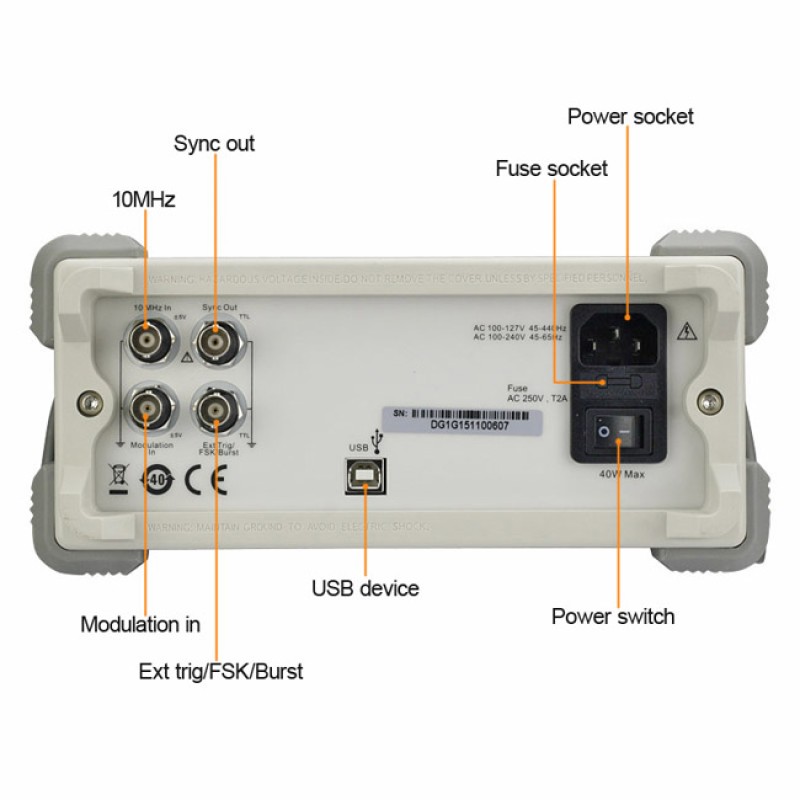

7. Rich input and output: External modulation source, an external 10MHz reference clock, external trigger input, waveforms output, Digital synchronous signals output, the internal 10 MHz clock output
8 high-precision, wide-band frequency meter, frequency range up to 200 MHz
9. USB Host socket, support U disk storage
10 seamless connectivity with DS series oscilloscopes, direct access storage oscilloscope waveforms and non-destructive to reproduce
11 language user interface, built-in help system

Model



DG1022

Maximum output frequency



20 MHz

Output Channels



2

Sampling rate



100 MSa/s

Any wave length



CH1

2 pts – 4kpts

CH2

2pts – 1kpts

Frequency resolution



1 μHz

Amplitude range



CH1

2 mVpp ~ 10 Vpp?50 Ω??4 mV ~ 20 Vpp????

CH2

2 mVpp ~ 3 Vpp?50 Ω??4 mV ~ 6 Vpp????

Vertical resolution



CH1

14 bits

CH2

10 bits

Standard Interface



USB Host & Device

Optional Interface



/

Product category



Desktop Function / Arbitrary Waveform Generator
