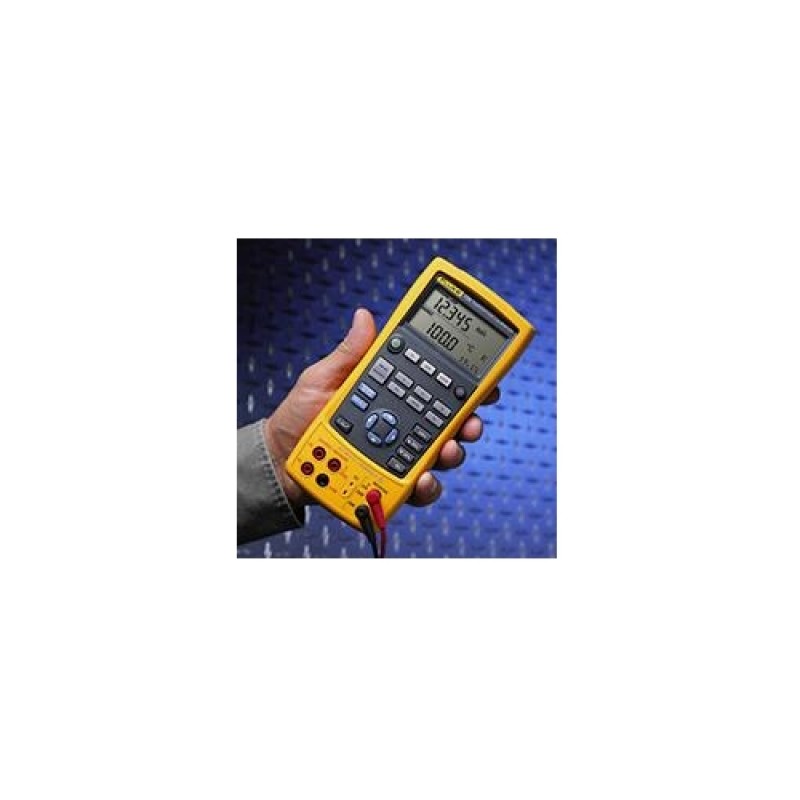

FASTTOBUY: Temperature Calibrator FLUKEF724 FLUKE NEW

PLCAGE: Temperature Calibrator FLUKEF724 FLUKE NEW

specifications

a powerful and easy-to-use field calibrator, using its measurement and output functions to test and calibrate almost any temperature instrument.

Through the dual display screen, you can view both the input and output signals measured RTD, thermocouple, ohm and voltage test sensors and transmitters Source / simulate RTD, thermocouple, voltage, resistance to calibrate the transmitter through 25% and 100% steps for fast linearity tests come in through the automatic step and auto ramp function enables remote testing to provide loop power transmitter simultaneous mA measurement frequently used settings can be saved for later use compact sleek design, easy to carry and handheld rugged, reliable, and suitable for field use bright backlit display, you can work in any lighting condition 4 AA batteries, plenty of power battery door for easy battery replacement

Measurement Accuracy

DC voltage

30.000 V 0.02% + 2 digits (upper display)

20.000 V 0.02% + 2 digits (lower display)

100.00 mV 0.02% + 2 digits

-10.00 MV to 75.00 mV 0.025% + 1 word (using thermocouple connector)

DC current

24.000 mA 0.02% + 2 digits

Impedance

0.0 to 400.0 Ω 0.1Ω (4 wire), 0.15Ω (2 and 3-wire)

401 to 1500 Ω 0.5Ω (4 wire), 1Ω (2 and 3-wire)

1500 to 3200 Ω 1Ω (4 wire), 1.5Ω (2 and 3-wire)

Output Accuracy

DC voltage

100.00 mV 0.02% +2 digits

10.000 V 0.02% +2 digits

-10.00 MV to 75.00 mV 0.025% + 1 word (using thermocouple connector)

Impedance

15.0 to 400.0 Ω 0.15 Ω (excitation Current 0.15 to 0.5 mA), 0.1 Ω (excitation current 0.5 to 2 mA)

401 to 1500 Ω 0.5 Ω (excitation Current 0.05 to 0.8 mA)

1500 to 3200 Ω 1 Ω (excitation Current 0.05 to 0.4 mA)

RTD and Thermocouple

Measurement accuracy :

NI-120 0.2 ° C

PT-100 (385) 0.33 ° C

PT-100 (393) 0.3 ° C

PT-100 (JIS) 0.3 ° C

PT-200 (385) 0.2 ° C

PT-500 (385) 0.3 ° C

PT-1000 (385) 0.2 ° C

Resolution : 0.1 ° C

J: 0.7 ° C

K: 0.8 ° C

T: 0.8 ° C

E: 0.7 ° C

R: 1.8 ° C

S: 1.5 ° C

B: 1.4 ° C

L: 0.7 ° C

U: 0.75 ° C

N: 0.9 ° C

Resolution, J, K, T, E, L, N, U: 0.1 ° C, 0.1 ° FB, R, S: 1 ° C, 1 ° F

Output accuracy:

NI-120 0.2 ° C

PT-100 (385) 0.33 ° C

PT-100 (393) 0.3 ° C

PT-100 (JIS) 0.3 ° C

PT-200 (385) 0.2 ° C

PT-500 (385) 0.3 ° C

PT-1000 (385) 0.2 ° C

Resolution : 0.1 ° C

Note: Accuracy Specifications for the 4 -wire measurement mode accuracy.

J: 0.7 ° C

K: 0.8 ° C

T: 0.8 ° C

E: 0.7 ° C

R: 1.4 ° C

S: 1.5 ° C

B: 1.4 ° C

L: 0.7 ° C

U: 0.75 ° C

N: 0.9 ° C

Resolution, J, K, T, E, L, N, U: 0.1 ° C, B, R, S: 1 ° C

Technical Specifications

Ramp signal

Output functions : voltage, current, resistance, frequency, temperature

Ramp slow ramp, fast ramp, 25% of the step ramp

Loop Power

Voltage : 24V

Accuracy: 10%

Maximum current : 22 mA, short-circuit protection

Step signal

Output functions : voltage, current, resistance, frequency, temperature

Step length range of 25% and 100%

Environmental Specifications

Operating Temperature

-10oC to 55oC

Storage Temperature

-20oC to 71oC

Humidity ( non-condensing )

10oC to 30oC

30oC to 40oC

40oC to 50oC

50oC to 55oC

Security Features

Security Level

CSA C22.2 No. 1010.1:1992

EMC

EN50082-1: 1992 and EN55022: 1994 Class B

Mechanical & General Specifications

Size

96 x 200 x 47 mm

Weight

650 g

Battery

Four AA-size alkaline batteries

Warranty

Years

Battery life

25 hours , typical

Shock and vibration

Random , 2G, 5-500 Hz
