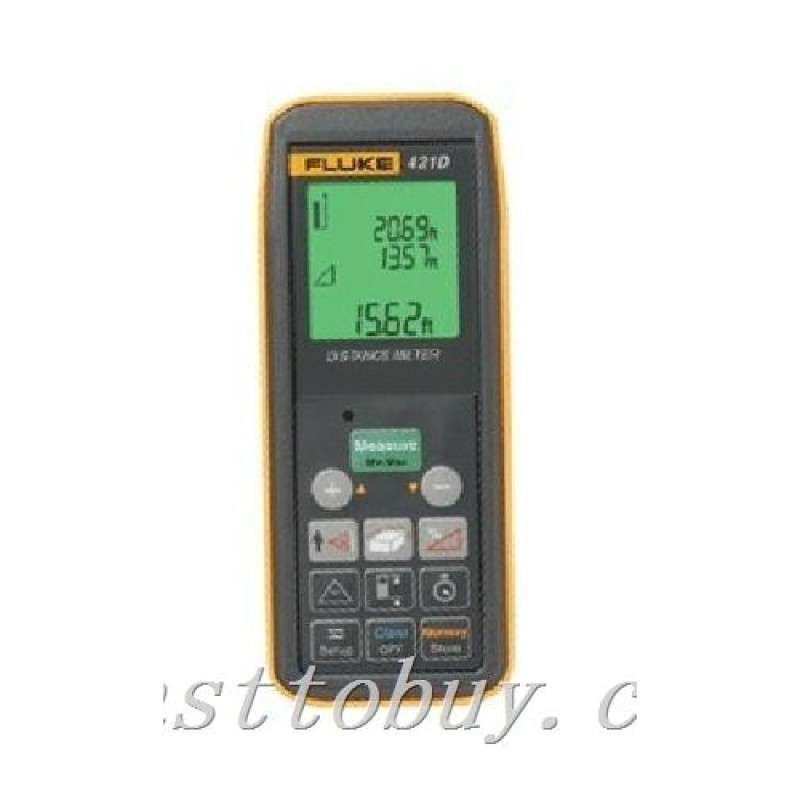

Distance Meter FLUKE421D FLUKE NEW

PLCAGE: Distance Meter FLUKE421D FLUKE NEW

Distance measurements:

Measuring accuracy up to 10 m (2 σ, standard deviation)

typically: ± 1.5 mm* (± 1/16 in*)

Power Range Technology™: Range (use target plate from about 80m)

0.05 m to 100 m

Smallest unit displayed  0.1 mm

Distance measurement   ok

Minimum/maximum measurement, Continuous measurement  ok

Area/volume calculation of room data  ok

Addition / subtraction   ok

Indirect measurement using Pythagoras  ok

Tilt measurements: Tilt sensor: Accuracy (2 σ, standard deviation)

- to laser beam +/-0.3°

- to the housing+/- 0.3°

Indirect measurement using tilt sensor (direct horizontal distance)  ok

Angle measurement using tilt sensor(± 45°)  ok

General: Laser class   II

Laser type  635 nm, < 1 mW

laser point (at distances)

6 / 30 / 60 mm

(10 / 50 / 100 m)

Automatic laser switch off

after 3 min

Automatic instrument

Switch off

after 6 min

Display illumination   ok

Keypad illumination   ok

Multifunctional endpiece   ok

Timer (self-triggering)   ok

Save constant value   ok

Historical storage (20 values)  ok

Tripod thread   ok

Battery life, Type AAA, 2 x 1.5 V NEDA 24A/IEC LR03

up to 5 000 measurements

Protection against splashes and dust

IP 54, dust-proof, splash-proof

Dimensions  125 x 45 x 25 mm

Weight (with batteries)  110 g

Temperature range: Storage

-25 °C to +70°C

(13 Fahrenheit to +158 Fahrenheit)

Operation

-10 °C to +50 °C

(14 Fahrenheit to +122 Fahrenheit)

Maximum altitude 3500 m (AMSL)

Maximum relative humidity

85% at 20 Fahrenheit to 120 Fahrenheit (-7 °C to 50 °C)

Pollution degree 2

Safety

CAN/CSA-C22.2 No. 61010-1-04, UL Std. No. 61010-1 (2nd Edition), ISA-82.02.01, IEC Standard No. 61010-1:2001, and EN60825-1:2007 (Class II)

EMC  61326-1:2006

*maximum deviation occurs under unfavorable conditions such as bright sunlight or when measuring to poorly reflecting or very rough surfaces. Measuring accuracy between 10 m and 30 m may deteriorate to approx. ± 0.025 mm/m, for distances above 30 m to ±0.1 mm/m.
