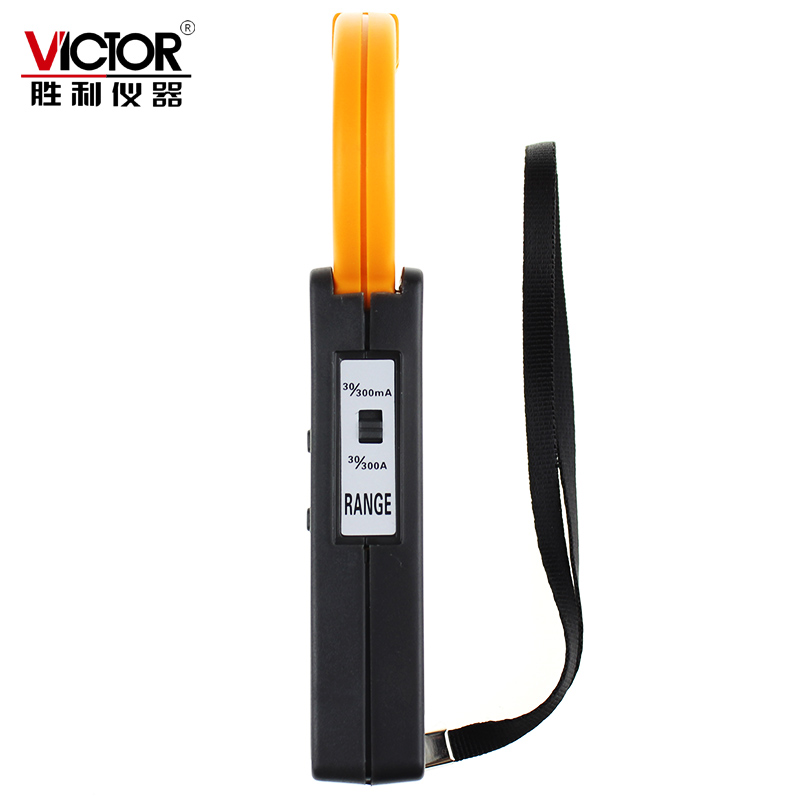

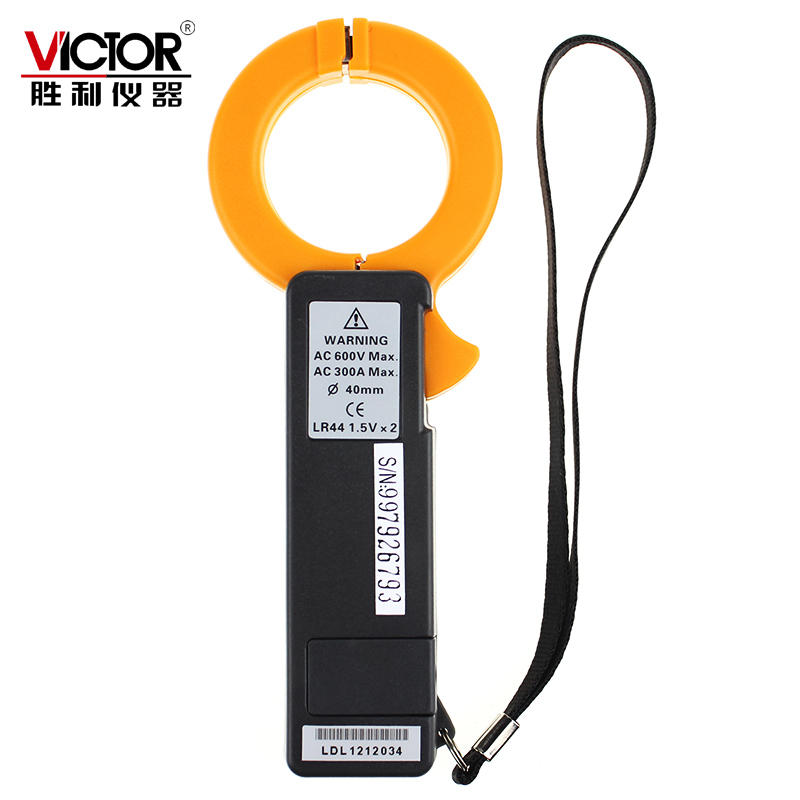

Clamp meter AC VC140 VICTOR

Function

Measurement of AC leakage current, AC current and on-line AC current

Power

DC3V Button-type battery LR-44×2 or SR-44×2

Test Mode

Clip-on CT?integral mode

Display Mode

Four Bits LCD display

Dimension

Width × Height× Thickness?

64mm×160mm×23mm

LCD Dimension

35mm×21.5mm?display domain?32mm×15mm

Clamp Mouth

φ40mm

Sampling Rate

about 2 times/s

Range

0.00mA?300.0A?50/60Hz?

Resolution

0.01mA

Measuring range

30mA/300mA?30A/300A?second-range manual switch?Automatic switch in all ranges

Measurement accuracy

(below 23?±1??

70%RH?

0.00mA?9.99mA: ±1.2%±5dgt

10.0mA?300.0mA: ±1.5%±5dgt

0.00A?9.99A: ±1.2%±5dgt

10.0A?99.9A: ±1.5%±5dgt

100.0A?199.9A: ±2%±5dgt

200.0A?300.0A: ±4%±5dgt

Line voltage

Line test under AC600V

Data Storage

60 groups, “FU” symbol flickering means storage is full

Peak Holding

Peak value capture and holding function, press HOLD button continually to show peak value in the course of testing.

Data Holding

Data holding function?displayed by “DH” symbol

Overflow display

Outrange overflow display?displayed by “OL” symbol

Automatic shutdown

After starting up the leaker for 5 minutes, it will shut down automatically to reduce battery consumption.

Battery voltage

When battery voltage reduced to 2.5V?2.7V, battery low voltage symbol will filker to remind replacing battery; at this time, measurement accuracy will decrease.

Leaker Quality

About 120g?with battery?

Rating Power

about 5mW

Working temperature and humidity

-0??40??below 80%rh

Storage temperature and humidity

-10??60??below 70%rh

Insulation strength

AC2kV/rms (between core and box)

Applicable safety rules

IEC1010-1?IEC1010-2-032?pollution, etc 2?CAT ?(600V)
