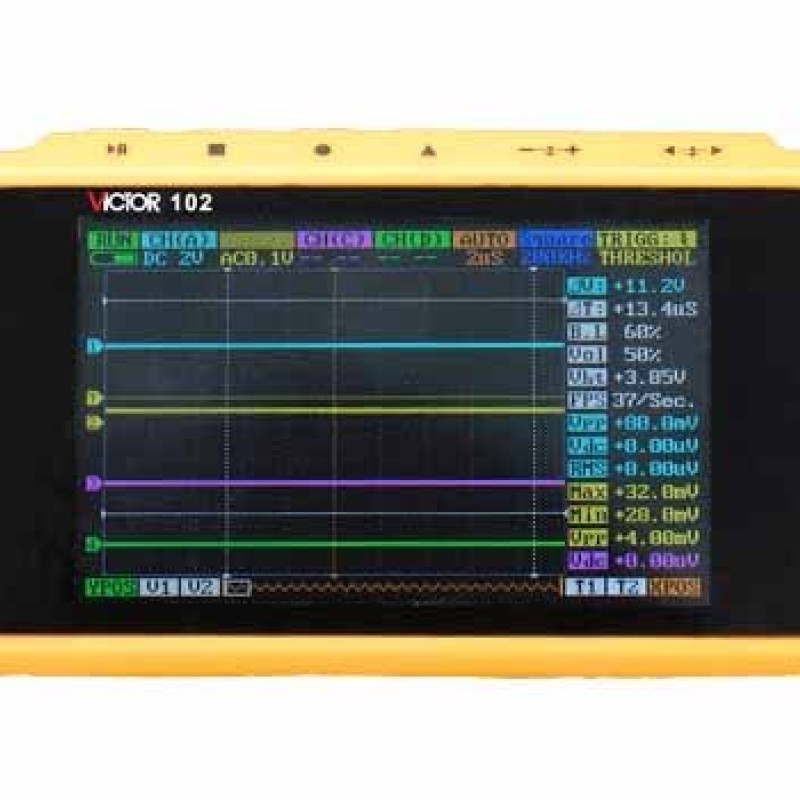

Digital Oscilloscope 8 bit VICTOR 102 VICTOR

Digital Oscilloscope  8 bit VICTOR 102 VICTOR
Digital Oscilloscope  8 bit VICTOR 102 VICTOR
Digital Oscilloscope  8 bit VICTOR 102 VICTOR
Digital Oscilloscope  8 bit VICTOR 102 VICTOR
Digital Oscilloscope 8 bit VICTOR 102 VICTOR
PLCAGE: Digital Oscilloscope  8 bit VICTOR 102 VICTORDetails: VICTOR 102 Pocket Oscilloscope is base... Read More
$280.00
Ex Tax: $280.00
  • Stock: In Stock
  • Model: 102 VICTOR
  • Weight: 0.78kg
1. We typically ship items within three business days after payment is received.
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.

Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.
We accept many payments,include Paypal,Bank Transfer etc
Tags: 102 VICTOR
PLCAGE: Digital Oscilloscope  8 bit VICTOR 102 VICTOR

Details:

 VICTOR 102 Pocket Oscilloscope is based on the ARM Cortex-M3 (STM32F103VCT6) 32-bit platform, use FPAG to manage ADC devices and date buffer. With 400 * 240 3' TFT color display, built-in 2M memory , USB interface which user can use to upgrade firmware or charging. Small size, simple operation, easy to use. Basically to meet the school experiment, appliance repair, the general demand for electronic engineering.

Features:

Ultra-portable, light weight

3 "color display 400 * 240

72 Ms/s sampling rate

Multiple trigger mode: auto, norma,sing,none,scan

Built-in test signal

USB rechargeable battery

 Technical characteristics

Model

VICTOR 102

Display

3 " TFT Color LCD

Display Resolution

240x400

Input channel

Analog: CH (A) CH (B)

Digital: CH (C) CH (D)

Maximum sampling rate

72MS/s,8 bit

Memory depth

1 channel 8 bit , 4 channel 4x4bit

Vertical sensitivity

20mV10Vdiv (STEP 1-2-5) ( by x1 probe)

200mV100Vdiv (STEP 1-2-5) ( by x10 probe)

Vertical resolution

8 bit

Level of sensitivity

0.1uS/Div-1S/Div

Horizontal position

Adjustable

Input coupling

AC/DC

Maximum input voltage

80Vpp( by x1 probe)

400Vpp ( by x1 probe)

Trigger mode

Auto, Norm

Sing, None,Scan

Waveform storage

Built-in 2M storage space

Charging

USB interface charging

Size

105 x 53 x8 mm
