- Stock: In Stock

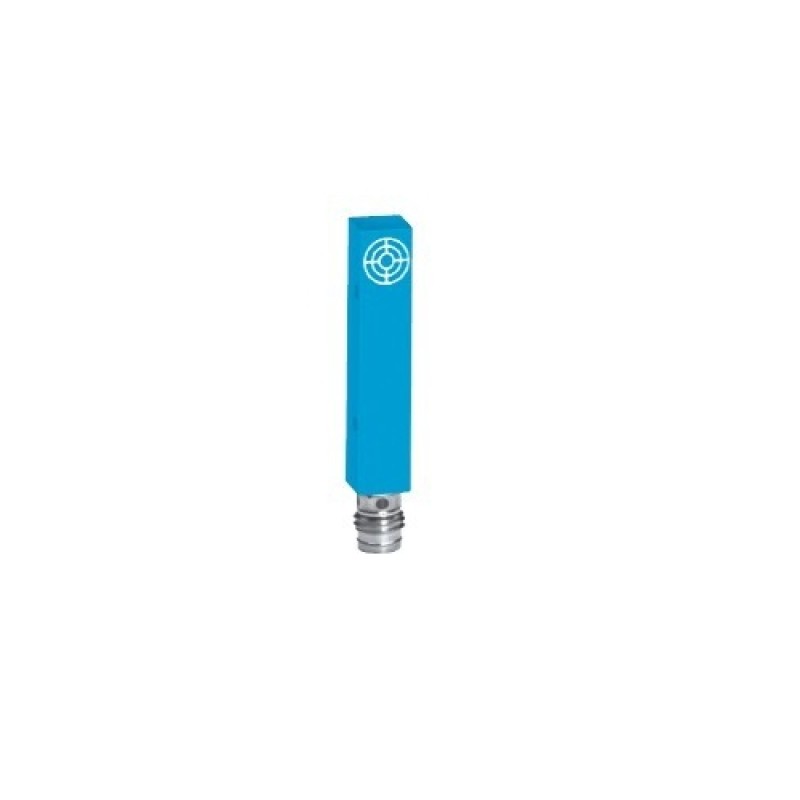

- Model: IQ08-02BPS-KT0
- Weight: 0.01kg
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.
Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.
Description?
Can be installed flush or non-flush in metal
High switching frequency
Short-circuit protection (pulsed)
Small plastic housing
Enclosure rating IP 67
Specification?
Sensing range Sn | 2 mm |
4mm | |
Electrical configuration | DC 3-wire |
Supply voltage Vs | DC 10 ... 30 V |
Ripple Upp | ≤ 10%1) |
Voltage drop Ud | ≤ 1.5V2) |
Power consumption | ≤ 10 mA3) |
Continuous current Ia | ≤ 300 mA |
Time delay before availability tv | ≤ 2ms |
Hysteresis H, of sr | 1…10% |
Repeatability R | ?1 % (Ub and Ta constant)4? |
Temperature drift, of sr | ± 10 % |
EMC | According to EN 60947-5-2 |
Switching output | PNP |
NPN | |
Output function | Normally open |
Installation | flush |
Non-flush5? | |
Connection type | Cable, PUR-PVC, 2 m |
Connector, M8, 3-pin | |
Enclosure rating | IP 675? |
Max. switching frequency | 5000 Hz |
Dimensions | 8 x 8 x 40 mm7? |
8 x 8 x 49mm7? | |
Wire-break protection | √ |
Short-circuit protection | √ 8? |
Reverse polarity protection | √ |
Power-up pulse suppression | √ |
Shock/vibration stress | 30 g, 11 ms/10 ... 55 Hz, 1 mm |
Ambient temperature Ta | –25 °C ... +75 °C |
Housing material | plastic |
Notes:
1) Of Ub
2) At Ia max
3) Without load
4) Of sr
5) Please do only use plastic screws for threaded mounting hole 4 (included in
delivery)
6) According to EN 60529
7) Width x height x depth
8) (Pulsed)
