- Stock: In Stock

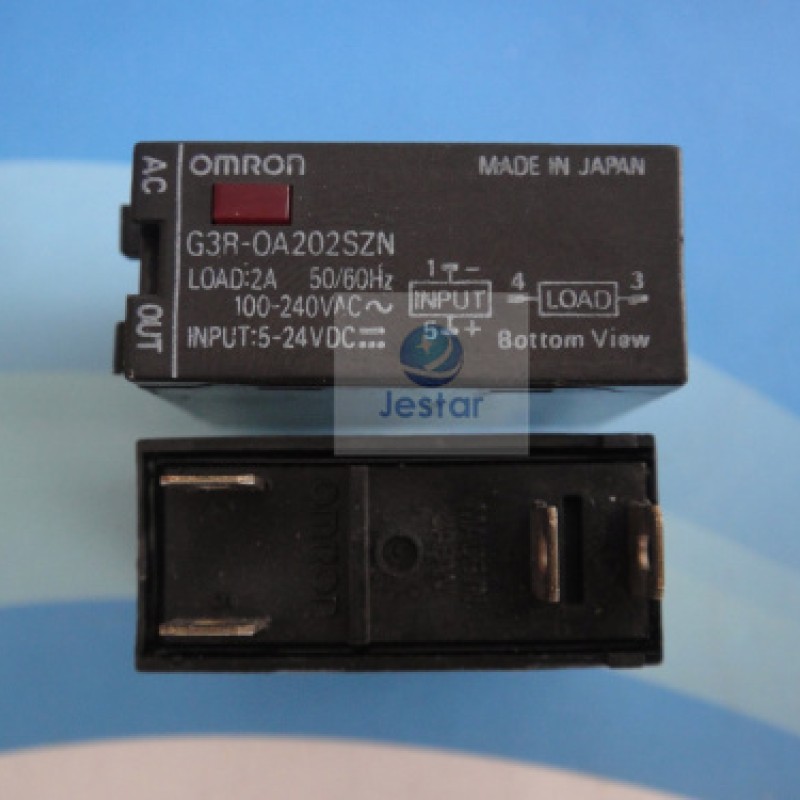

- Model: G3R-OA202SZN
- Weight: 0.02kg
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.
Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.
Product Description?
Mount I/O relays and I/O SSRs freely.
Electric-shock preventive (finger-touch protection) terminal block incorporated conforming to VDE 0160.
Connects to the PC and SBC easily via a connector.
DIN track mounted.
I/O Block conforming to VDE 0160.
Specifications:
Model | Rated | Operating | Input current | Must operate voltage | Must release voltage |
G3R-OA202SZN | 5 to | 4 to | 15 mA max. | 4 VDC max. | 1 VDC min. |
G3R-OA202SLN | |||||
G3R-ODX02SN | 8 mA max. | ||||
G3R-OD201SN |
Output
Model | Load voltage | Load current | Inrush current |
G3R-OA202SZN | 75 to 264 VAC | 0.05 to 2 A | 30 A (60 Hz, 1 cycle) |
G3R-OA202SLN | |||
G3R-ODX02SN | 4 to 60 VDC | 0.01 to 2 A | 8 A (10 ms) |
G3R-OD201SN | 40 to 200 VDC | 0.01 to 1.5 A | 8 A (10 ms) |
Note: The minimum current value is measured at 10°C min.
Characteristics
Input Module
Item | G3R-IAZR1SN | G3R-IDZR1SN | G3R-IDZR1SN-1 |
|
Operate time | 20 ms max. | 0.1 ms max. | 15 ms max. |
|
Release time | 20 ms max. | 0.1 ms max. | 15 ms max. |
|
Response frequency | 10 Hz | 1 kHz | 10 Hz |
|
Output ON voltage drop | 1.6 V max. |
| ||
Leakage current | 5 μA max. |
| ||
Insulation resistance | 100 MΩ min. between input and output |
| ||
Dielectric strength | 4,000 VAC, 50/60 Hz for 1 min between input and output |
| ||
Vibration resistance | 10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude) |
| ||
Shock resistance | 1,000 m/s2 |
| ||
Ambient temperature | Operating: -30°C to 80°C (with no icing) | |||
Approved standards | UL508 File No. E64562 | |||
Ambient humidity | Operating: 45% to 85% |
| ||
Weight | Approx. 18 g |
| ||
