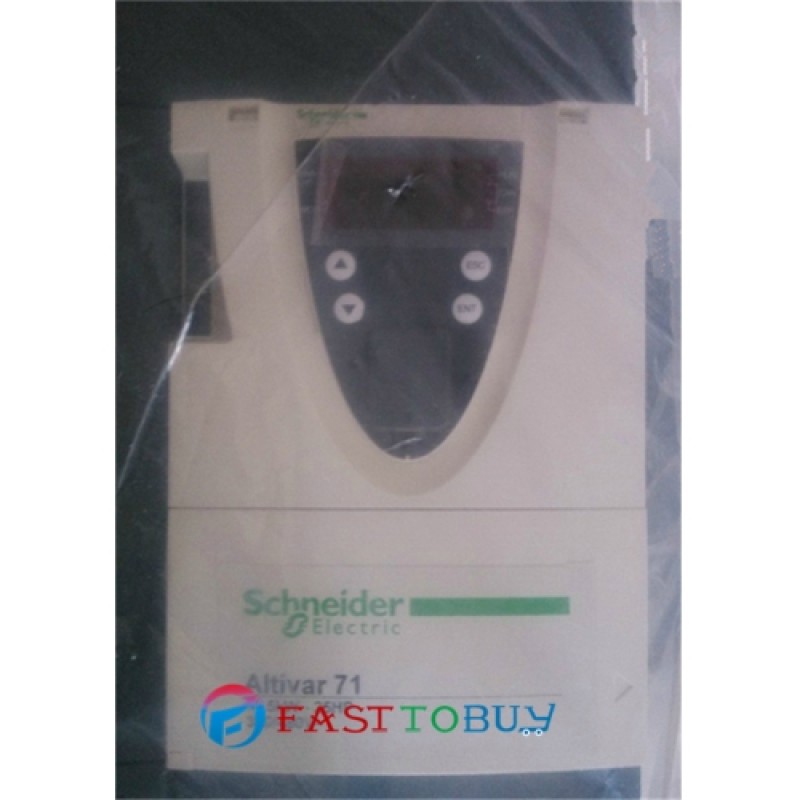

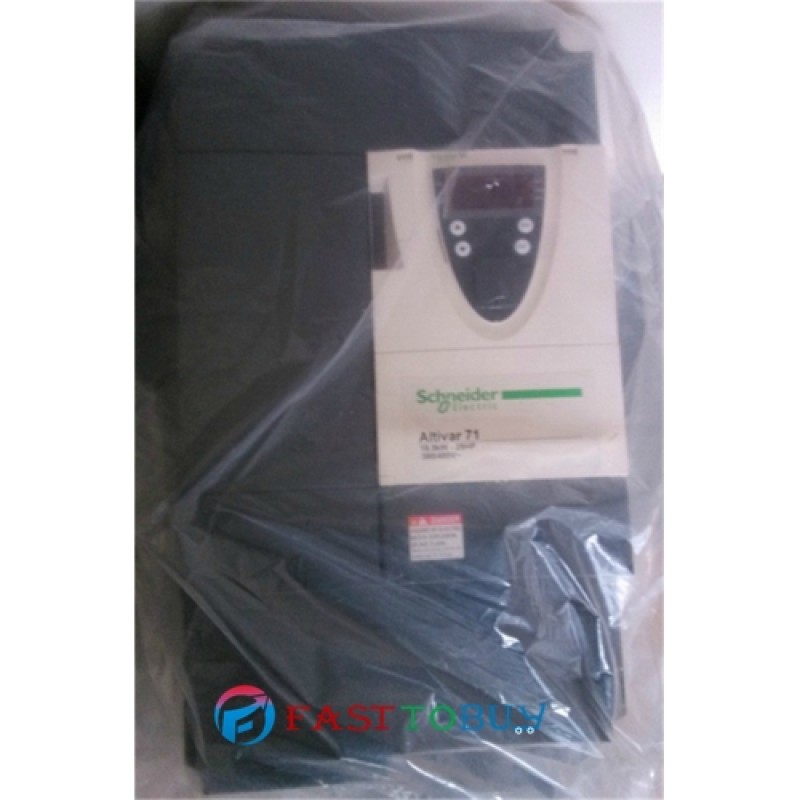

ATV71HD18N4Z VFD Inverter Input 3ph 380V Output 3ph 380~480V 41A 0.1~599Hz 18.5KW 25HP New

ATV71HD18N4Z VFD Inverter Input 3ph 380V Output 3ph 380~480V 41A 0.1~599Hz 18.5KW 25HP New
ATV71HD18N4Z VFD Inverter Input 3ph 380V Output 3ph 380~480V 41A 0.1~599Hz 18.5KW 25HP New
ATV71HD18N4Z VFD Inverter Input 3ph 380V Output 3ph 380~480V 41A 0.1~599Hz 18.5KW 25HP New
ATV71HD18N4Z VFD Inverter Input 3ph 380V Output 3ph 380~480V 41A 0.1~599Hz 18.5KW 25HP New
ATV71HD18N4Z VFD Inverter Input 3ph 380V Output 3ph 380~480V 41A 0.1~599Hz 18.5KW 25HP New
ATV71HD18N4Z VFD Inverter Input 3ph 380V Output 3ph 380~480V 41A 0.1~599Hz 18.5KW 25HP New
ATV71HD18N4Z VFD Inverter Input 3ph 380V Output 3ph 380~480V 41A 0.1~599Hz 18.5KW 25HP New
ATV71HD18N4Z VFD Inverter Input 3ph 380V Output 3ph 380~480V 41A 0.1~599Hz 18.5KW 25HP New
ATV71HD18N4Z VFD Inverter Input 3ph 380V Output 3ph 380~480V 41A 0.1~599Hz 18.5KW 25HP New
ATV71HD18N4Z VFD Inverter  Input 3ph 380V Output 3ph 380~480V 41A 0.1~599Hz 18.5KW 25HP NewATV71HD18... Read More
0 reviews • Write a review
$1,778.00
Ex Tax: $1,778.00
  • Stock: In Stock
  • Model: ATV71HD18N4Z
  • Weight: 25.00kg
Add to Cart
Buy Now Question?
Add to Wish List Compare this Product

1. We typically ship items within three business days after payment is received.
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.

Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.

We accept many payments,include Paypal,Bank Transfer etc
ATS01N209QN Schneider Soft Starter NEW
Quickview
ATS01N209QN Schneider Soft Starter NEW
$190.00
Ex Tax:$190.00
Add to Cart Add to Wish List Compare this Product
ATS01N222QN Schneider Soft Starter NEW
Quickview
ATS01N222QN Schneider Soft Starter NEW
$271.00
Ex Tax:$271.00
Add to Cart Add to Wish List Compare this Product
ATS01N232QN Schneider Soft Starter NEW
Quickview
ATS01N232QN Schneider Soft Starter NEW
$317.00
Ex Tax:$317.00
Add to Cart Add to Wish List Compare this Product
ATS22C14S6U Schneider Soft Starter NEW
Quickview
ATS22C14S6U Schneider Soft Starter NEW
$1,837.00
Ex Tax:$1,837.00
Add to Cart Add to Wish List Compare this Product
ATS22C17Q AST22 Soft Starter 3PH 230~440V 170A New
Quickview
ATS22C17Q AST22 Soft Starter 3PH 230~440V 170A New
$1,922.00
Ex Tax:$1,922.00
Add to Cart Add to Wish List Compare this Product
ATS22C17S6U Schneider Soft Starter NEW
Quickview
ATS22C17S6U Schneider Soft Starter NEW
$2,193.00
Ex Tax:$2,193.00
Add to Cart Add to Wish List Compare this Product
ATS22C21Q AST22 Soft Starter 3PH 230~440V 210A New
Quickview
ATS22C21Q AST22 Soft Starter 3PH 230~440V 210A New
$2,115.00
Ex Tax:$2,115.00
Add to Cart Add to Wish List Compare this Product
ATS22C21S6U Schneider Soft Starter NEW
Quickview
ATS22C21S6U Schneider Soft Starter NEW
$2,412.00
Ex Tax:$2,412.00
Add to Cart Add to Wish List Compare this Product
Tags: ATV71HD18N4Z
ATV71HD18N4Z VFD Inverter  Input 3ph 380V Output 3ph 380~480V 41A 0.1~599Hz 18.5KW 25HP New

ATV71HD18N4Z

Features

*Speed regulation by flux vector control with or without sensor

*Speed range: from 1 to 1 000 in closed loop mode with encoder feedback, from 1 to 100 in open loop mode

*Graphic terminal: plain text, navigation button, configurable function keys, "Simply Start" menu ...

*Protection of motor and of drive

*"Power Removal ", ATEX safety functions

*More than 150 functions available: PID regulator, brake control suited to travelling, hoisting and slewing movements...

*Integrated EMC filter class A

*Integrated Modbus and CANopen

*I/O extension cards, interface cards for encoder

*Communication cards: Fipio, Ethernet, Modbus Plus, Profibus DP, DeviceNet, Uni-Telway, INTERBUS

*Controller Inside programmable card

Benefits

Make way for evolution!

Unique range up to 630 kW, exceptional performance, advanced functions...

Open to all communication networks, applications, users... Altivar 71 provides ingenious solutions for all your particular requirements

Applications

High performance applications (constant torque):

 Material handling

 Hoisting

 Wood machines

 Process machines

 Textile machines

 Packaging

Specifications

Motor

Line supply (input)

Drive (output)

Reference

Power indicated

on plate

Maximum line current

Apparent

power

Maximum prospective

short-circuit current

Nominal

current

In

Max. transient

current for

at 380 V

at 480 V

380V

380V

460V

60 s

2s

kW

HP

A

A

kVA

kA

A

A

A

1.5

2

5.8

5.3

3.8

5

4.1

3.4

6.2

6.8

ATV71HU15N4Z

2.2

3

8.2

7.1

5.4

5

5.8

4.8

8.7

9.6

ATV71HU22N4Z

3

-

10.7

9

7

5

7.8

6.2

11.7

12.9

ATV71HU30N4Z

4

5

14.1

11.5

9.3

5

10.5

7.6

15.8

17.3

ATV71HU40N4Z

5.5

7.5

20.3

17

13.4

22

14.3

11

21.5

23.6

ATV71HU55N4Z

7.5

10

27

22.2

17.8

22

17.6

14

26.4

29

ATV71HU75N4Z

11

15

36.6

30

24.1

22

27.7

21

41.6

45.7

ATV71HD11N4Z

15

20

48

39

31.6

22

33

27

49.5

54.5

ATV71HD15N4Z

18.5

25

45.5

37.5

29.9

22

41

34

61.5

67.7

ATV71HD18N4Z

22

30

50

42

32.9

22

48

40

72

79.2

ATV71HD22N4Z

30

40

66

56

43.4

22

66

52

99

109

ATV71HD30N4Z

37

50

84

69

55.3

22

79

65

118.5

130

ATV71HD37N4Z

45

60

104

85

68.5

22

94

77

141

155

ATV71HD45N4Z

55

75

120

101

79

22

116

96

174

191

ATV71HD55N4Z

75

100

167

137

109.9

22

160

124

240

264

ATV71HD75N4Z

Characteristic

Range of product

Altivar 71

Product or component type

Variable speed drive

Product specific application

Complex, high-power machines

Assembly style

With heat sink

Component name

ATV71

Variant

With integrated 7-segment display terminal

EMC filter

Integrated

Network number of phases

3 phases

Power supply voltage

380...480 V (- 15...10 %)

Motor power kW

11 kW  380...480 V 3 phases

Motor power hp

15 hp  380...480 V 3 phases

Line current

30 A  480 V 3 phases 11 kW / 15 hp

36,6 A  380 V 3 phases 11 kW / 15 hp

Apparent power

24,1 kVA  380 V 3 phases 11 kW / 15 hp

Prospective line Isc

≤ 22 kA , 3 phases

Nominal output current

21 A  4 kHz 460 V 3 phases 11 kW / 15 hp

27.7 A  4 kHz 380 V 3 phases 11 kW / 15 hp

Maximum transient current

41,6 A  60 s 3 phases 11 kW / 15 hp

45,7 A  2 s 3 phases 11 kW / 15 hp

Speed drive output frequency

0...1600 Hz

Nominal switching frequency

4 kHz

Switching frequency

1...16 kHz adjustable

4...16 kHz with derating factor

Asynchronous motor control profile

ENA (Energy adaptation) system for unbalanced loads

Flux vector control (FVC) with sensor (current vector)

Sensorless flux vector control (SFVC) (voltage or current vector)

Voltage/frequency ratio (2 or 5 points)

Type of polarization

No impedance  Modbus
