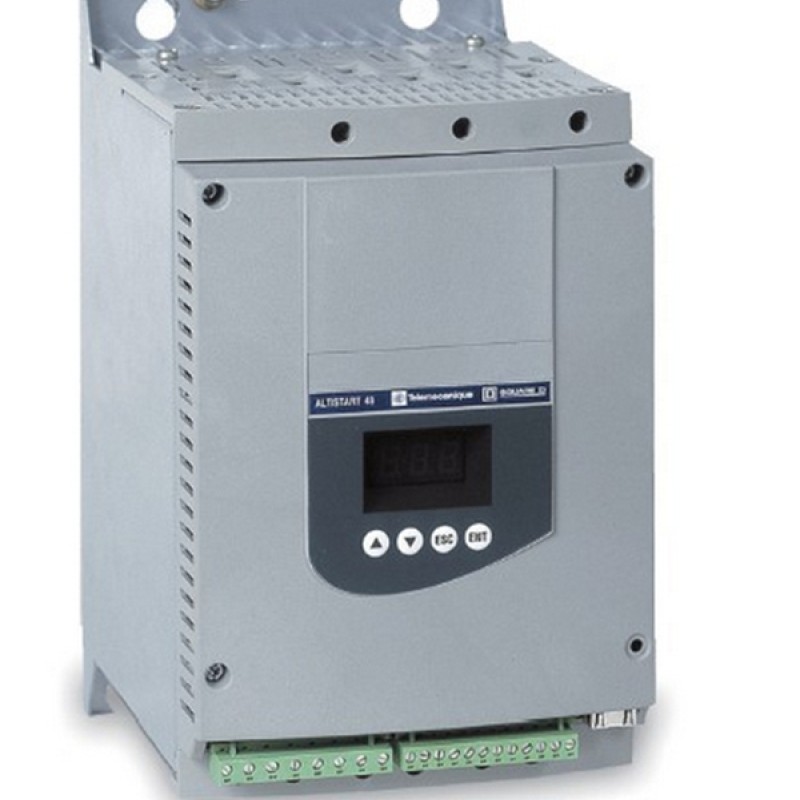

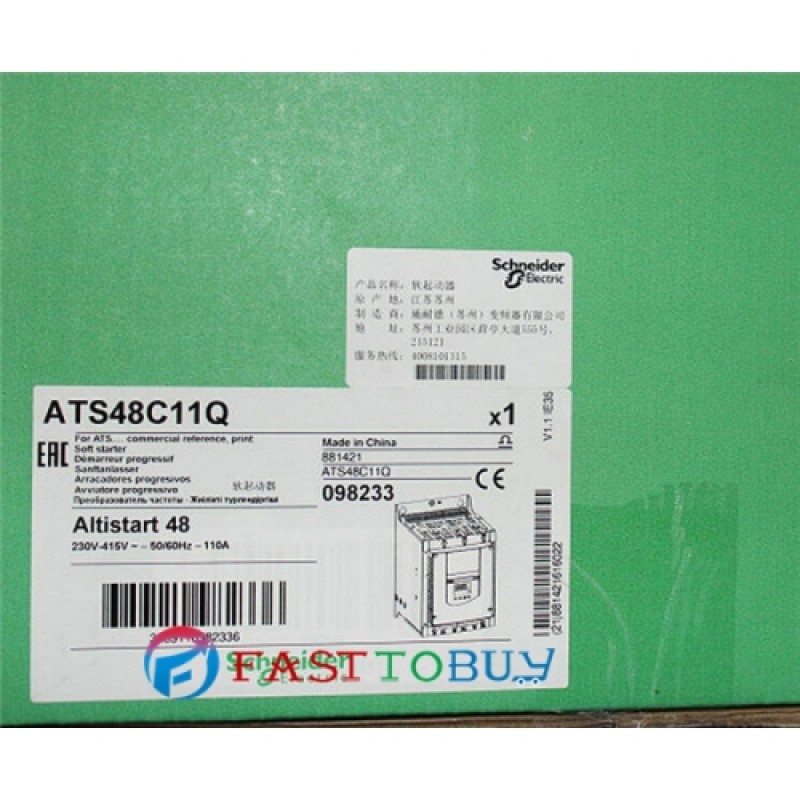

ATS48C11Q ATS48 Soft Starter 230~415 V 110A New

Range of product

Altistart 48

Product or component type

Soft starter

Product destination

Asynchronous motors

Product specific application

Pumping and ventilation machine

Severe and standard applications

Component name

ATS48

Power supply voltage

230...415 V (- 15...10 %)

Motor power kW

45 kW at 400 V (connection in the motor supply line)for severe applications

45 kW at 230 V (connection to the motor delta terminals) for severe applications

30 kW at 230 V (connection in the motor supply line)for standard applications

22 kW at 230 V (connection in the motor supply line)for severe applications

90 kW at 400 V (connection to the motor delta terminals) for standard applications

75 kW at 400 V (connection to the motor delta terminals) for severe applications

55 kW at 400 V (connection in the motor supply line)for standard applications

55 kW at 230 V (connection to the motor delta terminals) for standard applications

Power dissipation in W

322 W for standard applications

252 W for severe applications

Utilisation category

AC-53A

Type of start

Start with torque control (current limited to 5 In)

Icl nominal current

88 A (connection in the motor supply line)for severe applications

191A (connection to the motor delta terminals)for standard applications

152A (connection to the motor delta terminals)for severe applications

110A (connection in the motor supply line)for standard applications

Product weight

8.3 kg
