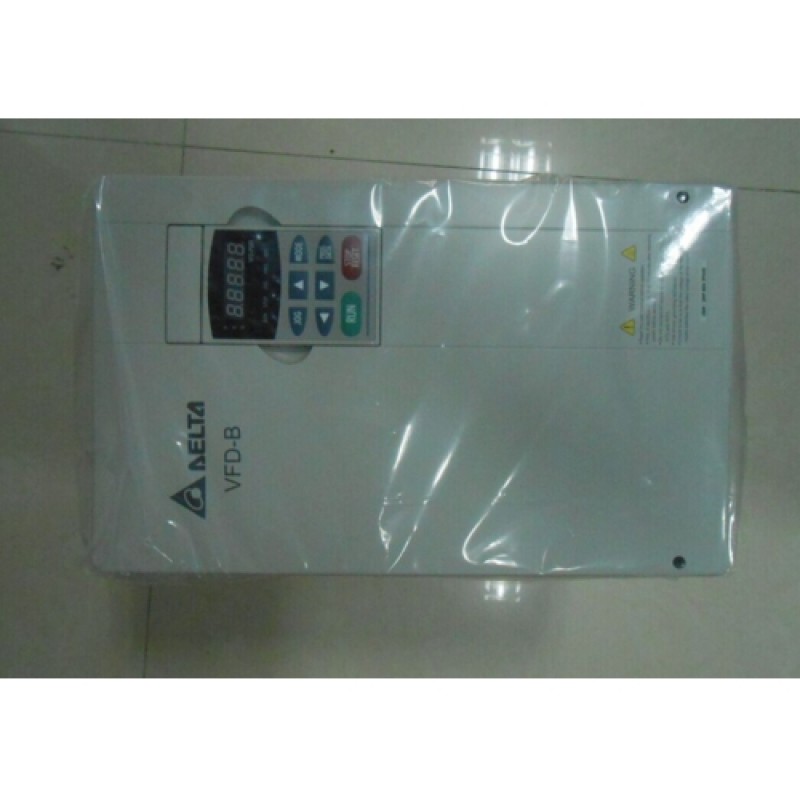

Delta Inverter VFD drive VFD150B43P-C1 3Phase 380V 15KW 20HP 0.1~400Hz Ceramic equipment

Delta Inverter VFD drive VFD150B43P-C1 3Phase 380V 15KW 20HP 0.1~400Hz Ceramic equipment
Delta Inverter VFD drive VFD150B43P-C1 3Phase 380V 15KW 20HP 0.1~400Hz Ceramic equipment
Delta Inverter VFD drive VFD150B43P-C1 3Phase 380V 15KW 20HP 0.1~400Hz Ceramic equipment
Delta Inverter VFD drive VFD150B43P-C1 3Phase 380V 15KW 20HP 0.1~400Hz Ceramic equipment
Delta Inverter VFD drive VFD150B43P-C1 3Phase 380V 15KW 20HP 0.1~400Hz Ceramic equipment
VFD150B43P-C1  FeaturesSensorless Open and Closed Loop Vector AC Drive. The VFD-B series represents ... Read More
$1,284.00
Ex Tax: $1,284.00
  • Stock: In Stock
  • Model: VFD150B43P-C1
  • Weight: 9.00kg
1. We typically ship items within three business days after payment is received.
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.

Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.
We accept many payments,include Paypal,Bank Transfer etc
VFD150B43P-C1






Features

Sensorless Open and Closed Loop Vector AC Drive. The VFD-B series represents Delta's NEMA1 general purpose AC drive. The VFD-B series drive is rated to provide constant torque, featuring open and closed loop vector control. Delta offers an optional 2000 Hz high speed output that can be factory programmed at the customer's request.

Specifications

?Output frequency 0.1 ~ 400 Hz

?Adjustable V/f curve and vector control

?Master/Auxiliary and 1st / 2nd frequency source selectable

?16-step speed control and 15-step preset speed process control

?Built-in PID feedback control

?Auto torque boost & slip compensation

?Built-in MODBUS communication, baud rate up to 38400 bps

?Support communication module (DN-02, LN-01, PD-01)

Standard Specifications

Voltage Class

460V Class

Model Number VFD-XXXBXP

022

037

055

075

110

150

185

220

300

370

450

Max. Applicable Motor Output (kW)

2.2

3.7

5.5

7.5

11

15

18.5

22

30

37

45

Max. Applicable Motor Output (hp)

3.0

5.0

7.5

10

15

20

25

30

40

50

60

Output  for V/f

Control

Rated Output Capacity (kVA)

5.2

6.5

10

14

18

25

29

34

46

56

69

Rated Output Current (A)

5.5

8.5

13

18

24

32

38

45

60

73

91

Maximum Output Voltage (V)

3-phase Proportional to Input Voltage

Output Frequency (Hz)

0.1~400Hz

Carrier Frequency (kHz)

1~15

1~9

1~6

Output for Vector

Control

Rated Output Capacity (kVA)

4.2

6.5

10

14

18

25

29

34

46

56

69

Rated Output Current (A)

5.5

8.5

8.5

13

18

24

32

38

45

60

73

Maximum Output Voltage (V)

3-phase Proportional to Input Voltage

Output Frequency (Hz)

0.1~400Hz

Carrier Frequency (kHz)



1~15

1~9

Input Rating

Rated Input

Current (A)



V/f  control

5.9

11.2

14

19

25

32

39

49

60

73

90

Vector control

5.9

11.2

11.2

14

19

25

32

39

49

60

73

Rated

Voltage

3-phase 380 to 480 V

Voltage Tolerance

±10%(342-528 V)

Frequency Tolerance

±5%(47-63 Hz)

Standard Wiring Diagram
