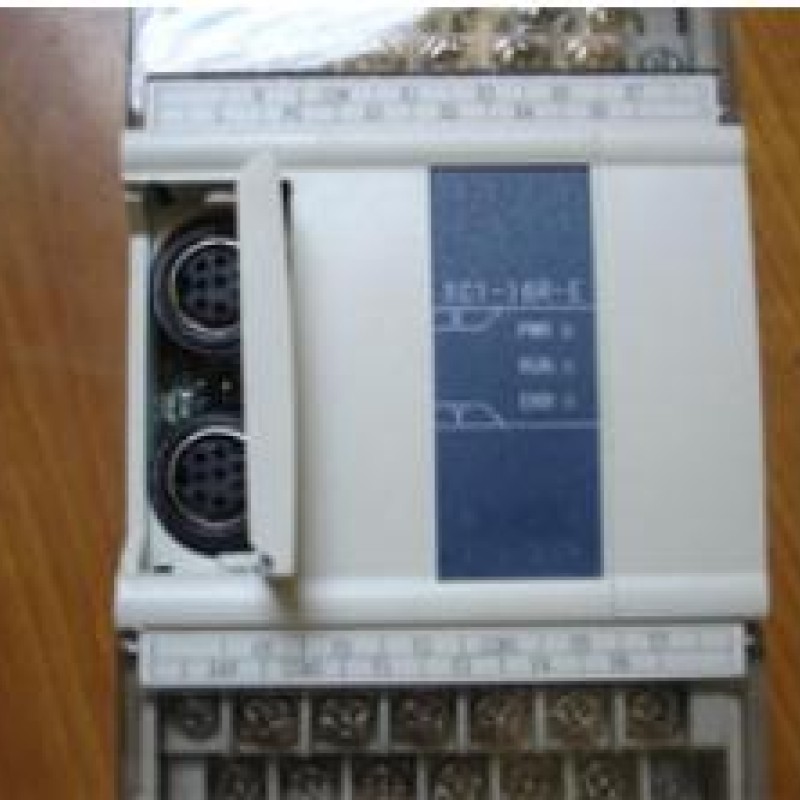

PLC DC24V 8 DI 8 DO Relay 1 COM XC1-16R-C XINJE

Item

Specification

Insulation Voltage

Above DC 500V 2MΩ

Noise Resistance

1000V 1uS pulse for 1 minute

Environment Temperature

0 °C ~60 °C

Ambient Humidity

5%~95%

COM 1

RS-232, be connected to host machine or HMI for programming or debugging

COM 2

RS-232 or RS-485, network or connect to intelligent instrument, inverter, etc.

Installation

M3 screw fixed or DIN46277 (35mm width) guide rail installation

Grounding

The third type grounding (Never perform common grounding with strong power system)

Item

Specification

Program Operation Mode

Circulation scanning mode, timing scanning mode

Program Mode

Instructions and ladder chart

Dispose Speed

0.5us

Power Failure Holding

FlashROM

User Program’s Capacity

32K

I/O Points

8 input points, 8 output points

Output Format

Relay

Power Supply

AC220V/DC24V

Interior Coil’s Points (M)

448 points

Timer(T)

Points

80 points

Specification

100mS timer: set time 0.1~3276.7 seconds
10mS timer: set time 0.01~327.67 seconds
1mS timer: set time 0.001~32.767 seconds

Counter(C)

Points

48 Points

Specification

16 bits counter: Set value K0~32767
32 bits counter: Set value K0~2147483647

Data Register(D)

288 characters

FlashROM Register(FD)

510 characters

High-speed Count Format

-

Timing Scanning Interval Setting

1~99mS

Password Protection

6 characters ASCII

Self-diagnose Function

Power on self-diagnose, monitor timer, grammar check
