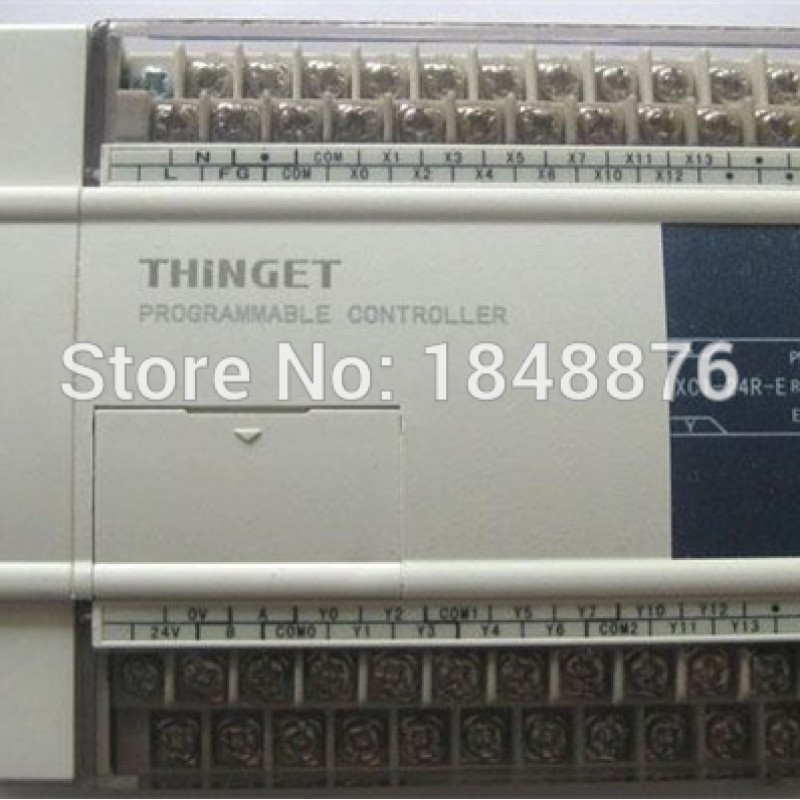

PLC DC24V 12 DI 12 DO Relay 2 COM XC1-24R-C XINJE

XC1-24R/T-E/C

General Specifications

Item

Specification

Insulation Voltage

Above DC 500V 2MΩ

Noise Resistance

1000V 1uS pulse for 1 minute

Environment Temperature

0?~60?

Ambient Humidity

5%~95%

COM 1

RS-232, be connected to host machine or HMI for programming or debugging

COM 2

RS-232 or RS-485?network or connect to intelligent instrument, inverter, etc.

Installation

M3 screw fixed or DIN46277 (35mm width) guide rail installation

Grounding

The third type grounding (Never perform common grounding with strong power system)

Functional Specification

Item

Specification

Program Operation Mode

Circulation scanning mode, timing scanning mode

Program Mode

Instructions and ladder chart

Dispose Speed

0.5us

Power Failure Holding

Flash ROM

User Program’s Capacity

32K

I/O Points

12 input points?12 output points

Output Format

Relay

Power Supply

AC220V

Interior Coil’s Points (M)

448 points

Timer?T?

Points

80 points

Specification

100mS timer?set time 0.1~3276.7 seconds

10mS timer?set time 0.01~327.67 seconds

1mS timer?set time 0.001~32.767 seconds

Counter?C?

Points

48 Points

Specification

16 bits counter:?Set value K0~32767

32 bits counter?Set value K0~2147483647

Data Register?D?

288 characters

Flash ROM Register?FD?

510 characters

High-speed Count Format

-

Timing Scanning Interval Setting

1~99mS

Password Protection

6 characters ASCII

Self-diagnose Function

Power on self-diagnose, monitor timer, grammar check
