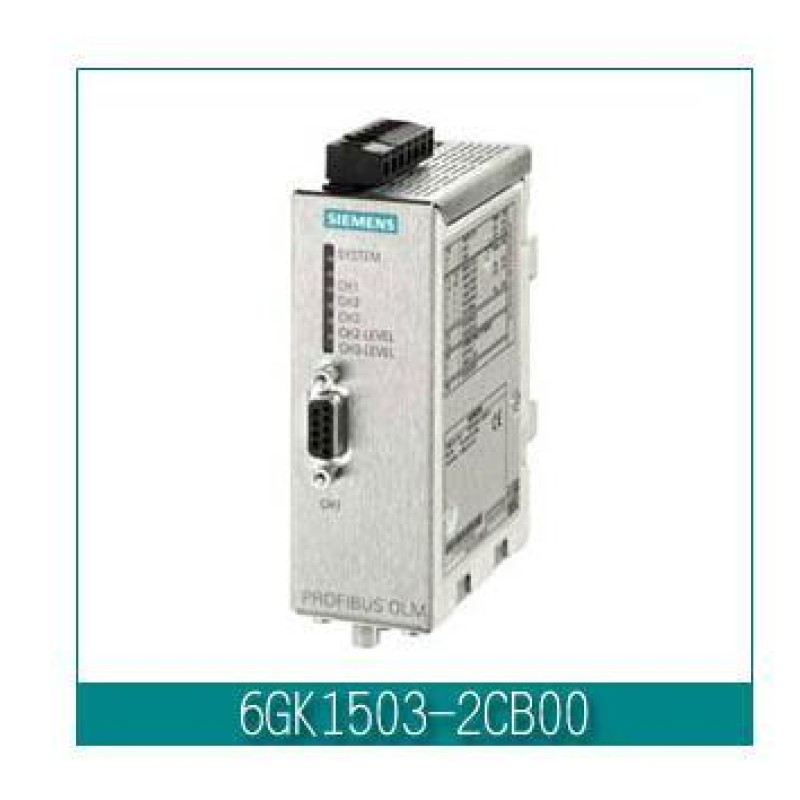

6GK1503-2CB00/6GK Siemens Modul 1503-2CB00 New in box

Siemens Modul 6GK1503-2CB00/6GK 1503-2CB00
Product Description:
For Use: 6GK1503-2CB00, Profibus OLM/G11 - V4.0 Optical Link Module
Part Type: OLM/G11 - V4.0
Manufacturer: Siemens
System Name: Siemens S7
System SubType: Simatic Net
Additional Information:
Optical link module with 1 RS485 and 1 glass fiber optic interfaces. Version V4.0
Specifications:
Transmission rate
Transfer rate
with PROFIBUS 9.6 kbit/s…12 Mbit/s
With PROFIBUS PA 45.45 kbit/s
Interfaces
Number of electrical/optical connections / for network components or terminal equipment / maximum 2
Number of electrical connections
for network components and terminal equipment 1
for measuring instrument 1 1
for alarm contact 1
for power supply 1
for redundant power supply 1
Number of optical interfaces / for optical waveguide 1
Optical data
Damping ratio / of FOC transmission link
for glass FOC with 50/125 µm / at 3 dB/km / maximum 10 dB
for glass FOC with 62.5/125 µm
at 3.5 dB/km / maximum 12 dB
Signal delay time in bit time 6.5 bit
Injectable optical power relating to 1 mW
for glass FOC with 50/125 µm / at 3 dB/km -16 dB
for glass FOC with 62.5/125 µm
at 3.5 dB/km -13 dB
Optical sensitivity relating to 1 mW
for glass FOC with 50/125 µm / at 3 dB/km -28 dB
for glass FOC with 62.5/125 µm
at 3.5 dB/km -28 dB
Wavelength
[nicht versorgt - bei Glas-LWL mit 50/125 µm] / [nicht versorgt - kompatibel mit Schnittstelle] / [nicht versorgt - bei 3 dB/km] 860 nm
[nicht versorgt - bei Glas-LWL mit 62,5/125 µm] / [nicht versorgt - kompatibel mit Schnittstelle]
[nicht versorgt - bei 3,5 dB/km] 860 nm
Cable length
as glass fibre with 50/125 µm / [nicht versorgt - bei 3 dB/km] / [nicht versorgt - maximal] 3 km
[nicht versorgt - bei Glas-LWL mit 62,5/125 µm]
[nicht versorgt - bei 3,5 dB/km] / [nicht versorgt - maximal] 3 km
Inputs/outputs
Operating voltage / of signaling contacts / at DC / rated value 24 V
Operating current / of signaling contacts / at DC / maximum 0.1 A
Supply voltage, current consumption, power loss
Type of voltage / of supply voltage DC
Supply voltage / for DC
rated value 24 V
minimum 18.8 V
maximum 28.8 V
Product component / fusing at power supply input Yes
Consumed current / At 24 V / with DC / maximum 0.2 A
Permitted ambient conditions
Ambient temperature
during operating 0…60 °C
during storage -40…+70 °C
during transport -40…+70 °C
Relative humidity
at 25 °C / without condensation / during operating / maximum 95 %
Protection class IP IP40
Design, dimensions and weight
Width 39.5 mm
Height 112 mm
Depth 74.5 mm
Net weight 340 g
Type of mounting
35 mm DIN rail mounting Yes
wall mounting Yes
Product properties, functions, components / general
Product function / Ring redundancy Yes
Standards, specifications, approvals
Verification of suitability
CE mark Yes
C-Tick Yes
Marine classification association
American Bureau of Shipping Europe Ltd. (ABS) Yes
Bureau Veritas (BV) Yes
Det Norske Veritas (DNV) Yes
Germanische Lloyd (GL) Yes
Lloyds Register of Shipping (LRS) Yes
Nippon Kaiji Kyokai (NK) Yes
