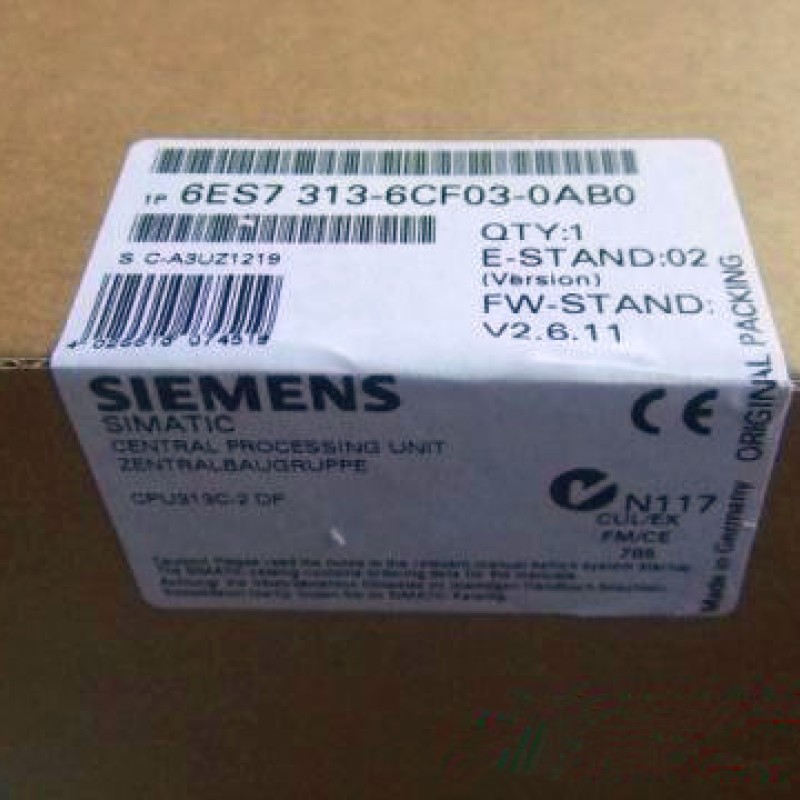

6ES7313-6CF03-0AB0 SIEMENS CPU Module New

General information

Hardware product version

01

Firmware version

V2.6

Engineering with

Programming package

STEP 7 V5.3 SP2 or higher with HW update

Supply voltage

24 V DC

Yes

permissible range, lower limit (DC)

20.4 V

permissible range, upper limit (DC)

28.8 V

External protection for supply cables (recommendation)

Miniature circuit breaker, type C; min 2 A; miniature circuit breaker type B, min. 4 A

Load voltage L+

Rated value (DC)

24 V

permissible range, lower limit (DC)

20.4 V

permissible range, upper limit (DC)

28.8 V

Digital inputs

Load voltage L+

Rated value (DC)

24 V

Reverse polarity protection

Yes

Digital outputs

Load voltage L+

Rated value (DC)

24 V

Reverse polarity protection

No

Input current

Current consumption (rated value)

900 mA

Current consumption (in no-load operation), typ.

100 mA

Inrush current, typ.

11 A

I瞭

0.7 A卜s

from supply voltage L+, max.

900 mA

Digital inputs

from load voltage L+ (without load), max.

70 mA

Digital outputs

from load voltage L+, max.

100 mA

Power losses

Power loss, typ.

10 W

Memory

Work memory

integrated

64 kbyte

expandable

No

Load memory

pluggable (MMC)

Yes

pluggable (MMC), max.

8 Mbyte

Data management on MMC (after last programming), min.

10 a

Backup

present

Yes; Guaranteed by MMC (maintenance-free)

without battery

Yes; Program and data

CPU processing times

for bit operations, min.

0.1 祍

for bit operations, max.

0.2 祍

for word operations, min.

0.2 祍

for fixed point arithmetic, min.

2 祍

for floating point arithmetic, min.

3 祍

CPU-blocks

Number of blocks (total)

1024; (DBs, FCs, FBs); the maximum number of loadable blocks can be reduced by the MMC used.

DB

Number, max.

511; Number range: 1 to 511

Size, max.

16 kbyte

FB

Number, max.

1024; Number range: 0 to 2047

Size, max.

16 kbyte

FC

Number, max.

1024; Number range: 0 to 2047

Size, max.

16 kbyte

OB

Size, max.

16 kbyte

Number of free cycle OBs

1; OB 1

Number of time alarm OBs

1; OB 10

Number of delay alarm OBs

1; OB 20

Number of time interrupt OBs

1; OB 35

Number of process alarm OBs

1; OB 40

Number of DPV1 alarm OBs

3; OB 55, 56, 57

Number of startup OBs

1; OB 100

Number of asynchronous error OBs

5; OB 80, 82, 85, 86, 87

Number of synchronous error OBs

2; OB 121, 122

Nesting depth

per priority class

8

additional within an error OB

4

Counters, timers and their retentivity

S7 counter

Number

256

of which retentive without battery

adjustable

Yes

lower limit

0

upper limit

255

preset

8

Retentivity

adjustable

Yes

lower limit

0

upper limit

255

preset

8

Counting range

lower limit

0

upper limit

999
