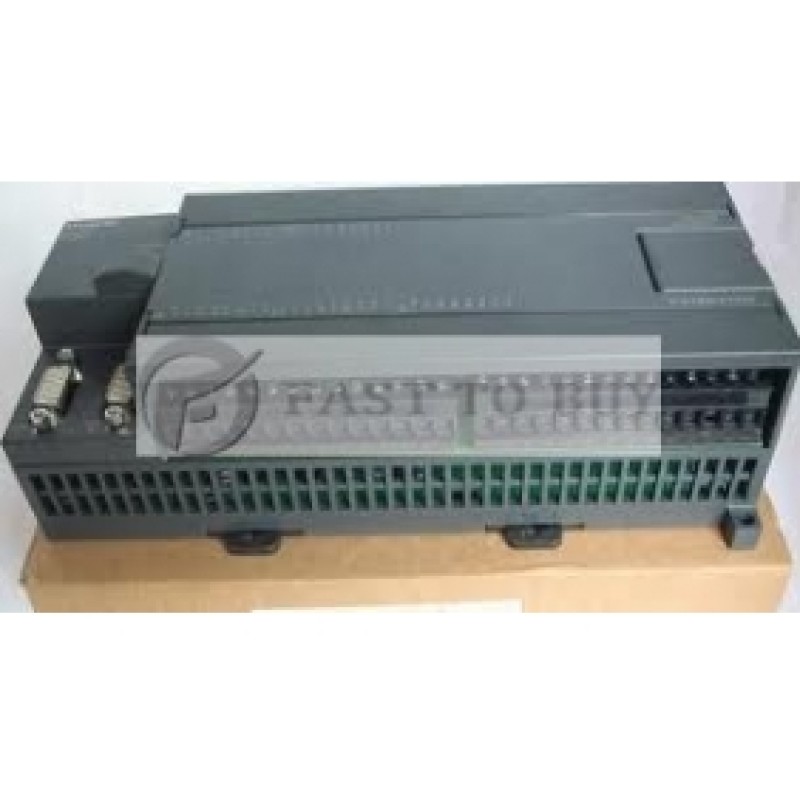

6ES7133-0BN11-0XB0 SIEMENS ELECTRONIC MODULE FOR ET 200B New

Hardware configuration

Rack

Required terminal block

TB2/DC, TB2-4/DC, TB4/DC, TB4-4/DC

Digital inputs

Number/binary inputs

24

Input voltage

Rated value, DC

24 V

for signal "0"

-30 to +5 V

for signal "1"

13 to 30 V

Input current

for signal "1", typ.

4 mA

Input delay (for rated value of input voltage)

for standard inputs

at "0" to "1", max.

0.2 ms

Cable length

Cable length unshielded, max.

100 m

Digital outputs

Number/binary outputs

8

Functionality/short-circuit strength

Yes; Electronic

Output voltage

Rated value (DC)

24 V

for signal "0", max.

2 V; Idling

for signal "1", min.

UE -3 V

Output current

for signal "1" permissible range for 0 to 60 °C, min.

0.5 A; in one group

for signal "0" residual current, max.

1 mA

Switching frequency

with resistive load, max.

100 Hz

with inductive load, max.

0.5 Hz

on lamp load, max.

8 Hz

Aggregate current of outputs (per group)

all mounting positions

up to 60 °C, max.

2 A

Cable length

Cable length unshielded, max.

100 m

Interfaces

PROFIBUS DP

Transmission rate, max.

12 Mbit/s

Galvanic isolation

between electronic block and PROFIBUS DP

Yes

Galvanic isolation digital inputs

Galvanic isolation digital inputs

No

Galvanic isolation digital outputs

Galvanic isolation digital outputs

Yes

Degree and class of protection

IP20

Yes

Ambient conditions

Operating temperature

horizontal installation, min.

0 °C

horizontal installation, max.

60 °C; 40°C for other mountings

Air pressure

permissible range, min.

795 hPa

permissible range, max.

1080 hPa

Relative humidity

Operation, min.

15 %

Operation, max.

95 %; RH class 2 in accordance with IEC 1131-2

Vibrations

Operation, checked according to IEC 60068-2-6

Yes; IEC 68, Part 2-6; 10 to 57 Hz; (constant amplitude 0.075 mm); 57 to 150 Hz; (constant acceleration 1 g)

Shock test

checked according to IEC 60068-2-27

Yes; IEC 68, Part 2-27; half-sine, 15 g, 11 ms

Connection method

Inputs/outputs

Screw-type and spring-loaded terminals, permanent wiring; 3 and 4-wire connection
