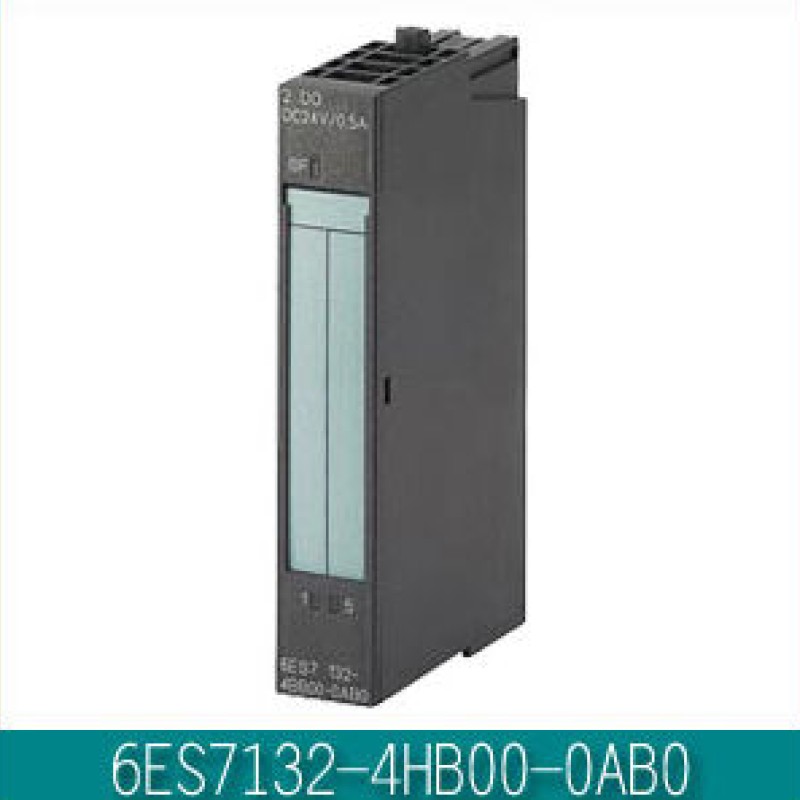

6ES7132-4HB00-0AB0 SIEMENS ELECTRONIC MODULE FOR ET 200S New

Supply voltage

Load voltage L+

Rated value (DC)

24 V; From power module

Reverse polarity protection

Yes

Input current

from load voltage L+ (without load), max.

30 mA

from backplane bus 3.3 V DC, max.

10 mA

Power losses

Power loss, typ.

0.6 W

Address area

Address space per module

with packing

2 bit

without packing

1 byte

Digital outputs

Number/binary outputs

2

Functionality/short-circuit strength

No; external fuse, max. 6 A quick-acting

Limitation of inductive shutdown voltage to

No

Controlling a digital input

Yes

Output current

for signal "1" minimum load current

8 mA

Parallel switching of 2 outputs

for increased power

No

for redundant control of a load

No

Switching frequency

with resistive load, max.

2 Hz

with inductive load, max.

0.5 Hz

on lamp load, max.

2 Hz

Relay outputs

Switching capacity of contacts

at ohmic load, up to 50 °C, max.

5 A

at ohmic load, up to 60 °C, max.

4 A

Thermal continuous current, max.

5 A

Cable length

Cable length, shielded, max.

1000 m

Cable length unshielded, max.

600 m

Isochronous mode

Isochronous operation (application synchronized up to terminal)

No

Interrupts/diagnostics/status information

Diagnostic messages

Diagnostic functions

No

Diagnostics indication LED

Status indicator digital output (green)

Yes

Parameter

Remark

3 bytes

Behavior on CPU/Master STOP, channel-wise

Substitute a value/keep last value, 0/1

Galvanic isolation

Galvanic isolation digital outputs

between the channels

Yes

between the channels and the backplane bus

Yes

between the channels and the load voltage L+

Yes

Isolation

tested with

Channels against backplane bus and load voltage L+

1500 V AC

Load voltage L+ against backplane bus

500 V DC

Dimensions

Width

15 mm

Height

81 mm

Depth

52 mm

Weight

Weight, approx.

50 g
