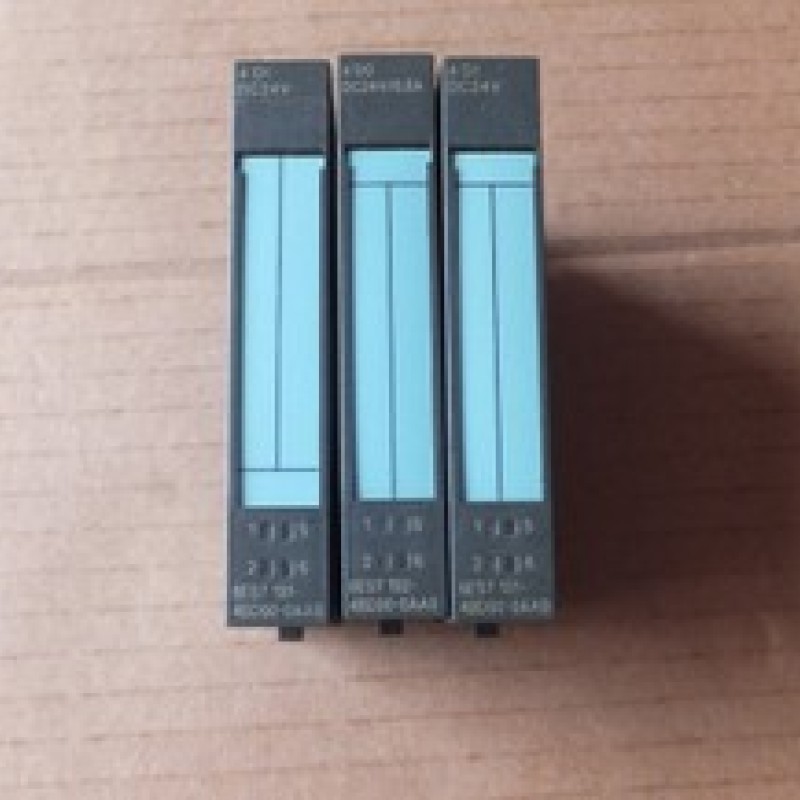

6ES7131-4BD00-0AA0 SIEMENS ELECTRONIC MODULE FOR ET 200S New

Supply voltage

24 V DC

Yes; From power module

Reverse polarity protection

Yes

Input current

from backplane bus 3.3 V DC, max.

10 mA

from supply voltage L+, max.

Dependent on encoder

Encoder supply

Output voltage

min. L+ (-0.5 V), under load

Output current, rated value

500 mA

Output current, permissible range

0 to 500 mA

Power losses

Power loss, typ.

0.7 W

Address area

Address space per module

with packing

4 bit

without packing

1 byte

Digital inputs

Number/binary inputs

4

Input characteristic curve acc. to IEC 61131, Type 1

Yes

Input voltage

Rated value, DC

24 V

for signal "0"

-30 to +5 V

for signal "1"

15 to 30 V

Input current

for signal "1", typ.

7 mA; at 24 V

Input delay (for rated value of input voltage)

for standard inputs

Parameterizable

No

at "0" to "1", min.

2 ms; typically 3 ms

at "0" to "1", max.

4.5 ms

at "1" to "0", min.

2 ms; typically 3 ms

at "1" to "0", max.

4.5 ms

Cable length

Cable length, shielded, max.

1000 m

Cable length unshielded, max.

600 m

Encoder

Connectable encoders

2-wire sensor

Yes

Permissible quiescent current (2-wire sensor), max.

1.5 mA

Interrupts/diagnostics/status information

Diagnostic messages

Diagnostic functions

No

Diagnostics indication LED

Status indicator digital input (green)

Yes

Galvanic isolation

Galvanic isolation digital inputs

between the channels

No

between the channels and the backplane bus

Yes

Permissible potential difference

between different circuits

75 VDC / 60 VAC

Isolation

Isolation checked with

500 V DC

Dimensions

Width

15 mm

Height

81 mm

Depth

52 mm

Weight

Weight, approx.

35 g
