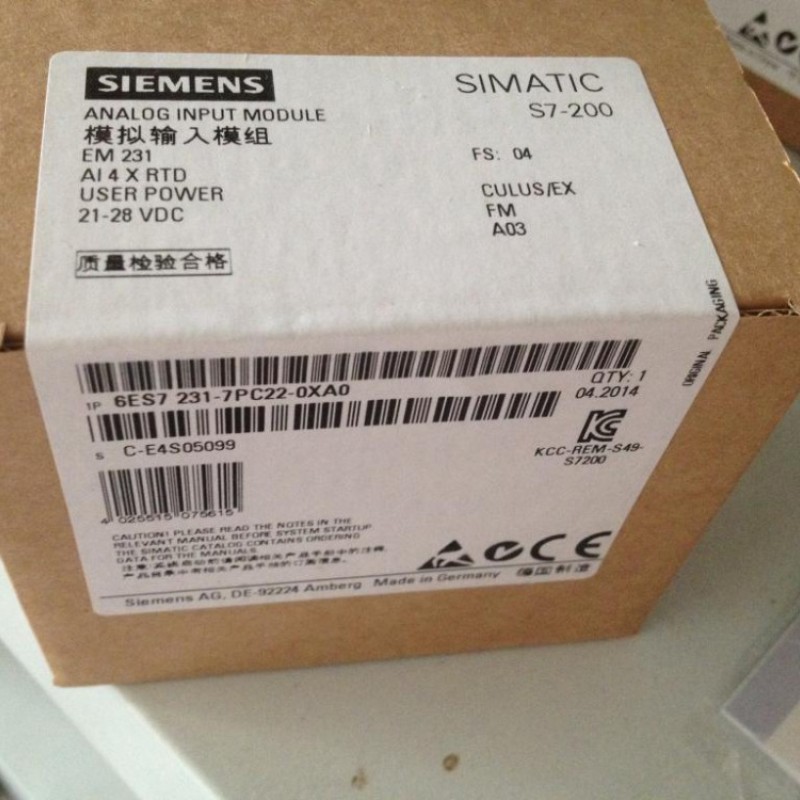

231-7PC22-0XA0 Siemens PLC 6ES7 New in box

Siemens PLC 6ES7 231-7PC22-0XA0
Product Description:
 The S7 brings to the user a powerful solution to a host of control applications, which is easy to adapt and expand the system. The S7 is a family of PLC’s which allows the user to tailor their selection of components which best suits their requirements, and is the long term successor to the highly successful S5 range. Whatever the S5 can do, the S7 can do more quickly and more easily.,The 3rd generation of S7-200 now builds on the success of the original range and exploits new CPU’s in order to produce even faster and more powerful range of PLC's. The range of CPU's available has been increased with the introduction of the new 224XP, as has the range of digital, analogue and communications expansion modules.,For the faster type of application real time control is easily achieved by use of the comprehensive range of built-in interrupts. Timed, Communication, High Speed Counter, High Speed Pulse Output, and hardware interrupts are all available, and the implementation of a priority table means that all the interrupts can work simultaneously.,Communications with S7-200 is built in. Inter PLC communications is achieved using two wire network which can be up to 1200 meters and can have up to 126 nodes. In "Freeport" mode the PLC's RS-485 port runs in free ASC11 mode making it possible to communicate with other devices.,In line with Siemens objective to make the programming of S7-200 as user friendly as possible MicroWin programming software has been further improved. These improvements all help minimise program development time. This has been achieved by including more and improving existing "wizards". These help program developers with the more routine/complex parts of their programs, e.g. TD200 configuration, PID loop configuration, High Speed Counter configuration, etc. Inclusion of context sensitive help also means that all the information required is at the users fingertips.
New CPU hardware support provides the option to turn off run mode edit to obtain more program memoryCPU 224XP supports onboard analogue I/O and two communication portsCPU 226 includes additional input filters and pulse catch facility0.22μs processing time per instruction
Modular Expansion up to 256 total I/O (except S7-221)Powerful Instruction Set, and Real Time performanceProgramming via RS-485 comms portAll models have EEPROM memories for user program storage2 or 4 x 30kHz pulse train outputs (dc powered models only )
Specifications:
Description  EM 231 Analog Input RTD, 4 Inputs
Order Number  6ES7 231-7PC22-0XA0
Dimensions (W x H x D)  71.2 mm x 80 mm x 62 mm
Weight  210 g
Dissipation  1.8 W
VDC requirements   +5 VDC    + 24 V  87 mA 60 mA
Number of inputs  4
Removable connector  no
Isolation    Field to logic    Field to 24 VDC    24 VDC to logic  500 VAC 500 VAC 500 VAC
Common mode input range(input channel to input channel)  0
Common mode rejection  > 120 dB at 120 VAC
Input type  Module ground referenced RTD (2, 3, or 4 wire connections)
Input ranges1  RTD types (select one per module): platinum (Pt), copper (Cu), nickel (Ni), or Resistance, 14 additional GOST types. See page 3 for available RTD types.
Input resolution    Temperature    Resistance  0.1° C/0.1° F 15 bits plus sign resistive
Measuring Principle  Sigma-delta
Module update time:  All channels  810 mS (1400 ms for Pt10000)
Wire length  100 meters to sensor max.
Wire loop resistance  20 Ω, 2.7 Ω for 10 Ω Cu and Pt RTDs
Suppression of interference  80 dB at 50 Hz/60 Hz/400 Hz
Data word format  Resistance: 0 to +27648
Maximum sensor dissipation  1m W
Input impedance  ≥ 10 MΩ
Maximum input voltage  30 VDC
Input filter attenuation  -3 db at 21 kHz
Basic error  0.1% FS (resistance)
Repeatability  0.05% FS
LED indicator  2 (External 24 VDC present and System Fail)
24 VDC supply voltage range  20.4 to 28.8 VDC (Class 2, Limited Power, or sensor power from PLC)
The input range selection (temperature, voltage or resistance) applies to all channels on the module.
