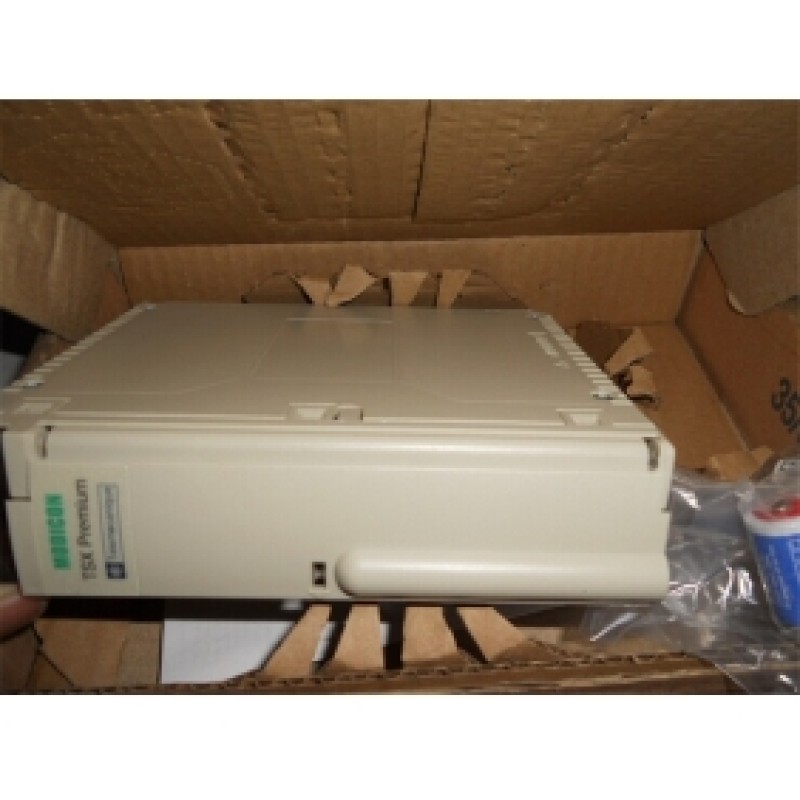

TSXPSY2600M Premium PLC Power supply module

Commercial Status

Commercialised

Range of product

Modicon Premium Automation platform

Product or component type

Power supply module

Primary voltage

100...240 V AC 85...264 V

Network frequency

50/60 Hz

Network frequency limits

47...63 Hz

Power supply input current

500 mA 100 V
300 mA 240 V

Inrush current

75 A 240 V
37 A 100 V

I²t on activation

2.6 A².s 240 V
0.63 A².s 100 V

It on activation

0.067 A.s 240 V
0.034 A.s 100 V

Protection type

Short-circuit protection secondary circuit
Overvoltage protection secondary circuit
Overload protection secondary circuit
Internal fuse 4 A 5 x 20 mm time-delayed primary circuit

Total useful secondary power

26 W

Secondary power

25 W 5 V DC
15 W 24 V DC

Current at secondary voltage

5 A 5 V DC
0.6 A 24 V DC relay power supply
0.5 A 24 V DC sensor power supply

Insulation resistance

>= 100 MOhm primary/secondary
>= 100 MOhm primary/ground

Marking

CE

Local signalling

1 LED red battery fault (BAT)
1 LED green presence of voltages (OK)
1 LED green presence of sensor voltage (24V)

Module format

Standard

Product weight

0.51 kg

Immunity to microbreaks

<= 10 ms

Dielectric strength

2000 V primary/secondary
2000 V primary/earth

Standards

73/23/EEC
89/336/EEC
92/31/EEC
93/68/EEC
CSA C22.2 No 142
IEC 61131-2
UL 508
CSA C22.2 No 213 Class I Division 2 Group A
CSA C22.2 No 213 Class I Division 2 Group B
CSA C22.2 No 213 Class I Division 2 Group C
CSA C22.2 No 213 Class I Division 2 Group D

Product certifications

ABS
BV
DNV
GL
LR
RINA
RMRS

Ambient air temperature for operation

0...60 °C

Ambient air temperature for storage

-25...70 °C

Relative humidity

5...95 % without condensation for storage
10...95 % without condensation for operation

Operating altitude

0...2000 m

Protective treatment

TC

IP degree of protection

IP20

Pollution degree

2
