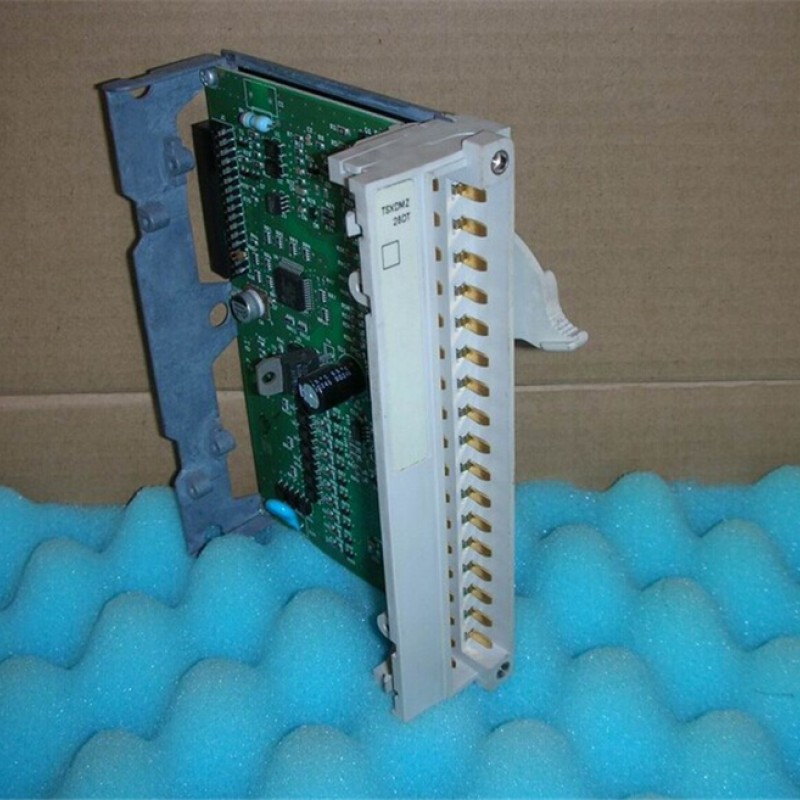

TSXDMZ28DT Premium PLC solid state I/O 16DI 12DO

Range of product

Modicon TSX Micro automation platform

Product or component type

Discrete solid state I/O base DC

Discrete input number

16 1 HE-10 connector

Discrete input voltage

24 V DC positive

Discrete input current

7 mA

Discrete input type

Resistive

Discrete output number

12 screw terminal block

Discrete output voltage

24 V DC

Discrete output current

0.5 mA

Discrete output logic

Positive

Input voltage limits

< 5 V at state 0

>= 11 V at state 1

Input current limits

<= 1.5 mA at state 0

>= 2.5 mA at state 1

Input impedance

3.4 Ohm

Response time

0.1...7.5 ms from state 0 to state 1 input

0.1...7.5 ms from state 1 to state 0 input

<= 0.5 ms from state 0 to state 1 output

<= 0.5 ms from state 1 to state 0 output

Input compatibility

2-wire/3-wire proximity sensor

Current consumption

132 mA

Power dissipation in W

5 W input

0.15 W by channel output

3.5 W by module output

Output voltage limits

19...30 V

Output current limits

0.625 A

Leakage current

<= 0.5 mA at state 0

[Ures] residual voltage

<= 0.3 V

Load impedance ohmic

48 Ohm

Switching frequency

< 0.6/LI² Hz

Output overvoltage protection

By zener diode

Output short-circuit protection

By current limiter and electronic circuit breaker

Reverse polarity protection

Reverse diode on power supply

Paralleling of outputs

Yes : 2 maximum

Isolation voltage

1500 V 1 s

Product weight

0.425 kg
