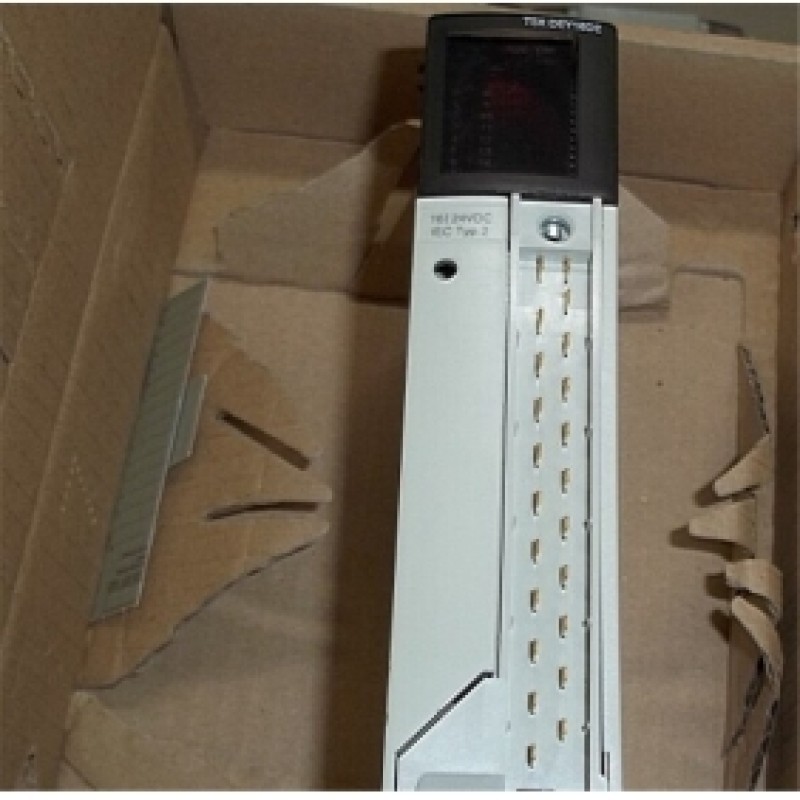

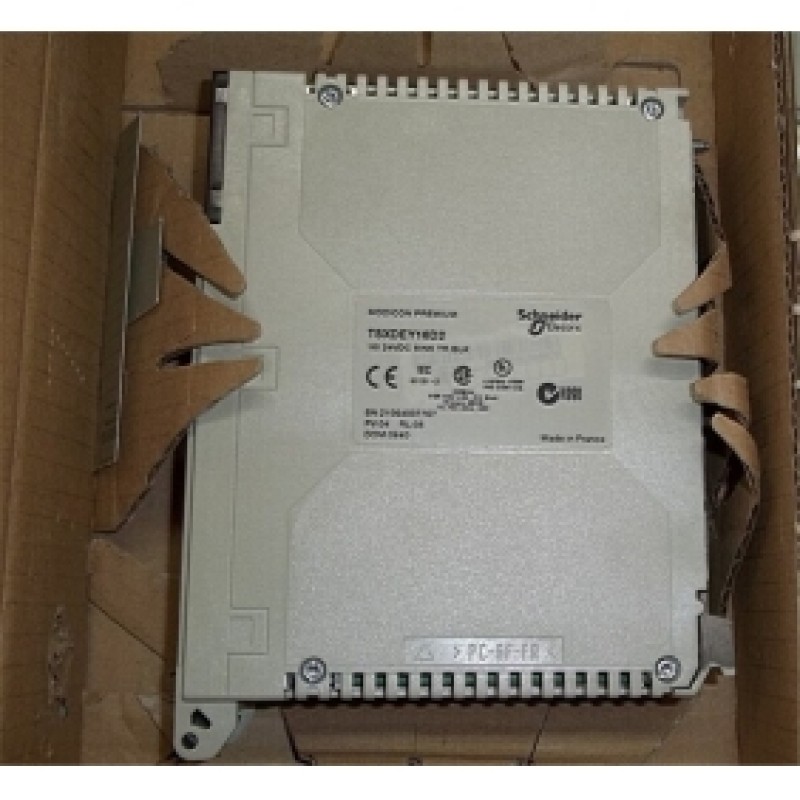

TSXDEY16D2 Premium PLC input module 16DI

Commercial Status

Commercialised

Range of product

Modicon Premium Automation platform

Product or component type

Discrete input module

Discrete input number

16 current sink isolated conforming to EN/IEC 61131-2 type 2

Discrete input voltage

24 V DC positive

Sensor power supply

19...30 V

Input compatibility

With 2-wire/3-wire proximity sensors conforming to EN/IEC 60947-5-2

Discrete input current

7 mA

Voltage state1 guaranteed

>= 11 V

Current state 1 guaranteed

>= 6.5 mA

Voltage state 0 guaranteed

<= 5 V

Current state 0 guaranteed

<= 2 mA

Input impedance

4000 Ohm at state 1

Response time

<= 7 ms
4 ms

Isalotion resistance

< 10 MOhm 500 V DC

Power dissipation

(1 W + 0.15 W x No of channels used)

Electrical connection

Screw terminal

Marking

CE

Current consumption

80 mA 5 V DC
135 mA 24 V DC

Module format

Standard

Product weight

0.3 kg

Dielectric strength

1500 V AC at 50/60 Hz

Standards

73/23/EEC
89/336/EEC
92/31/EEC
93/68/EEC
CSA C22.2 No 142
EN/IEC 61131-2
IEC 60664
UL 508
CSA C22.2 No 213 Class I Division 2 Group A
CSA C22.2 No 213 Class I Division 2 Group B
CSA C22.2 No 213 Class I Division 2 Group C
CSA C22.2 No 213 Class I Division 2 Group D

Product certifications

ABS
BV
DNV
GL
LR
RINA
RMRS

Ambient air temperature for operation

0...60 °C

Ambient air temperature for storage

-25...70 °C

Relative humidity

5...95 % without condensation for storage
10...95 % without condensation for operation

Operating altitude

0...2000 m

Protective treatment

TC

IP degree of protection

IP20

Pollution degree

2
