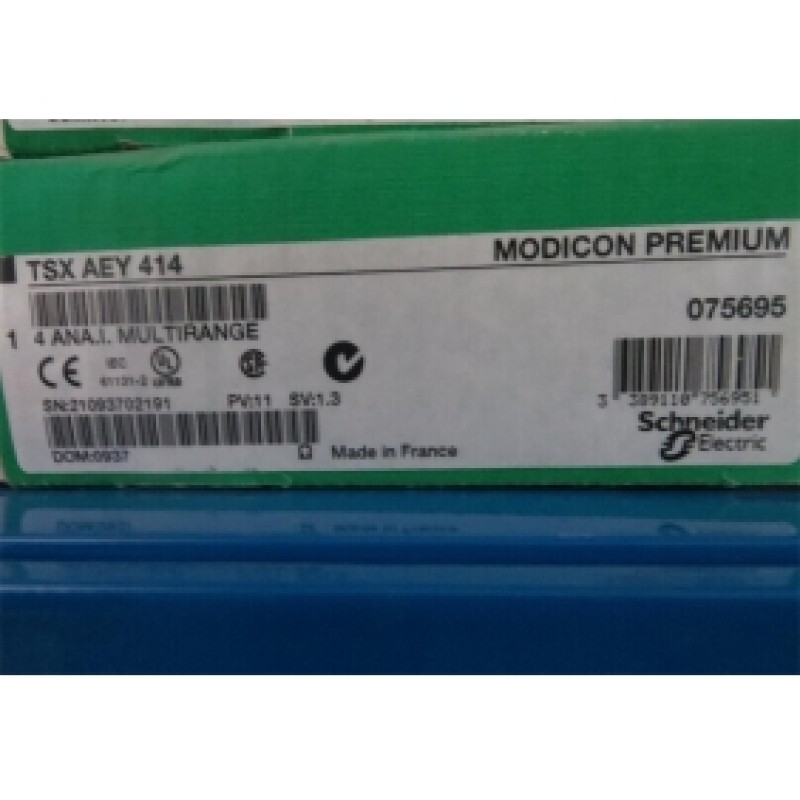

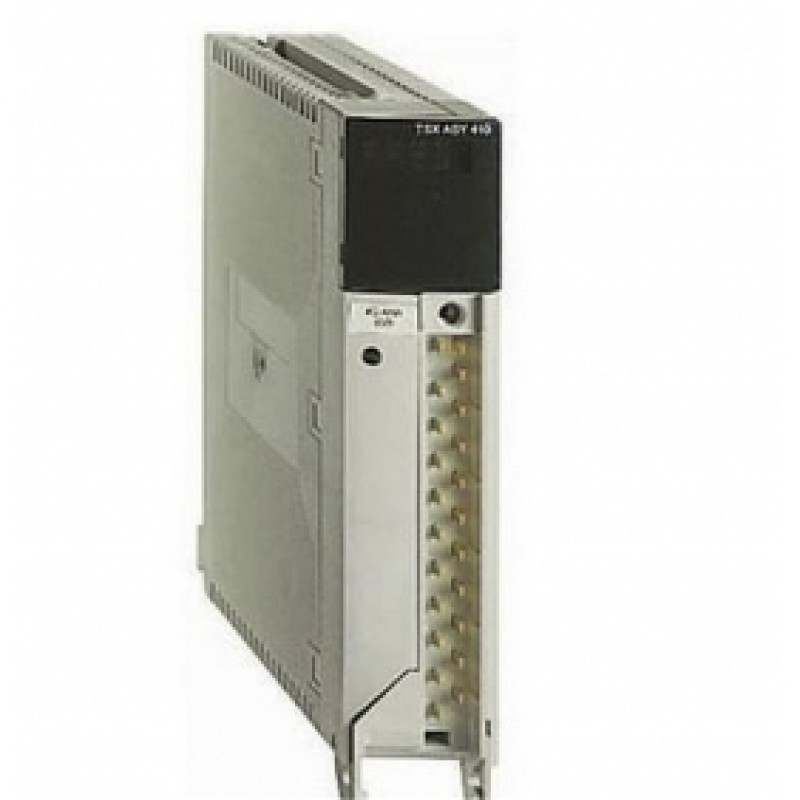

TSXAEY414 Premium PLC input module 4DI

Commercial Status

Commercialised

Range of product

Modicon Premium Automation platform

Product or component type

Analog input module

Input level

Low level

Analogue input number

4

Analogue input type

Voltage 1...5 V
Voltage 0...5 V
Voltage 0...10 V
Voltage +/- 5 V
Voltage +/- 10 V
Voltage - 13...63 mV
Thermocouple thermocouple U
Thermocouple thermocouple T
Thermocouple thermocouple S
Thermocouple thermocouple R
Thermocouple thermocouple N
Thermocouple thermocouple L
Thermocouple thermocouple K
Thermocouple thermocouple J
Thermocouple thermocouple E
Thermocouple thermocouple B
Temperature probe Pt 1000 4 wires
Temperature probe Pt 1000 2 wires
Temperature probe Pt 100 4 wires
Temperature probe Pt 100 2 wires
Temperature probe Ni 1000 4 wires
Temperature probe Ni 1000 2 wires
Resistor 0...400 Ohm
Resistor 0...3850 Ohm
Current 4...20 mA

Analog/digital conversion

16 bits

Nominal read cycle time

550 ms

Measurement error

5 °C Pt 1000 0...60 °C
2.5 °C Pt 1000 25 °C
2.4 °C Pt 100 0...60 °C
2 °C Ni 1000 0...60 °C
1.2 °C Pt 100 25 °C
1 °C Ni 1000 25 °C
9.8 °C thermocouple L internal 0...60 °C
9.5 °C thermocouple J internal 0...60 °C
8.8 °C thermocouple T internal 0...60 °C
8.7 °C thermocouple N internal 0...60 °C
8.5 °C thermocouple S external 0...60 °C
8.1 °C thermocouple E internal 0...60 °C
8.1 °C thermocouple B internal 0...60 °C
7.8 °C thermocouple K internal 25 °C
7.7 °C thermocouple R external 0...60 °C
7.5 °C thermocouple L internal 25 °C
7.3 °C thermocouple U internal 0...60 °C
7.3 °C thermocouple J internal 25 °C
6.6 °C thermocouple T internal 25 °C
6.6 °C thermocouple S internal 25 °C
6.1 °C thermocouple E internal 25 °C
6 °C thermocouple R internal 25 °C
6 °C thermocouple N internal 25 °C
5.4 °C thermocouple U internal 25 °C
4.7 °C thermocouple K external 0...60 °C
4.3 °C thermocouple N external 0...60 °C
4.1 °C thermocouple L external 0...60 °C
3.8 °C thermocouple J external 0...60 °C
3.5 °C thermocouple B internal 25 °C
3.5 °C thermocouple B external 0...60 °C
3.4 °C thermocouple S external 25 °C
3.2 °C thermocouple T external 0...60 °C
3.2 °C thermocouple R external 25 °C
3.2 °C thermocouple E external 0...60 °C
3.1 °C thermocouple U external 0...60 °C
2.3 °C thermocouple K external 25 °C
2 °C thermocouple N external 25 °C
2 °C thermocouple L external 25 °C
12 °C thermocouple S internal 0...60 °C
11 °C thermocouple R internal 0...60 °C
10.5 °C thermocouple K internal 0...60 °C
1.8 °C thermocouple J external 25 °C
1.5 °C thermocouple U external 25 °C
1.5 °C thermocouple T external 25 °C
1.5 °C thermocouple E external 25 °C
1.5 °C thermocouple B external 25 °C
0.86 % of full scale 4...20 mA 0...60 °C
0.56 % of full scale 1...5 V 0...60 °C
0.5 % of full scale +/- 5 V 0...60 °C
0.5 % of full scale +/- 10 V 0...60 °C
0.48 % of full scale 0...3850 Ohm 0...60 °C
0.45 % of full scale 4...20 mA 25 °C
0.45 % of full scale 0...5 V 0...60 °C
0.44 % of full scale - 13...63 mV 0...60 °C
0.39 % of full scale 0...10 V 0...60 °C
0.27 % of full scale 1...5 V 25 °C
0.27 % of full scale 0...400 Ohm 0...60 °C
0.27 % of full scale +/- 5 V 25 °C
0.27 % of full scale +/- 10 V 25 °C
0.22 % of full scale 0...5 V 25 °C
0.22 % of full scale 0...3850 Ohm 25 °C
0.19 % of full scale - 13...63 mV 25 °C
0.16 % of full scale 0...10 V 25 °C
0.13 % of full scale 0...400 Ohm 25 °C

Isolation between channels and bus

1780 Vrms

Isolation between channels and ground

1780 Vrms

Isolation between channels

2830 Vrms

Common mode between channels

415 V AC or 200 V DC

Common mode between channels and earth

240 V AC or 110 V DC

Maximum overvoltage on input

-30...30 V at state 1 250 Ohm
-15...15 V at state 0 250 Ohm

Electrical connection

Screw terminal block

Overcurrent

-30...30 mA at state 1 250 kOhm

Marking

CE

Current consumption

660 mA 5 V DC

Module format

Standard

Product weight

0.32 kg
