TSXAEY1600 Premium PLC Module 16DI New

Commercial Status

Commercialised

Range of product

Modicon Premium Automation platform

Product or component type

Analog input module

Input level

High level

Analogue input number

16

Analogue input type

Voltage 1...5 V
Voltage 0...5 V
Voltage 0...10 V
Voltage +/- 10 V
Current 4...20 mA
Current 0...20 mA

Analog/digital conversion

12 bits

Nominal read cycle time

51 ms

Fast read cycle time

3 ms + 3 ms x number of channels used

Measurement error

0.32 % of full scale 4...20 mA 0...60 °C
0.32 % of full scale 0...20 mA 0...60 °C
0.16 % of full scale 4...20 mA 25 °C
0.16 % of full scale 0...20 mA 25 °C
0.13 % of full scale 1...5 V 0...60 °C
0.13 % of full scale 0...5 V 0...60 °C
0.13 % of full scale 0...10 V 0...60 °C
0.13 % of full scale +/- 10 V 0...60 °C
0.1 % of full scale 1...5 V 25 °C
0.1 % of full scale 0...5 V 25 °C
0.1 % of full scale 0...10 V 25 °C
0.1 % of full scale +/- 10 V 25 °C

Isolation between channels and bus

1000 Vrms

Isolation between channels and ground

1000 Vrms

Isolation between channels

Common point

Common mode between channels

None

Maximum overvoltage on input

-30...30 V at state 1 250 kOhm
-15...15 V at state 0 250 kOhm

Electrical connection

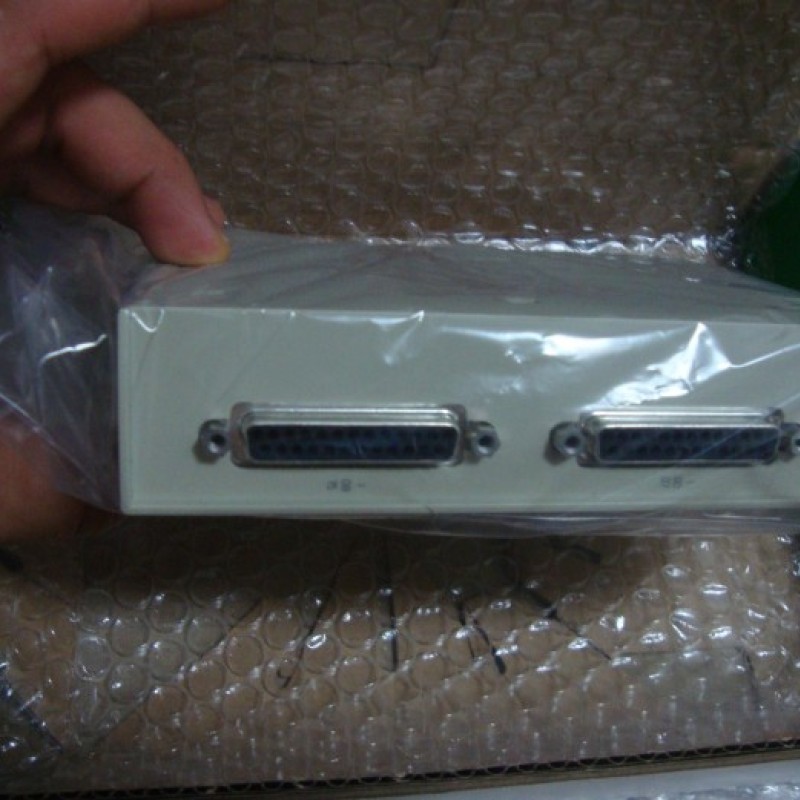

2 connectors SUB-D 25

Overcurrent

-30...30 mA at state 1 250 kOhm

Marking

CE

Current consumption

270 mA 5 V DC

Module format

Standard

Product weight

0.34 kg
