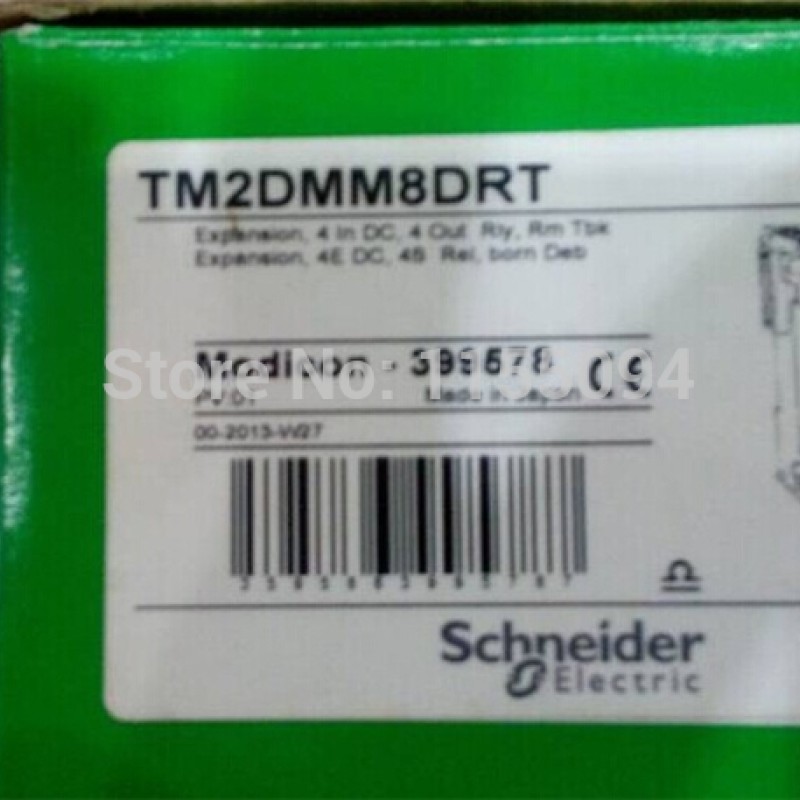

TM2DMM8DRT M238 PLC Module 4DI 4DO New

Range of product

Modicon M238 logic controller

Product or component type

Discrete I/O module

Discrete input number

4

Discrete input voltage

24 V

Discrete input voltage type

DC

Discrete output number

4

Discrete output type

Relay

Range compatibility

Advantys OTB
Twido

Input voltage limits

20.4...28.8 V

Discrete input logic

Sink or source

Discrete input current

7 mA

Input impedance

3,4 kOhm

Discrete output function

1 NO

Current per channel

2...5 A

Current per output common

7 A

Number of common point

1 for input
1 for output

Contact resistance

≤ 45 mOhm

Response time

4 ms at state 1 input
4 ms at state 0 input
<= 10 ms from state 0 to state 1 output
<= 5 ms from state 1 to state 0 output

Minimum switching current

0,1 mA 0.1 V DC

Isolation between channels

None

Isolation between channels and internal logic

500 V for 1 minute (input)
2300 V for 1 minute (output)

Isolation between input channels and output channels

1500 V for 1 minute

Isolation between output channels group

1500 V for 1 minute

Mechanical durability

20000000 cycles

Electrical durability

100000 cycles , 2 A 240 V AC , resistive
100000 cycles , 2 A 30 V DC , resistive 100000 cycles , 1 A 240 V AC AC-15 , cos ? = 0,7 , inductive
100000 cycles , 0.5 A 240 V AC AC-15 , cos ? = 0,35 , inductive
100000 cycles , 1 A 24 V DC DC-13 , inductive (L/R = 7 ms)

Current consumption

20 mA 24 V DC at state 1 for all input/output
25 mA 5 V DC at state 1 for all input/output

Local signalling

1 display block

Electrical connection

1 removable screw terminal block

Mounting support

35 mm symmetrical DIN rail

Product weight

0,095 kg

RoHS EUR conformity date

0830

RoHS EUR status

Compliant
