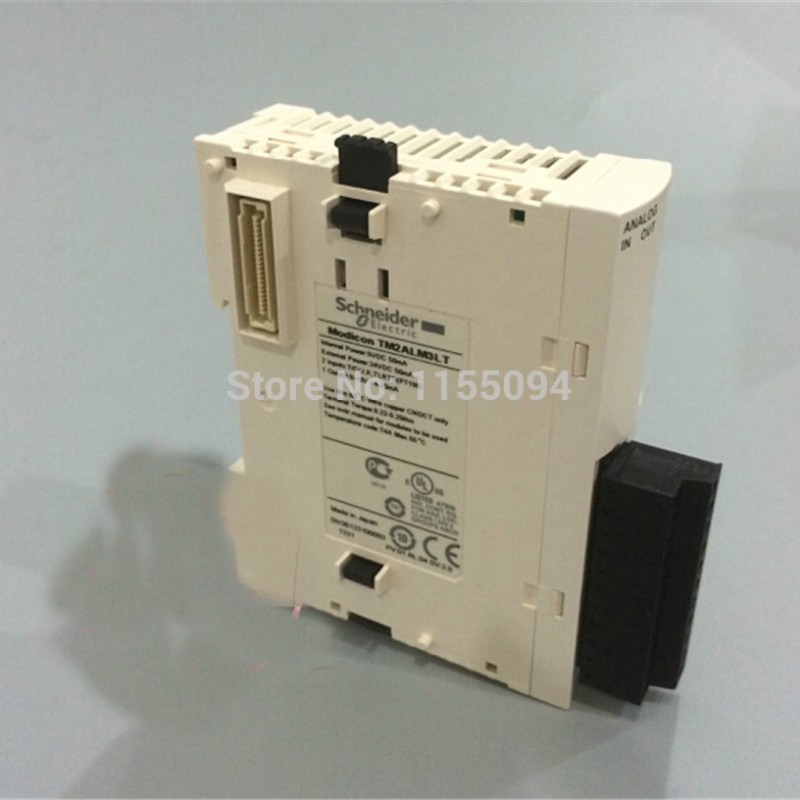

TM2ALM3LT M238 PLC Module 2AI New

Range of product

Modicon M238 logic controller

Product or component type

Input/output analog module

Analogue input number

2

Analogue input type

Temperature probe - 100...500 °C : 3-wire Pt probe , non differential
Thermocouple 0...1200 °C thermocouple J , non differential
Thermocouple 0...1300 °C thermocouple K , non differential
Thermocouple 0...400 °C thermocouple T , non differential

Analogue output number

1

Analogue output type

Current 4...20 mA
Voltage 0...10 V

Cross talk

<= 2 LSB

Range compatibility

Advantys OTB
Twido

Input level

Low level

Analogue input resolution

12 bits

Analogue output resolution

12 bits

LSB value

0.15 °C , temperature probe
0.1 °C , thermocouple
2.5 mV , voltage
4.8 µA , current

Input impedance

≥ 1 MOhm

Load type

Resistive

Load impedance ohmic

≤ 300 Ohm (current)
≥ 2000 Ohm (voltage)

Stabilisation time

20 ms

Conversion time

20 ms + 1 controller cycle time

Sampling duration

≤ 20 ms , temperature probe
≤ 60 ms , thermocouple

Acquisition period

60 ms per channel + 1 controller cycle time , thermocouple
80 ms per channel + 1 controller cycle time , temperature probe

Measurement error

0.2 % of full scale +/- 4 °C , 0...1200 °C thermocouple J  25 °C
0.2 % of full scale +/- 4 °C , 0...1300 °C thermocouple K  25 °C
0.2 % of full scale +/- 4 °C , 0...400 °C thermocouple T  25 °C
+/- 0.2 % of full scale , - 100...500 °C , 3-wire Pt probe  25 °C
+/- 0.2 % of full scale , 0...10 V  25 °C
+/- 0.2 % of full scale , 4...20 mA  25 °C

Temperature coefficient

+/-0.006 %FS/°C , 0...1200 °C thermocouple J
+/-0.006 %FS/°C , 0...1300 °C thermocouple K
+/-0.006 %FS/°C , 0...400 °C thermocouple T
+/-0.006 %FS/°C , - 100...500 °C 3-wire Pt probe
+/-0.015 %FS/°C , 0...10 V
+/-0.015 %FS/°C , 4...20 mA

Repeat accuracy

+/-0.5 %FS  input/output

Non-linearity

+/- 0.2 %FS , thermocouple
+/- 0.2 %FS , temperature probe
+/- 0.2 %FS , voltage
+/- 0.2 %FS , current

Output error

+/- 1 %FS

Output ripple

<= 1 LSB

Total error

+/-1 %FS , thermocouple
+/-1 %FS , temperature probe
+/-1 %FS , voltage
+/-1 %FS , current

Type of cable

Shielded cable

Insulation between channel and internal logic

Photocoupler

Supply

External supply

[Us] rated supply voltage

24 V DC

Supply voltage limits

19,2...30 V

Electrical connection

1 removable screw terminal block

Current consumption

50 mA 5 V DC (internal)
50 mA 24 V DC (external)

Product weight

0,085 kg

Dielectric strength

500 V between I/O channel
500 V between the I/O and internal logic
500 V between the I/O and the external supply circuit

RoHS EUR conformity date

0830

RoHS EUR status

Compliant
