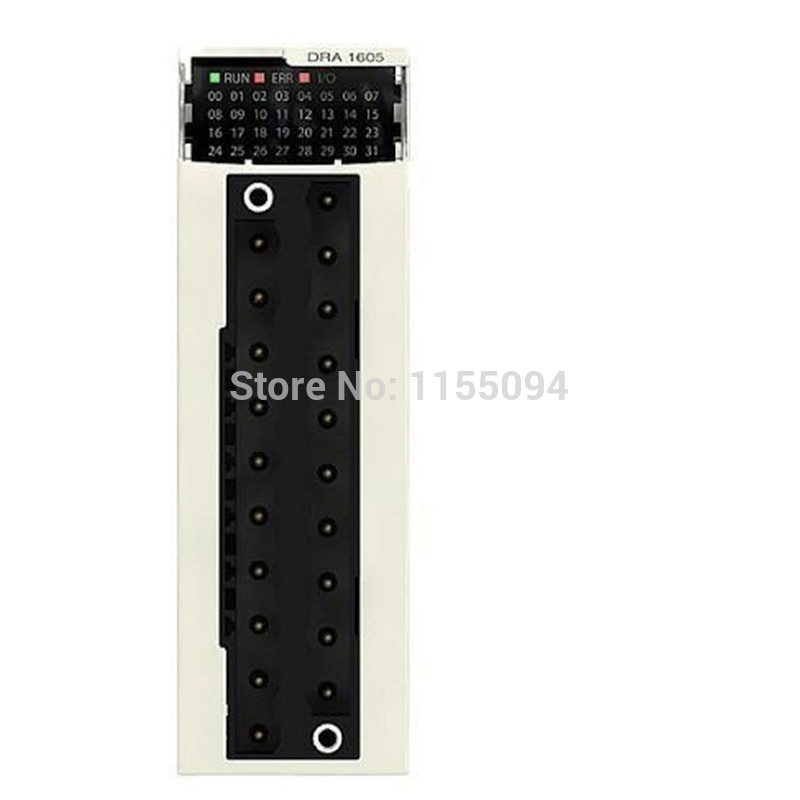

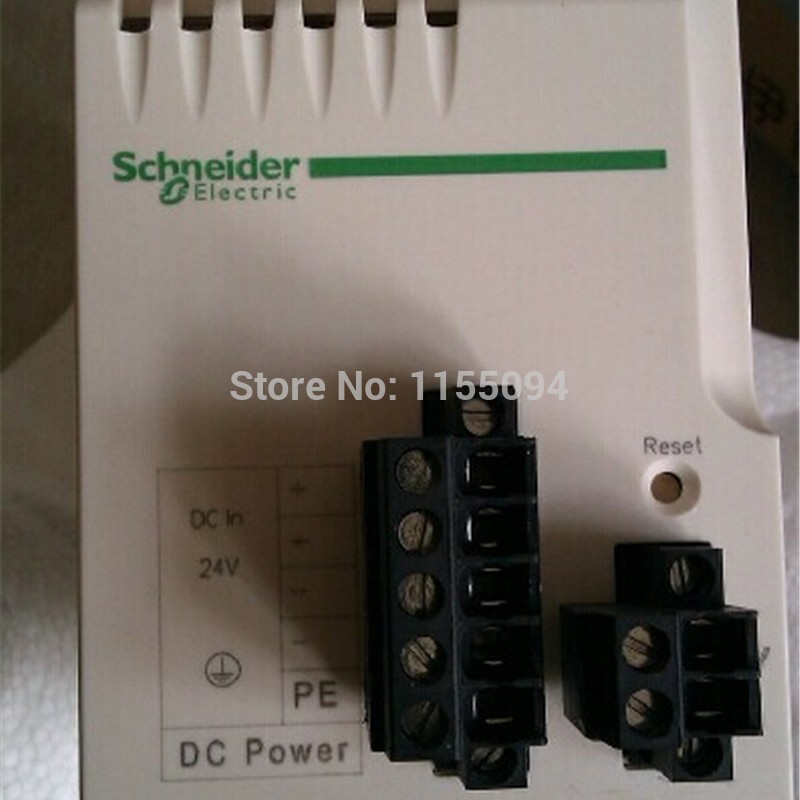

BMXDRA1605 M340 PLC Module 16DO Relay New

Range of product

Modicon M340 automation platform

Product or component type

Discrete output module

Discrete output number

16  EN/IEC 61131-2

Discrete output type

Relay

Discrete output voltage

24 V ,  19...30 V DC
240 V ,  200...264 V AC

Ambient air temperature for operation

0...60 °C

Protective treatment

TC

Electrical connection

20-way connector

[Ith] conventional free air thermal current

2 A

Insulation resistance

> 10 MOhm 500 V DC

Power dissipation in W

≤ 3 W

Response time on output

≤ 10 ms (activation)
≤ 12 ms (deactivation)

MTBF reliability

2463296 h

Protection type

AC inductive overvoltage protection
DC inductive overvoltage protection
External overload protection
External short-circuit protection

Output overload protection

Use 1 fast blow fuse per channel or group of channel

Output overvoltage protection

Use RC circuit on each output AC
Use ZNO surge limiter on each output AC
Use discharge diode on each output DC

Output short-circuit protection

Use 1 fast blow fuse per channel or group of channel

Minimum switching current

1 mA  5 V DC

Electrical durability

100000 cycles DC-13 , 24 W 24 V
100000 cycles AC-15 , 200 VA 200 V , cos ? = 0,35
100000 cycles AC-14 , 300 VA 200 V , cos ? = 0,7
100000 cycles AC-15 , 120 VA 240 V , cos ? = 0,35
100000 cycles AC-14 , 240 VA 240 V , cos ? = 0,7
100000 cycles DC-13 , 10 W 100 V
300000 cycles DC-13 , 7,2 W 24 V
300000 cycles AC-15 , 60 VA 200 V , cos ? = 0,35
300000 cycles AC-14 , 80 VA 200 V , cos ? = 0,7
300000 cycles AC-15 , 36 VA 240 V , cos ? = 0,35
300000 cycles AC-14 , 72 VA 240 V , cos ? = 0,7
300000 cycles DC-13 , 3 W 100 V

Status LED

1 LED green  RUN
1 LED red  ERR
1 LED red  I/O
1 LED per channel green  channel diagnostic

Product weight

0,15 kg
