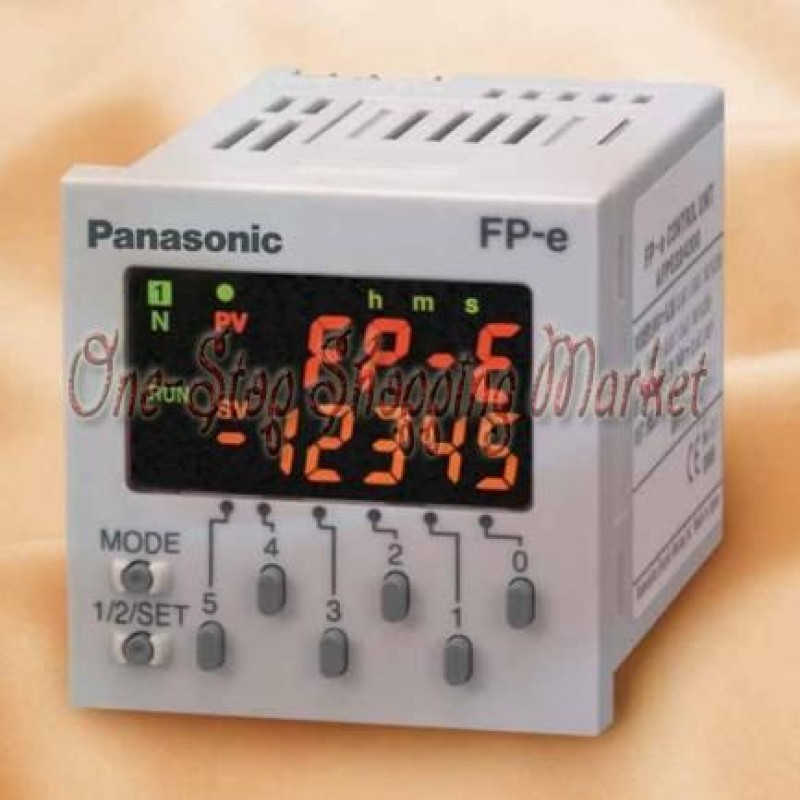

AFPE224305 Panasonic PLC 24VDC 8 DC input points 5 NPN output points FP-e Control Unit Original New

Item

Description

Power supply and I/O Specifications

Power supply

24V DC

Input

24V DC ±common

Output

Relay: 2 A, Transistor :0.5 A

Performance Specifications

Number of controllable I/O points

Control unit

Standard type
Calendar timer

14 points

Thermocouple type

12 points

Front switch input

8 points

Operation speed

0.9µ/step

Internal memory

EEP-ROM

Program capacity

2720 steps

Basic instructions

83

Applied instructions (from ver.1.2)

216

Operation memory

Internal relay

1008 points

Timer/Counter

144 points

Data register

1660 words

Special Functions

Pulse catch input

6 points

Interrupt input

6 points

Analog I/O

- (Thermocouple type K, Input range: -30.0 to 300.0°C)

Volume input

-

High-speed counter

Standard type
Calendar timer

Single-phase: 4 ch in total, Max. 10kHz
2-phase: 2 ch in total, Max. 2kHz

Thermocouple type

Single-phase: 4 ch in total, Max. 5kHz
2-phase: 2 ch in total, Max. 1kHz

Pulse output

Standard type
Calendar timer

1 ch x 40Hz to 10kHz
2 ch x 40Hz to 5kHz

Thermocouple type

1 ch x 40Hz to 5kHz
2 ch x 40Hz to 2.5kHz

Serial interface

RS232C.RS485(AFPE224302/AFPE214322)

Network function

Computer link, Modem,

Other functions

Program editing during RUN, Constant scan, 4-digit password, Floating point processing, PID processing, Calendar timers ((AFPE224305/AFPE214325))

Model Name

Power

Pulse Outputs

Thermocouple

Dc Inputs

Npn Outputs

Relay Outputs

Program Size (K)

AFPE214322

24VDC

Yes

Yes

6

5

1

2.7

AFPE214325

24VDC

Yes

Yes

6

5

1

2.7

AFPE224200

12VDC

Yes

No

8

5

1

2.7

AFPE224300

24VDC

Yes

No

8

5

1

2.7

AFPE224302

24VDC

Yes

No

8

5

1

2.7

AFPE224305

24VDC

Yes

No

8

5

1

2.7
