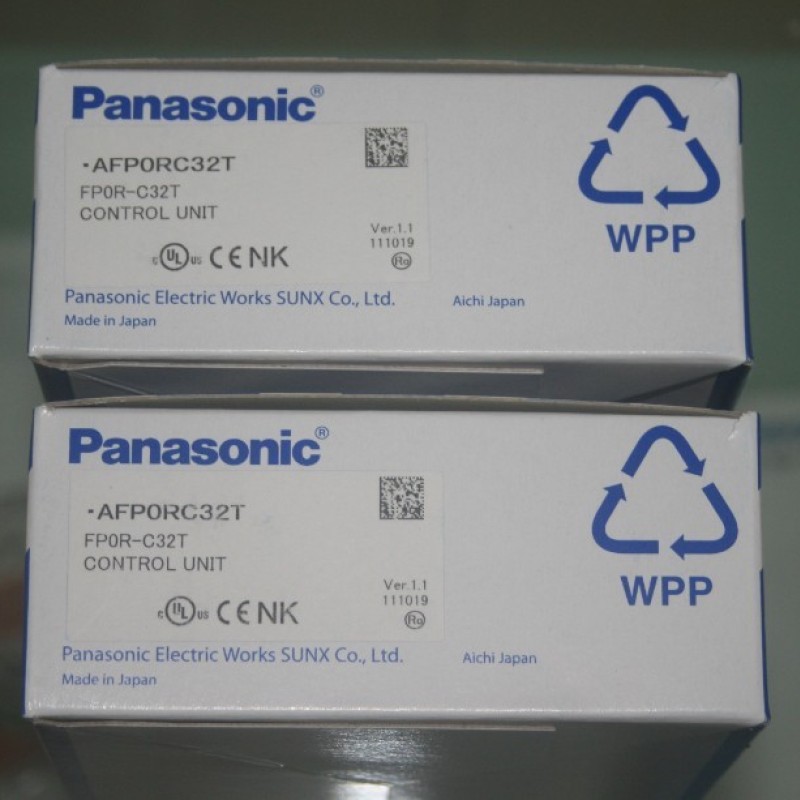

AFP0RC32T Panasonic FP0R-C32T PLC CPU 24VDC Power 16DI 16DO Transistor NPN New Original 1 Year Warranty

Item

Specifications

Control unit

Expansion unit

Rated input voltage

24 V DC

Operating voltage range

21.6 to 26.4 V DC

Rated input current

2.6 mA approx. (at 24 V DC)

4.7 mA approx. (at 24 V DC)

Input impedance

9.1 kΩ approx.

5.1 kΩ approx.

Input points per common

6 points / common (C10), 8 points / common (C14, C16), 16 points / common (C32, T32, F32)

Min. ON voltage/ON current

19.2 V / 2 mA

Max. OFF voltage/OFF current

2.4 V / 1.2 mA

Response
time

OFF → ON

20 μs or less * An input time constant (0.1 to 64 ms) can be set.

2 ms or less

ON → OFF

Same as above

Same as above

Insulation method

Photocoupler

Item

Specifications

Output type

1a

Rated control capacity

2 A 250 V AC, 2 A 30 V DC (4.5 A / common)

Response time

OFF → ON

10 ms approx.

ON → OFF

8 ms approx.

Life time

Mechanical

2 x 107 operations or more

Electrical

105 operations or more

Surge absorber

None

Output points per common

2 points / common + 1 point / common + 1point / comon (C10),
4 points / common + 1 point / common + 1point / comon (C14)

Item

Specifications

NPN

PNP

Output type

Open collector

Rated load voltage

5 to 24 V DC

24 V DC

Load voltage allowable range

4.75 to 26.4 V DC

21.6 to 26.4 V DC

Max. load current

C16, C32, T32 and F32: 0.2 A / point (Max. 14 per common terminal)
E16, E32, E8Y and E16Y: 0.3 A / point (Max. 14 per common terminal)

OFF state leakage current

1 μA or less

ON state voltage drop

0.2 V DC or less

Response
time

OFF → ON

20 μs or less (Load current: 5 mA or more), 0.1 ms or less (Load current: 0.5 mA or more) (Note)

ON → OFF

40 μs or less (Load current: 5 mA or more), 0.2 ms or less (Load current: 0.5 mA or more) (Note)

External power
supply

Voltage

21.6 to 26.4 V DC

Current

C16, E16T and E8YT: 30 mA or less

C16, E16P and E8YP: 35 mA or less

C32, T32, F32, E32T and E16Y : 60 mA or less

C32, T32, F32, E32P and E16YP : 70 mA or less

Surge absorber

Zener diode

Output points per common

8 points / common (C16T), 16 points / common (C32, T32, F32)

Insulation method

Photocoupler

Product name

Specications

Part number

Number of I/O points

Power supply
voltage

Input

Output

Connection type

FP0R E32
Expansion Unit

32

Input: 16
Output: 16

-

24 V DC
Sink/Source
(±common)

Transistor NPN: 0.3 A

MIL connector

AFP0RE32T

32

Input: 16
Output: 16

-

24 V DC
Sink/Source
(±common)

Transistor PNP: 0.3 A

MIL connector

AFP0RE32P
