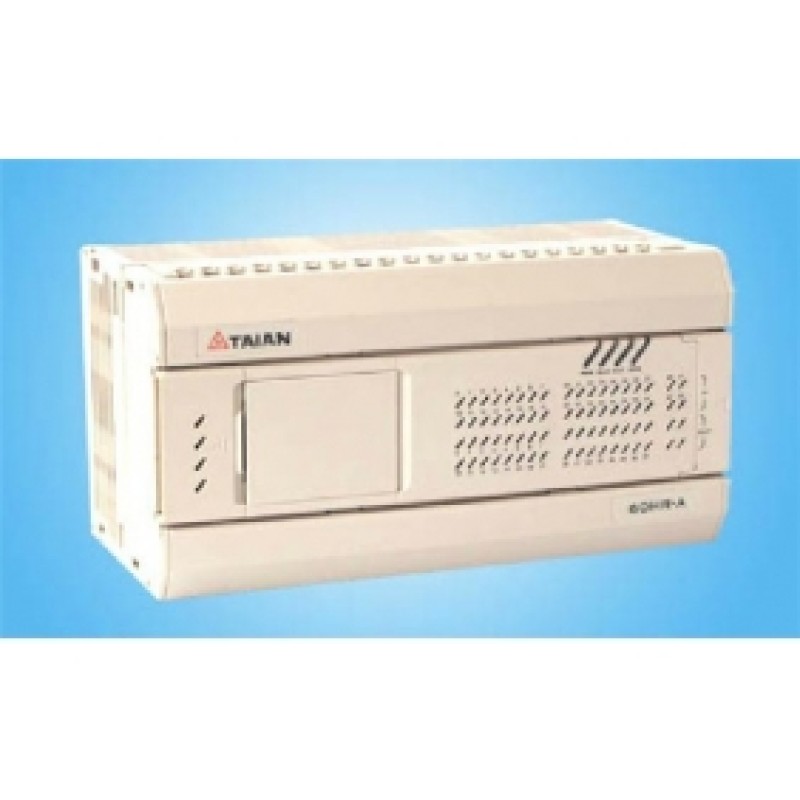

TP03-60HR-A TAIAN PLC 100-240VAC 24VDC 36 point Relay 24 point TP03 1 COM Original brand new

Type

Item

14S

20S

26S

36S

20M

30M

20H

30H

40H

60H

Basic unit outline

Brick type

Operation control

Cyclic scanning of user program

Input/output

Cyclic scanning of user program and input and output

Program language

Ladder/IL (instruction List )/SFC/FBD

Digital I/O

Digital input

8

12

16

20

12

16

12

16

24

36

Digital output

6

8

10

16

8

14

8

14

16

24

Expansion module

Digital module

Expandable to 80 points

Expandable to 128 points

Expandable to 256 points

Analog module

2x4AD+ & 1x2DA + or 1x8AD &1x2DA

1x4D+ & 1x2DA+ & 7x8AD & 4x2DA

Max Analog I/O

8 input channels/2 output channels

60 input channels/10 output channels

Scan time

Basic instruction

36

36

ANB/ORB…etc.: 0.62μs/ step

ANB/ORB …etc.: 0.31μs/ step

LD/AND/OR…etc.: 0.9μs/ step

LD/AND/OR…etc.: 0.36 --0.45μs/ step

Application

instruction

126

134

144

Relay and Register

Digital I/O relay

X000~X377 (256 points)/ Y000~Y377 (256 points)

Auxiliary relay

General auxiliary relay: M0~M1535 (1536 points)

General auxiliary relay: M0~M7679 (7680 points)

Data Link: M2000~M3023

Remote I/O: M4200~M4355, M4600~M4695

Special auxiliary relay: M8000~M8511 (512 points)

Step relay

S0~S1023 (1024 points)

S0~S4095 (4096 points)

Timer

100 points (100ms: 44 points; 10ms: 46 points; 1ms with accumulating function: 4 points; 100ms with accumulating function: 6)

512 points (100ms: 200 points; 10ms: 46 points; 1ms with accumulating function: 4 points; 100 ms with accumulating function: 6 points; 1ms: 256 points) .

Analog potentionmeter timer: 2 points

Counter

136 points (16 bit: 100 points, 32 bit: 36 points)

General register:

256 points (16 bit: 200 points, 32 bit: 56 points)

General register: D0000~D7999 (8000 points);

Data register

D0~D511 (512 points)

File register : D2000~D3299 (1300 points)

OP07/OP08: D3300

Special register: D8000~D8511 (512 points)

Index register

32 points: V000~V0015/ Z000~Z0015

Relay and register

Stack pointer

Mark: N0~N7 (8 points), pointerP0~P127 (128 points), input interruption pointer: I00~ I130 (4points), timer interruption pointer: 16**~I8**(3 points), counter interruption pointer I010 ~I060 (6 points)

MarK: N0~N7 (8points), pointer P0~P255 ( 256 points),

input interruption pointer: I00~I50 (6 points),

timer interruption pointer: I6** ~ I8** (3 points),

counter interruption pointer I010~I060 (6 points)

Constant

Decimal (K)

16 Bit : -32, 768~32,768;

32 Bit: -2,147,483,648~2,147,483,648

Hex (K)

16 Bit: 0~FFFFH; 32 Bit: 0~FFFFFFFFH

RTC

N.A

Built-in: Second (D8013), Minute (D8014), Hour(D8015),Day(D8016), Month(D8017),Year(D8018), week(D8019) And with 30s offset

Run/Stop switch

Built-in

Potentiometer

N.A

2 points built-in and 6 points expansible (TP03-6AV optional)

High speed input (X0~X5)

High speed counter

Single channel: 4 points 10KHz

Single channel: 4points 10Khz and 2 points 5KHz max.

Single channel: 4 points 100KHz and 2 points 5KHz max.

Dual channel: 2 points 10KHz

High speed input (X0~X5)

Interrupt input

4points (corresponding to I00~I30): Minnimum pulse width 50μs

6points (corresponding to I00~I50): Minimum pulse width 50μs

6points (corresponding to I00~I50): Minimum pulse width 5μs

Pulse input

Pulse output

N.A

2 points: Y0/Y1 with acceleration/ deceleration

PWM output

N.A

2 points: Y0/Y1

Frequency

N.A

1KHz max.

100KHz max.

Communication point

PC/PDA

RS232, for upload/download program to/from TP03

RS485 communication

Built-in 1 communication port for Data link, Remote I/O or computer Link, max. 307.2Kbps

N.A

Built-in Built-in 1 communication port for Data link, Remote I/O or computer Link, max. 307.2Kbps

Expansion card

N.A

Either RS485 or RS232 communication card is available for the port and both have Modbus communication protocol, max. 307.2k bps.

Self-diagnosis

Input/output inspection, system processing time out inspection, illegal instruction inspection, program language syntax inspection and password setting

Supervise/Troubleshoot

Display processing time, byte/bit character or device set

Terminal block

Fixed, unremovable

Removable

Dimension ( W x D x H ) ( mm )

116x92x64

177x92x64

116x90x83

177x90x83
