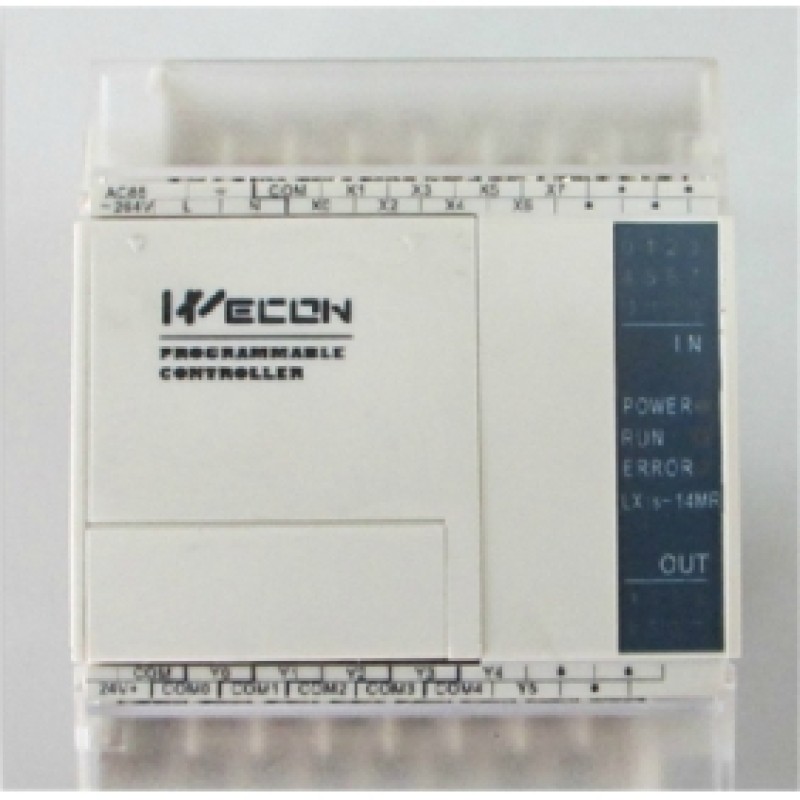

LX1S-14MR-A WECON PLC 100-240VAC 8 point 24V relay 6 point 1 COM Original brand new

Power specifications

Rated voltage

AC100-240V

Allowed limits

AC85-264V

Rated frequency

50/60HZ

Allowed instant outage time

Instant outage time less than 10 ms,can continue to work.

power fuse

250V 1A

Power consumption

Maximum 15A 5ms below/AC 100V,Maximum 5ms below/AC200V

Power consumption

Less than 20W

Sensor power

DC24V 400mA

General Specifications

Environment temperature

0 ~ 55 ?

Storage temperature

-20 ~ 70?

Relative humidity

35-85%RH

Seismic resistance

(DIN rails)

Meet JIS C 0040 standards, 10-57HZ 0.035MM X,Y,Z three direction 10 times each(total 80 minute each)

Meet JIS C 0040 standards, 57-150HZ 4.9M/S2 X,Y,Z three direction,10 times each,(total 80 minute each)

Seismic resistance

(install directly)

Meet JIS C 0040 standards, 10-57HZ 0.035MM X.Y.Z three direction ,10 times each(total 80 minute each)

Meet JIS C 0040 standards, 57-150HZ 4.9M/S2 X.Y.Z three direction,10 times each,( total 80 minute each)

Impact Resistance

Meet JIS C 0040 standard(147m/S2 action time, 11ms half-sine shock pulse,in X,Y,Z three direction,3 times each)

Noise resistance

Noise voltage 1,000VP-P noise amplitude 1ns 1 frequency 30 ~ 100HZ noise simulation experiment

Withstand Voltage

AC1500V(1 minute),meet JEM-1021 standards,between power port and earth terminal.

Insulation resistance

DC500V insulation tester test above 5MΩ, meet JEM-1021 standards,between power port and earth terminal.

Earth connection

The third kind of earth connection(do not share one place with high voltage system) ?1

Operating environment

Close corrosive,combustible gas, No large electrical conductivity dust

Instruction specifications

Shell color

black

Shell material

ABS Plastic

Shape Size

90×75×75mm

Package size

137*102*97mm

Net weight

0.3kg

Wet weight

0.5kg
