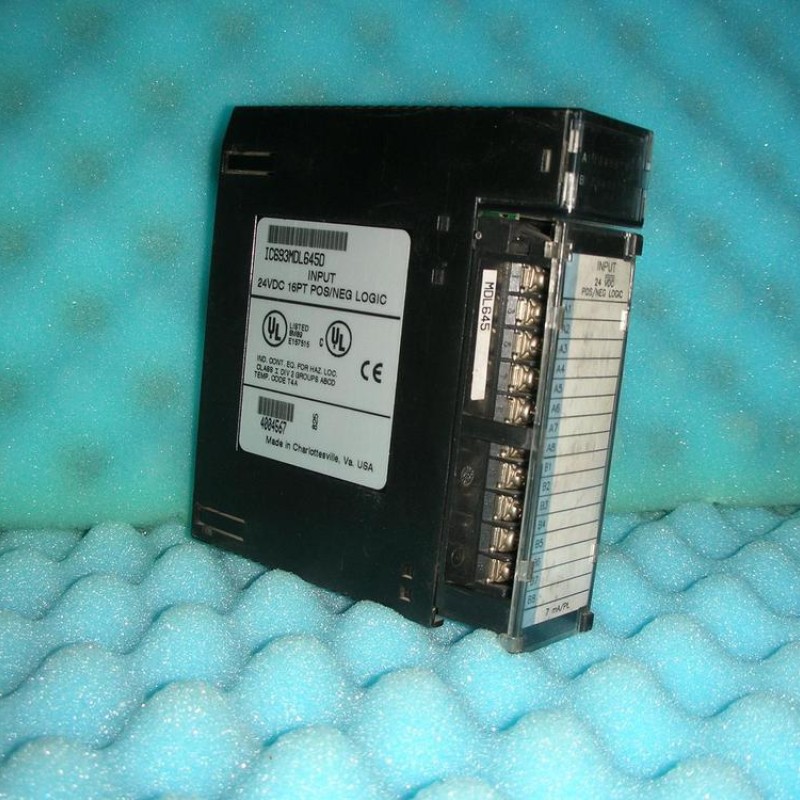

GE Discrete Input Modules IC693MDL645
Product Description:
The 24 volt DC Positive/Negative Logic Input module for the Series 90-30 Programmable Logic Controller provides 16 input points in one group with a common power input terminal.
This input module is designed to have either positive logic or negative logic characteristics. Input characteristics are compatible with a wide range of user-supplied input devices, such as pushbuttons, limit switches, and electronic proximity switches.
Current into an input point results in a logic 1 in the input status table (%I). Power to operate the field devices can be supplied by the user, or an Isolated +24 VDC supply on the power supply (+24V OUT and 0V OUT terminals) can power a limited number of inputs.
Features:
Specifications | |
Rated Voltage | 24 volts DC |
Input Voltage Range | 0 to +30 volts DC |
Inputs per Module | 16 (one group with a single common) |
Isolation | 1500 volts between field side and logic side |
Input Current | 7 mA (typical) at rated voltage |
Input Characteristics | |
On-state Voltage | 11.5 to 30 volts DC |
Off-state Voltage | 0 to +5 volts DC |
On-state Current | 3.2 mA minimum |
Off-state Current | 1.1 mA maximum |
On response Time | 7 ms typical |
Off response Time | 7 ms typical |
Power Consumption: 5V | 80 mA (all inputs on) from 5 volt bus on backplane |
Power Consumption: 24V | 125 mA from the Isolated 24 volt backplane bus or |
from user supplied power | |
