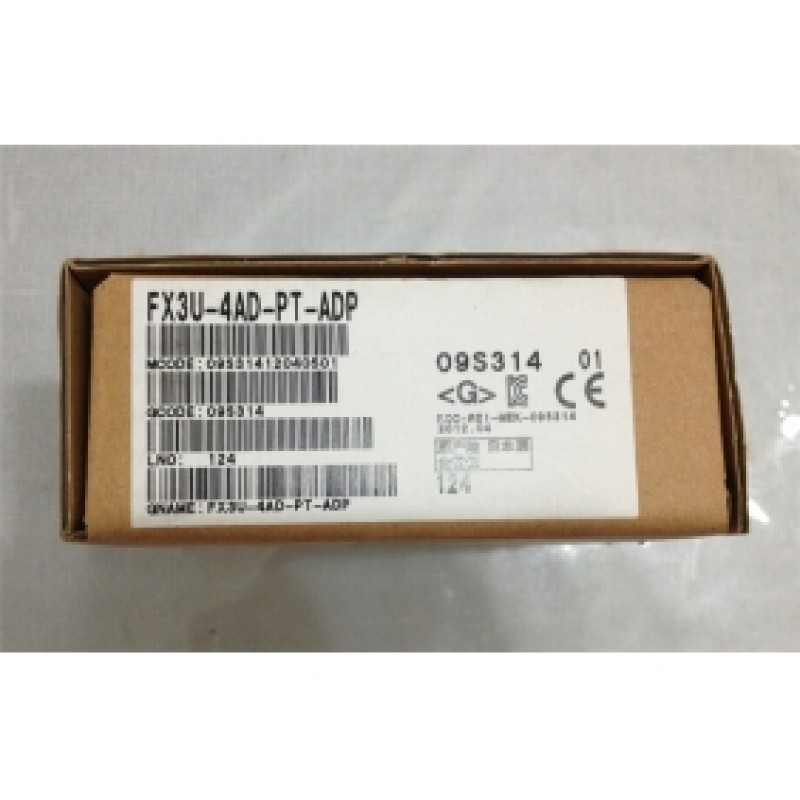

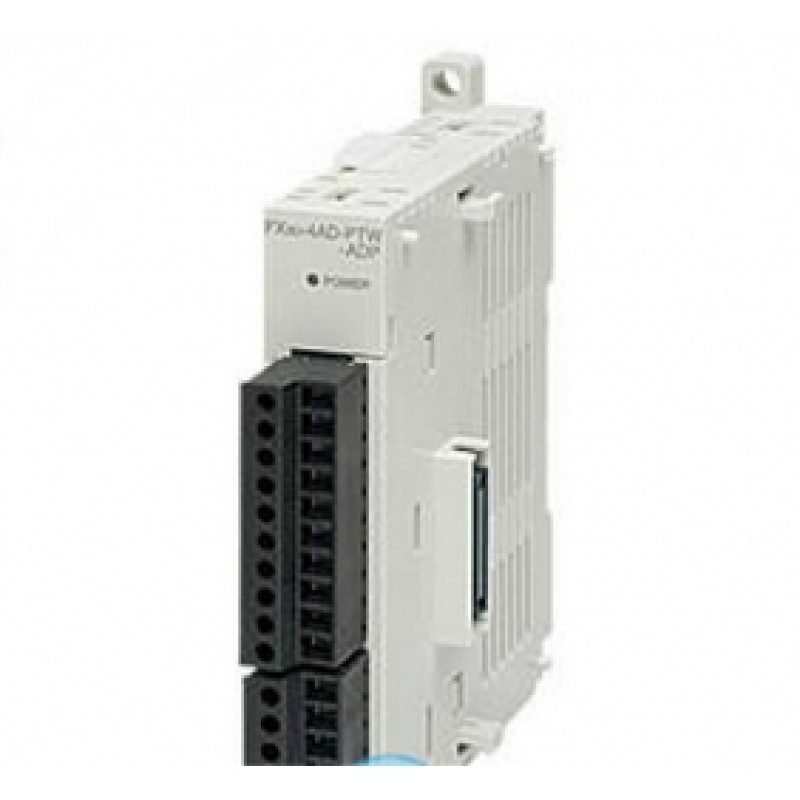

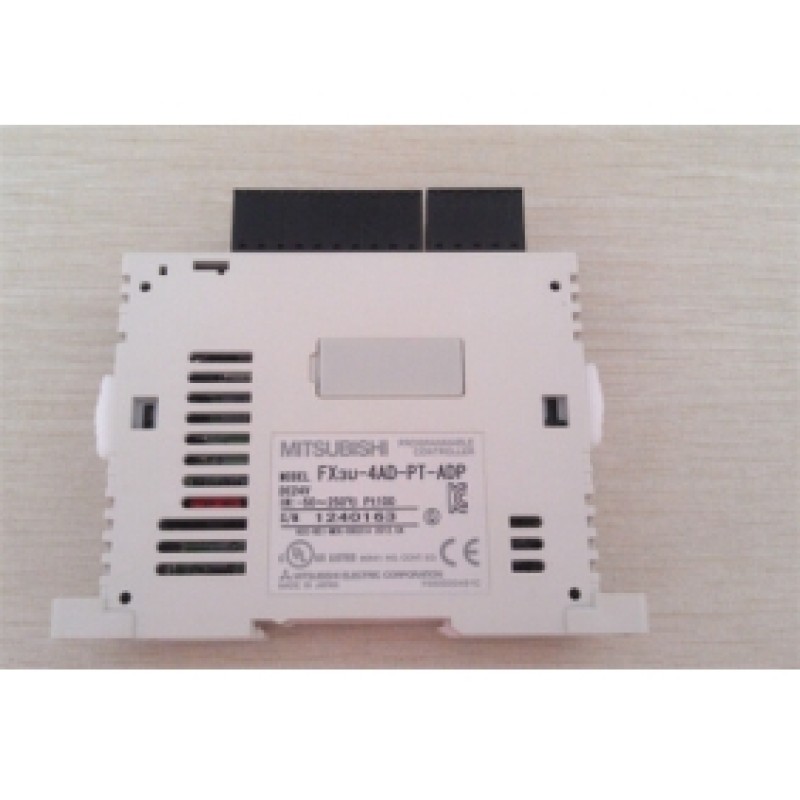

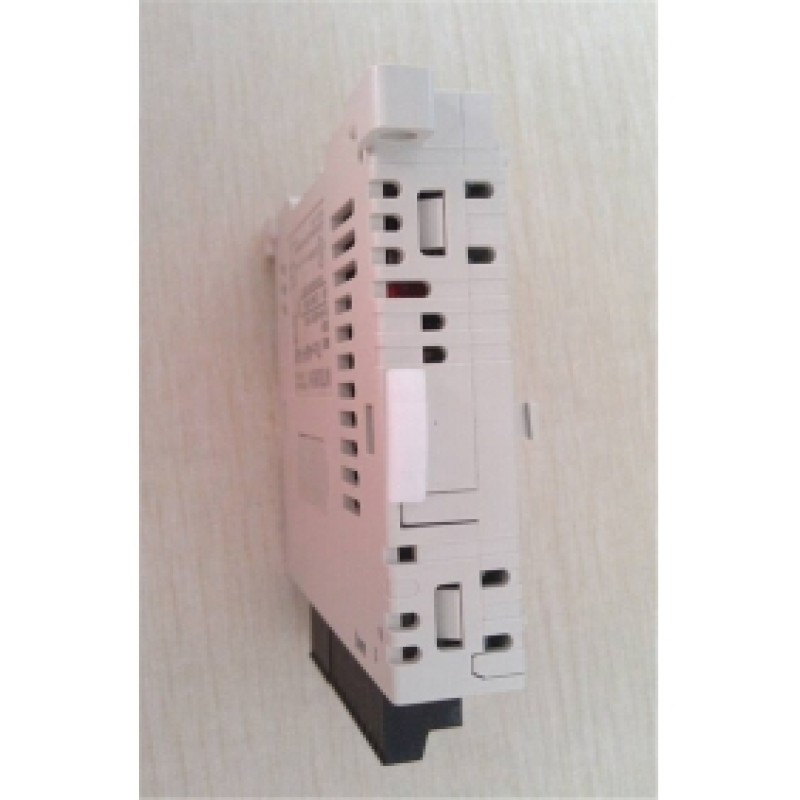

FX3U-4AD-PT-ADP Mitsubishi PLC Analog Special Adapter Original Brand NEW
Introduction
FX3U-4AD-PT-ADP (hereinafter called PT-ADP) is an analog special adapter for measuring temperature via four channels (three-wire sensors) of a connected Pt100 platinum resistance thermometer
Applicable PLC
Model name | Applicability |
FX3U Series PLC | Ver. 2.20 or later (from first production) |
FX3UC Series PLC | Ver. 1.30 or later (from the production manufactured in August, 2004 with SER No. 48****) |
Power Supply Specifications
Item | Specification |
A/D conversion circuit driving power | 24V DC +20%/-15%, 50mA for 24V DC Connect a 24V DC power supply to the terminal block. |
Interface driving power | 5V DC, 15mA 5V DC power is supplied from the internal power supply of main unit. |
Performance Specifications
Item | Description | |
Centigrade (°C) | Fahrenheit (°F) | |
Input signal | 3-wire platinum resistance thermometer sensor Pt100 JIS C 1604-1997 | |
Rated temperature range | -50°C to +250°C | -58°F to +482°F |
Digital output | -500 to +2500 | -580 to +4820 |
Resolution | 0.1°C | 0.18°F |
Total accuracy | +-0.5% for full scale (when ambient temperature is 25°C+-5°C) +-1.0% for full scale (when ambient temperature is in the range o to 55°C) | |
A/D conversion time | 200us (The data will be updated at every scan time of the PLC.) | |
Insulation method | The photo-coupler is adopted to insulate the analog input are from the PLC. The DC/DC converter is adopted to insulate the driving power supply line from the analog input area. Channels are not insulated from each other | |
Occupied points | 0 point (This number is not related to the maximum number input/output points of the PLC.) | |
External Dimensions
