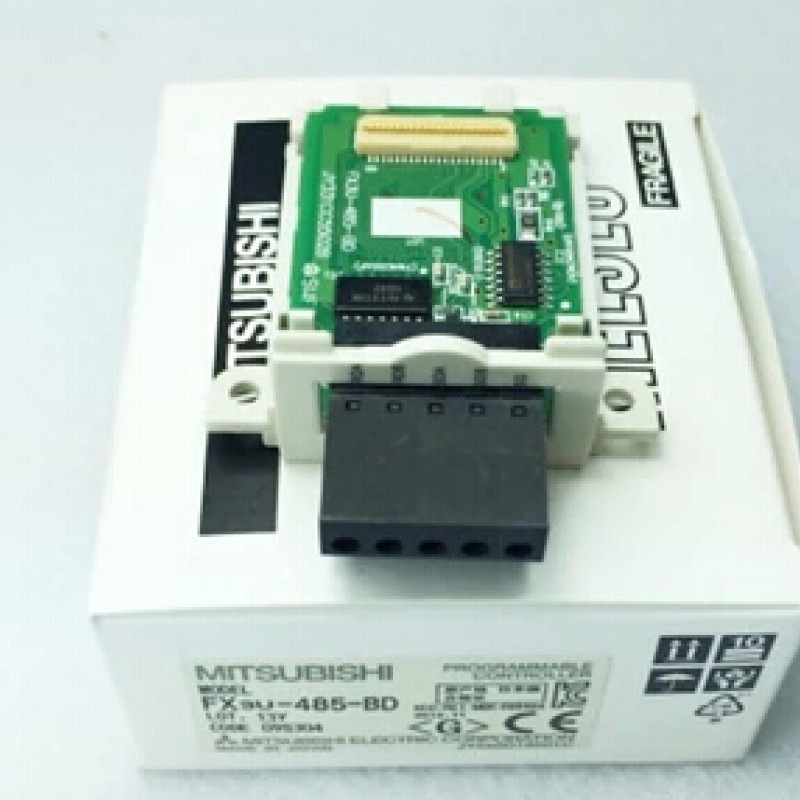

FX3U-485-BD Mitsubishi PLC Expansion Board Original Brand NEW
Introduction

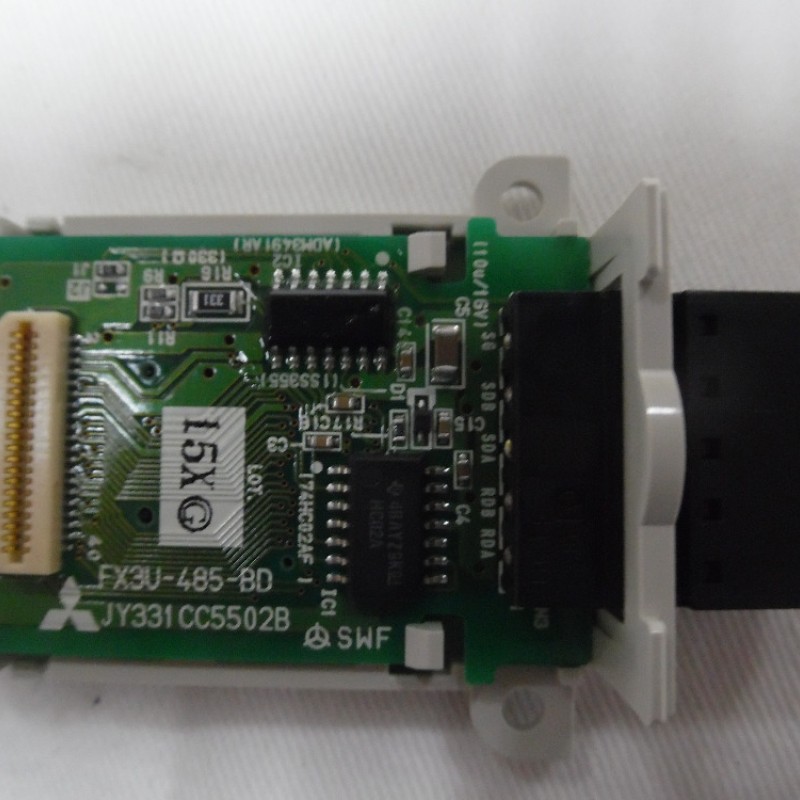

FX3U-485-BD is an expansion board equipped with an European terminal block for RS-485 communication. The FX3U-485-BD exchanges data with RS-485 devices.
Applicable PLC
Model name | Applicability |
FX3USeries PLC | Ver.2.20 or later (from first production)
|
FX3UC-32MT-LT | Ver.1.00 or later (from first production) |
FX3UC-32MT-LT-2 | Ver.2.53 or later (from first production |
Note1 The expansion board cannot be connected to FX3UCSeries PLCs other than the
FX3UC-32MT-LT(-2).
2 Only one expansion board can be used per main unit.
Additional expansion boards such as the FX3U-232-BD, FX3U-422-BD or FX3U-485-BD cannot be installed/used together with the FX3U-485-BD
Power supply specifications
5V DC, 40 mA is supplied from the internal power supply of the main unit.
Communication specifications
Item | Specification |
Transmission standard | In conformance to RS-485/RS-422 |
Maximum transmission distance | 50 m (164ft) maximum |
Communication method | Half-duplex |
Communication format | Non-Protocol Communication, Computer Link(dedicated protocol format 1 and 4), Parallel Link, and N:N network |
Baud rate | Non-Protocol Communication, Computer Link: 300/600/1200/2400/4800/9600/ 19200 bps Parallel Link: 115200bps N:N network: 38400 bps |
Insulation | Not insulated (Between communication line and CPU) |

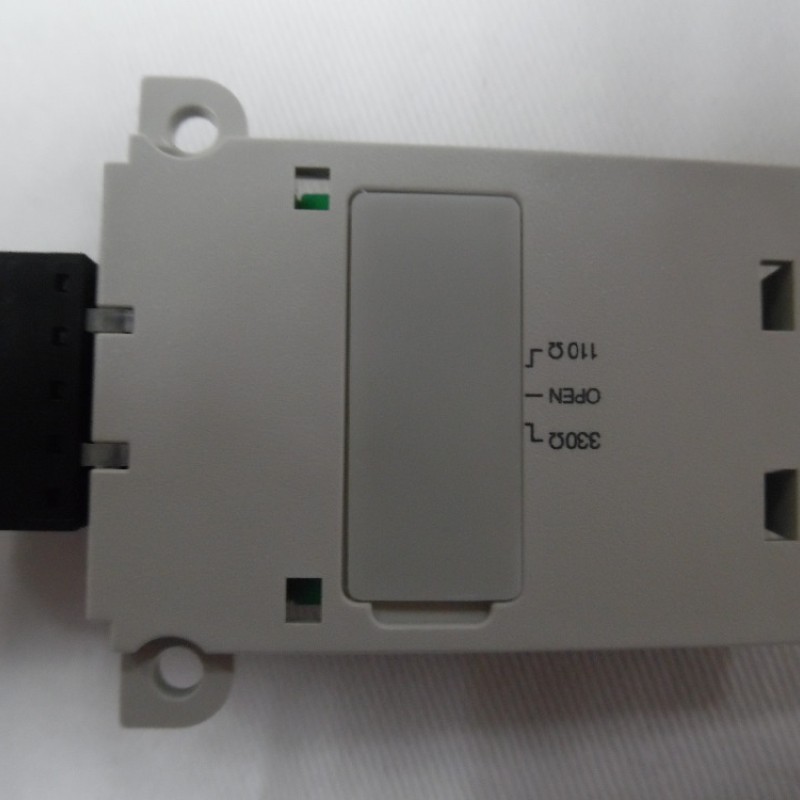

External Dimensions and Part Names
