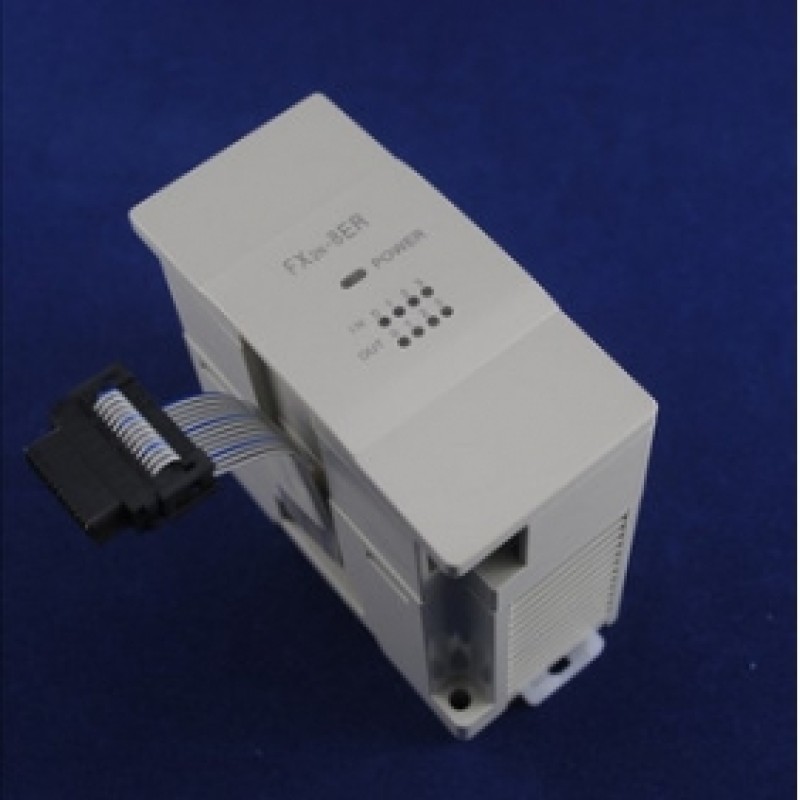

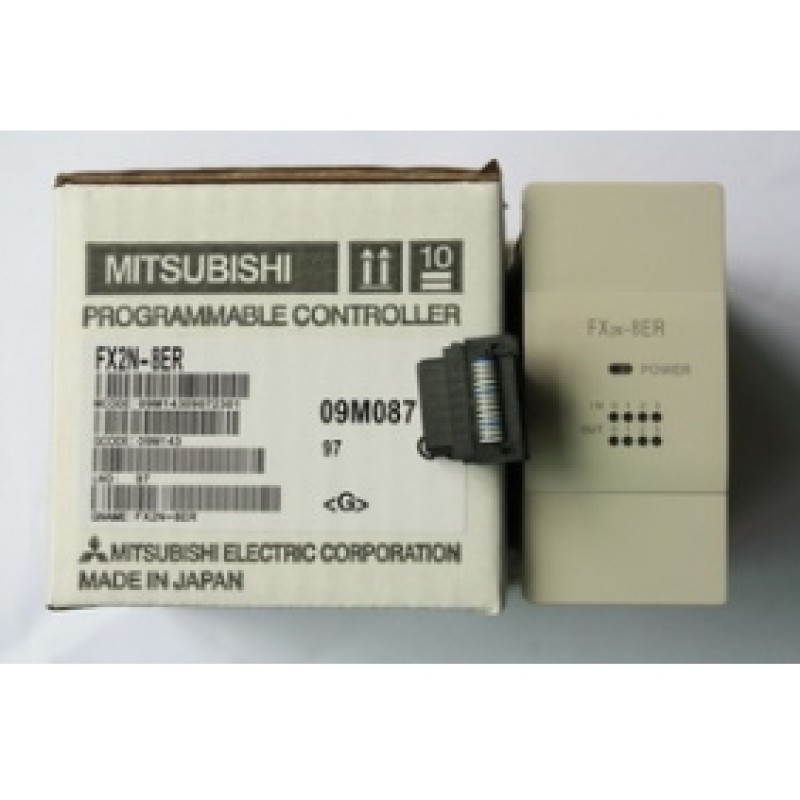

FX2N-8ER Mit PLC 24VDC Extension Unit 4 DI 4 DO Relay Module New

Model Number

FX2N-8ER-ES/UL

FX2N-8EX-ES/UL

FX2N-8EX-UA1/UL

FX2N-8EYR-ES/UL

FX2N-8EYT

FX2N-8EYTESS/UL

Stocked Item

S

S

S

S

S

S

Rating

UL • cUL • CE

UL • cUL• CE

UL • cUL

UL • cUL • CE

—

UL • cUL

Applicable PLCs

FX3U / FX3UC / FX3G / FX1N

Integrated Inputs / Outputs

8

8

8

8

8

8

Power Supply

All modular extension units are powered by the base unit

Integrated Inputs

4 (24 VDC)

8 (24 VDC)

8 (24 VDC)

--

--

--

Integrated Outputs

4

--

--

8

8

8

Output Type

Relay

--

--

Relay

Sink Trans

Source Trans

ON Voltage (Max.)

Relay version: < 240 VAC, < 30 VDC; Transistor version: 5 – 30 VDC

Max.

Output

Current

Per Output (A)

2

--

--

2

0.5

0.5

Per 4 Outputs (A)

8

--

--

8

0.8

0.8

5VDC Current Consumption (mA)

25

25

25

30

30

30

Weight (kg)

0.2

0.2

0.2

0.2

0.2

0.2

Dimensions (W x H x D) mm

43 x 90 x 87

43 x 90 x 87

43 x 90 x 87

43 x 90 x 87

43 x 90 x 87

43 x 90 x 87

Model Number

FX2N-16EX-ES/UL

FX2N-16EYR-ES/UL

FX2N-16EYS

FX2N-16EYT

FX2N-16EYTESS/UL

Stocked Item

S

S

S

S

S

Rating

UL • cUL • CE

UL • cUL • CE

UL • cUL

--

UL • cUL

Applicable PLCs

FX3U / FX3UC / FX3G / FX1N

Integrated Inputs / Outputs

16

16

16

16

16

Power Supply

All modular extension units are powered by the base unit

Integrated Inputs

16 (24 VDC)

--

--

--

--

Integrated Outputs

--

16

16

16

16

Output Type

--

Relay

Triac (SSR)

Sink Transistor

Source Trans

ON Voltage (Max.)

Relay version: < 240 VAC, < 30 VDC; Transistor version: 5 – 30 VDC; Triac version: 85 – 242 VAC

Max.

Output

Current

Per Output (A)

--

2

0.3

0.5

0.5

Per 4 Outputs (A)

--

8

0.8

0.8

1.6

5VDC Current Consumption (mA)

45

60

160

180

180

Weight (kg)

0.3

0.3

0.3

0.3

0.3

Dimensions (W x H x D) mm

40 x 90 x 87

40 x 90 x 87

40 x 90 x 87

40 x 90 x 87

40 x 90 x 87
