Ask a Question About This Product
- Stock: In Stock
- Model: FX2N-232-BD
- Weight: 2.00kg
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.
Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.
Introduction

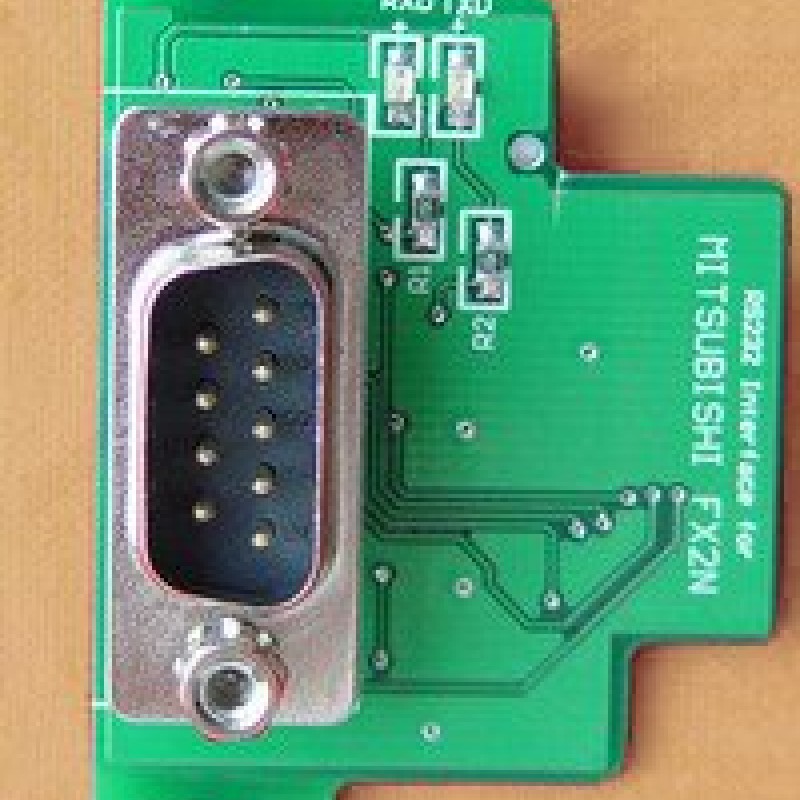

The 232BD is an RS-232C communication board with a 9-Pin D-Sub. It is an insulated unit for signal exchange. Connected to the main unit of the FX2N series PLc
It enables serial data transfer between the PLC and equipment via an RS-232C port.
Environmental specifications
The environment specifications are equivalent to those fo the PLC main unit.
Power supply specifications
5VDC, 20mA is supplied as the power from the PLC.
Performance specifications
Item | Description |
Transmission standard | In conformance to RS-232C |
Maximum transmission distance | 15m (49ft) maximum |
External equioment connection method | D-subm 9-pin type(pin socket: manufactured bu JST Mfg.)with JES-9P-2A3A(#4-40UNC, inch screw thread type) |
Indication(LED) | RXD TXD |
Communication method | Full-duplex(When the version of PLC(FX2N) is Ver.2.00 or later)/Half-duples(When the version of PLC(FX2N) is earlier than Ver.2.00) |
Communication Procedure | Non-procedure, dedicated protocol 1 procedure, dedicated protocol 4 procedure, protocol for programming tool |
