2AI 5V DC Mitsubishi FX3G-2AD-BD Expansion Boards for upgrade FX1N Original Brand New

2AI 5V DC Mitsubishi FX3G-2AD-BD Expansion Boards for upgrade FX1N Original Brand New
2AI 5V DC Mitsubishi FX3G-2AD-BD Expansion Boards for upgrade FX1N Original Brand New
2AI 5V DC Mitsubishi FX3G-2AD-BD Expansion Boards for upgrade FX1N Original Brand New
2AI 5V DC Mitsubishi FX3G-2AD-BD Expansion Boards for upgrade FX1N Original Brand New
2AI 5V DC Mitsubishi FX3G-2AD-BD Expansion Boards for upgrade FX1N Original Brand New
2AI 5V DC Mitsubishi FX3G-2AD-BD Expansion Boards for upgrade FX1N Original Brand New
2AI 5V DC Mitsubishi FX3G-2AD-BD Expansion Boards for upgrade FX1N Original Brand New
2AI 5V DC Mitsubishi FX3G-2AD-BD Expansion Boards for upgrade FX1N Original Brand New
2AI 5V DC Mitsubishi FX3G-2AD-BD Expansion Boards for upgrade FX1N Original Brand New
FX3G-2AD-BD Mitsubishi PLC Expansion Board 0-10VDC Original Brand NewIntroductionThe FX3G-2AD-BD boa... Read More
$87.00
Ex Tax: $87.00
  • Stock: In Stock
  • Model: 2AI 5V DC
  • Weight: 0.50kg
1. We typically ship items within three business days after payment is received.
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.

Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.
We accept many payments,include Paypal,Bank Transfer etc
Tags: 2AI 5V DC

FX3G-2AD-BD Mitsubishi PLC Expansion Board 0-10VDC Original Brand New

Introduction

The FX3G-2AD-BD boards for analog input(hereinafter called 2AD-BD) is an expansion board to add two analog input points.

Performance Specifications

Item

Specifications

Voltage input

Current input

Analog input range

0 to 10V DC

(Input resistance: 198.7kohm)

4 to 20mA DC

(Input resistance: 250 ohm)

Maximum absolute input

-0.5V,+15V

2mA,+30mA

Digital  output

12 bits, binary

11 bits, binary

Total  accuracy

+-0.5% (+-50mV) for full scale

of10V (when ambient

temperature is 25°C±5°C)

+-1.0% (+-100mV) for full scale

of 10V (when ambient

temperature is 0°C to 55°C)

+-0.5% (+-80μA) for full scale

of 16mA (when ambient

temperature is 25°C+-5°C)

+-1.0% (+-160μA) for full

scale of 16mA (when

ambient temperature is 0°C

to 55°C)

A/D conversion time

180us(The data will be updated at every scan time of the PLC.)

Insulation method

No insulation between each channel or the PLC.

Occupied points

0 point (This number is not related to the maximum number of input/

output points of the PLC.)

Applicable PLC

Model name

Applicability

FX3 G Series

PLC

Ver. 1.10 or later

The version number can be checked by monitoring D8001 as the last three digits indicate it.

The number of connectable expansion boards varies depending on the main unit as follows:

FX3G-14M…, 24M… Main units: 1 unit

FX3G-40M…, 60M… Main units: 2 units

Never stack up two or more expansion boards

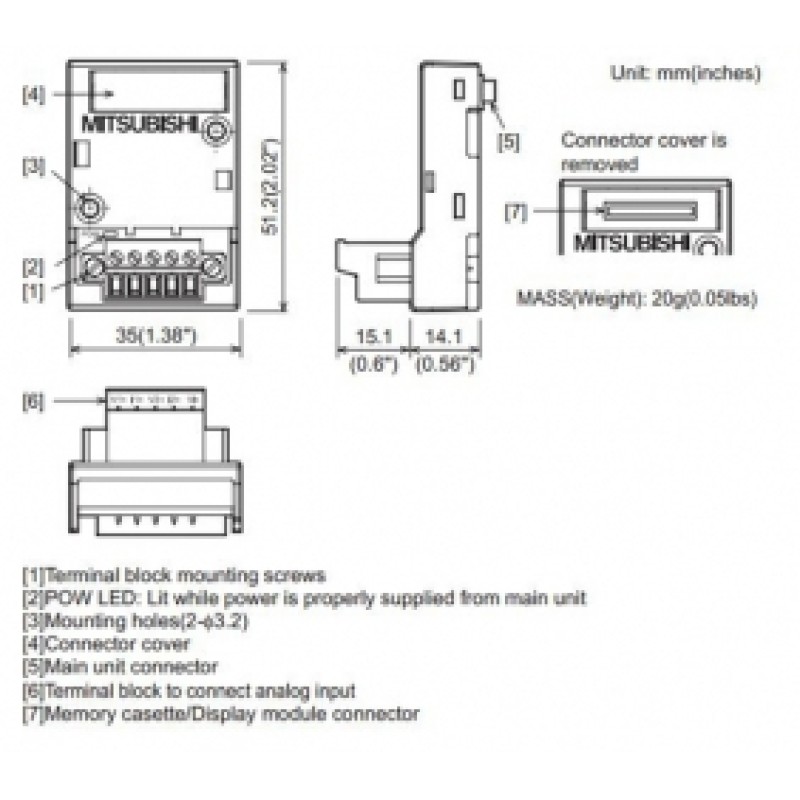

External Dimensions, Part Name
