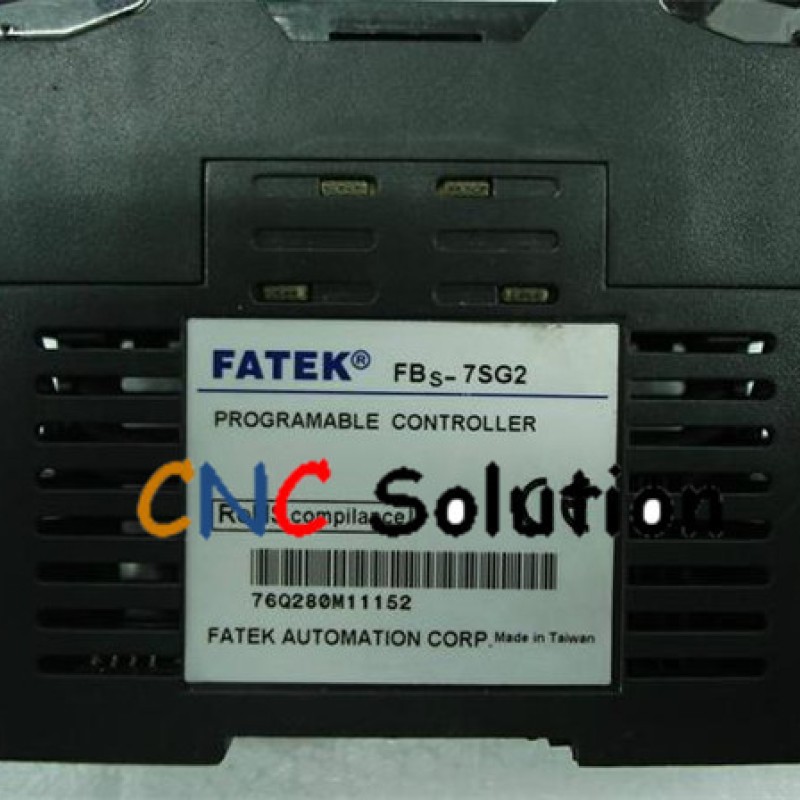

FATEK PLC FBs-7SG2 LED

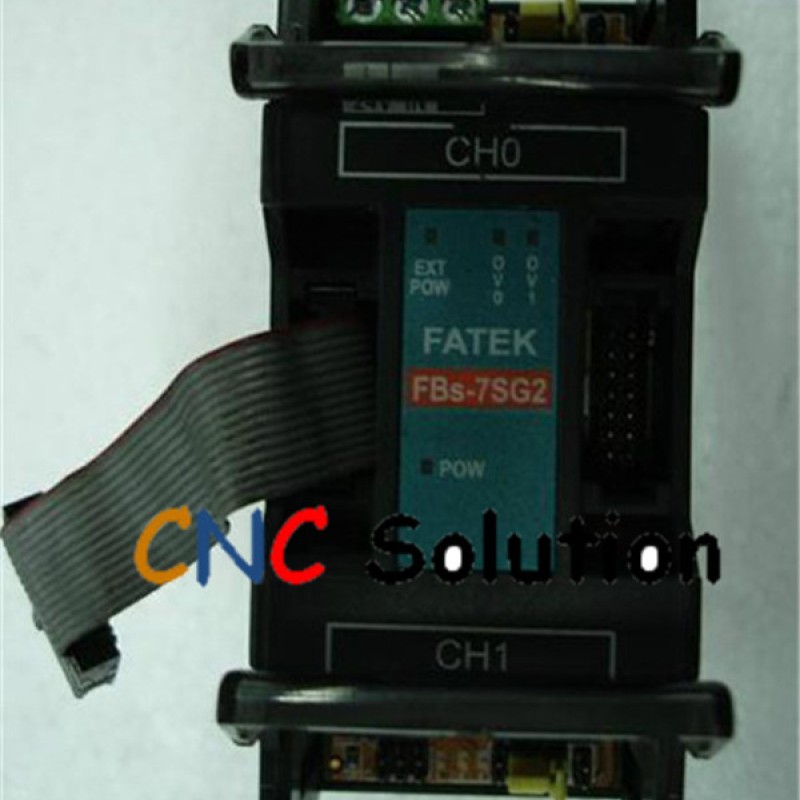

FBs-7SG2 LED module
Product description:
2-channel LED display module
7 paragraph 16 words or 16, paragraph 8
- Product performance table -
Specification | FBs - 7SG2
| |||
Display Mode | Decoding display mode | 4bit can display word 7-segment digital display, can display only 0 ~ 9, E, H, C, T, and does not shine 16 FBsPLC pre-decoding font | ||
| Non-decoding display mode | Each of the Festival of Lights are a bit control, a 7-segment digital 8 bit control (including the decimal point), you can display a combination of any of the Festival of Lights (such as rice font letters, numbers) or individual LED display | ||
Display words (Points) | 2 channel, 7-segment 16 word / paragraph 16 words or 128 individual LED | |||
Display update cycle | 10mS max | |||
LED driver Dynamic specifications | Drive current | 40mA / segment | ||
| Display | 1 to 8 characters multitasking scan display | ||
| Drive Voltage | Low pressure | 5VDC (for a 10% boost) | |
|
| High pressure | 7.5V, 10V, 12.5V three choices (for 10% boost) | |
| Drop fine tuning | 0.6V, 1.2V, 1.8V three adjustable | ||
Driver IC overvoltage indication | Each channel has independent overvoltage (0.V.) is indicating where it makes sense (to be in TestMode) | |||
Isolation method | Transformer (power) and optocoupler (signal) isolation. 500VAC, 1 minute | |||
Input power | 24VDC15% / +20%, static consumption <2VA dynamic consumption with the show increased | |||
Wiring institutions | 16-core flat cable, 2.54mm Box Header Connector | |||
Dimensions (W × H × D) | 40 × 90 × 80mm | |||
