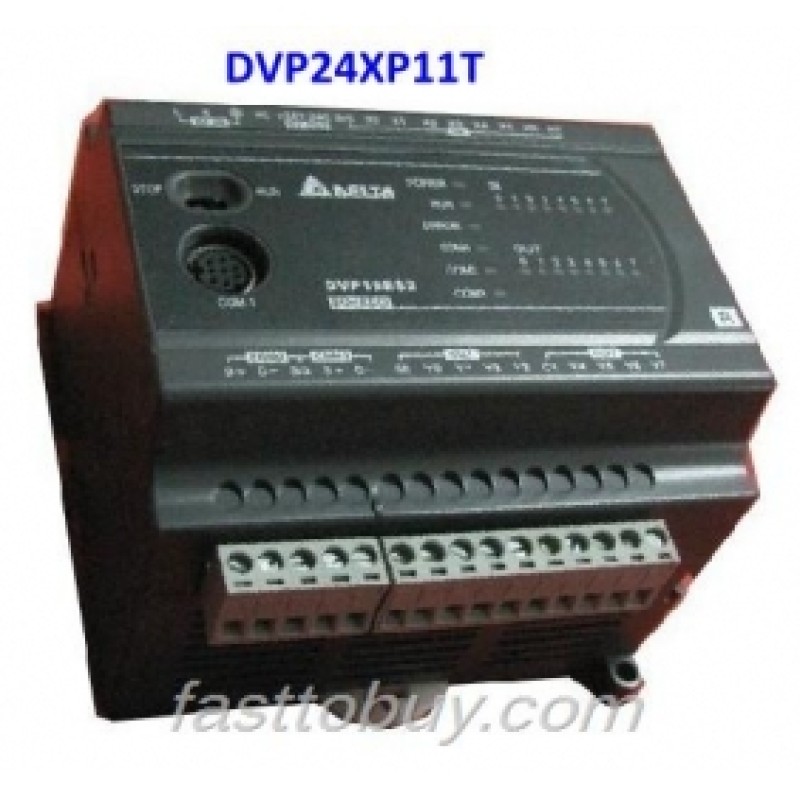

Delta PLC ES series Digital Extension module DVP24XP11T 24-point 16AI/8AO (NPN transistor) DC power New

1 phase 1

1 phase 2

2 phase 2

group

Bandwidth

group

Bandwidth

group

Bandwidth

2/2

20kHz/10kHz

1

20kHz

1

4kHz

     Model

Item

DVP-

14ES00_

DVP-

24ES00_

DVP-

30ES00_

DVP-

32ES00_

DVP-

40ES00_

DVP-

60ES00_

DVP-

20EX00_

DVP-

24ES11_

DVP-

20EX11_

Power Supply

Voltage

100 ~ 240V AC (-15% ~ 10%), 50/60Hz + - 5%

24V DC (-15% ~

10%)

Operation

Specification

The PLC start to operate at power supply of 95 ~ 100V AC. If the voltage of

power supply drops to 70V AC, the PLC will stop. Maximum power loss time is 10ms or less.

Maximum power loss

time is 5ms or less.

Fuse

2A/250V AC

Power

Consumption

20VA

25VA

30VA

30VA

30VA

35VA

30VA

6.5W

8W

DC24V Supply

Current

400mA

/

Power

Protection

DC24V output short circuit

DC24V input polarity

Voltage

Withstand

1,500 VAC (Primary-secondary), 1,500V AC (Primary-PE), 500V AC (Secondary-PE)

Insulation

Resistance

> 5 M Ohm at 500V DC (Between all inputs/outputs and earth)

Noise Immunity

ESD: 8KV Air Discharge

EFT: Power Line: 2KV, Digital I/O: 1KV, Analog & Communication I/O: 250V

RS: 26MHz ~ 1GHz, 10V/m

Grounding

The diameter of grounding wire cannot be smaller than the wire diameter of terminals L and N (All DVP

units should be grounded directly to the ground pole).

Environment

Operation: 0°C ~ 55°C (temperature), 50 ~ 95% (humidity), Pollution degree2

Storage: -25°C ~ 70°C (temperature), 5 ~ 95% (humidity)

Vibration /

Shock

Resistance

Standard: IEC61131-2, IEC 68-2-6 (TEST Fc)/IEC61131-2 & IEC 68-2-27 (TEST Ea)

Weight (g)

400

552

580

580

596

750

536

414

386

Input Point Electrical Specifications

Input Point Type

Digital Input

Input Type

DC (SINK or SOURCE)

Input Current

24VDC 5mA

Active Level

(Analog input resolution)

Off → On, X0, X1: 18.5V DC and above

X2 ~ X43: 16.5V DC and above

On → Off, X0 ~ X43 below 8V DC

Reaction Time

(Conversion Sampling Time)

About 10ms (An adjustment range of 0 ~ 15ms could be selected through D1020 and D1021)

Output Point Electrical Specifications

Output Point Type

Relay-R

Transistor-T

Current Specification

2A/1 point (5A/COM)

55°C 0.1A/1point, 50°C 0.15A/1 point

45°C 0.2A/1 point, 40°C 0.3A/1 point (2A/COM)

Voltage Specification

Below 250V AC, 30V DC

30V DC

Maximum Load

75VA (Inductive)

9W/1 point

75VA (Inductive)

Reaction Time

About 10ms

Off → On 20us, On → Off 30us
