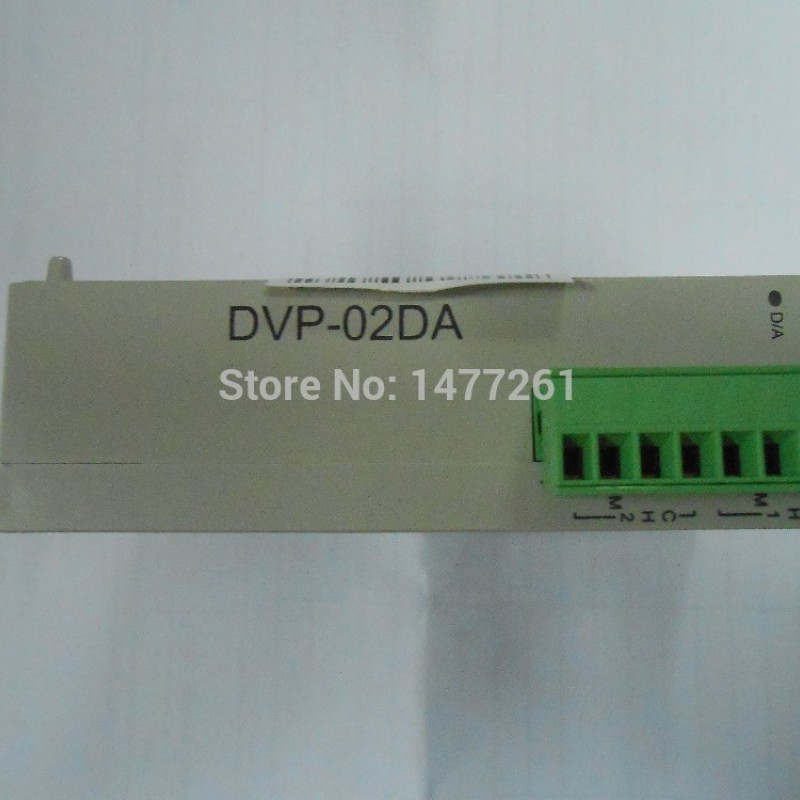

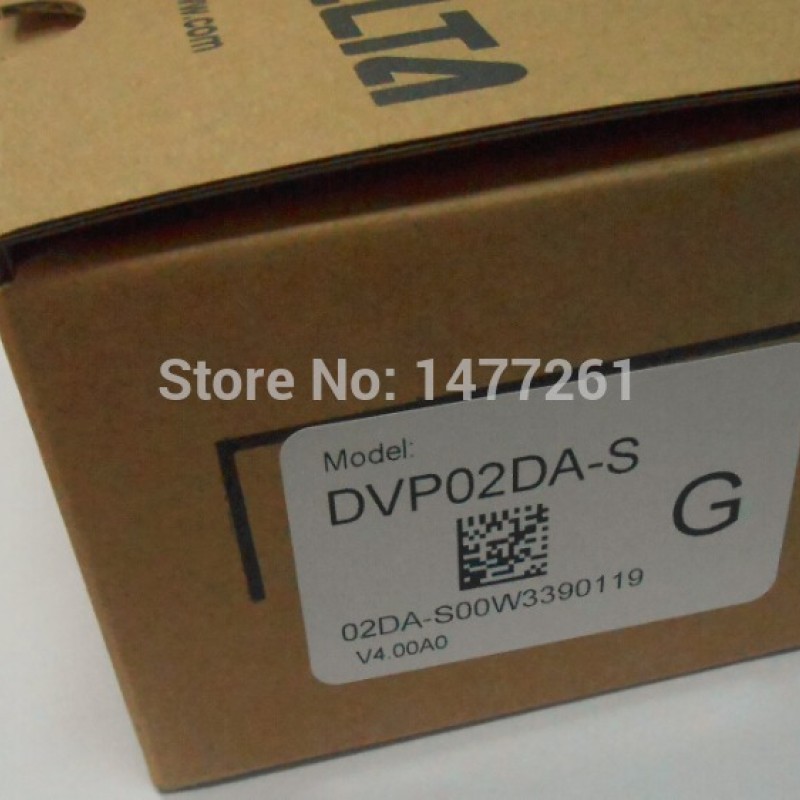

DVP02DA-S Delta PLC 2 point 12-bit resolution Analog I/O module Original brand new

Digital/Analog (2D/A) module

Voltage output

Current output

Power supply voltage

24VDC(20.4VDC ~ 28.8VDC) (-15% ~ +20%)

Analog input channel

2 channels/each module

Analog output range

0 ~ 10V

0 ~ 20mA

Digital data range

0 ~ 4,000

0 ~ 4,000

Resolution

12 bits (1LSB=2.5mV)

12 bits (1LSB=5µA)

Output impedance

0.5?or lower

Overall accuracy

+-0.5% of full scale of 25°C (77°F).

+-1% of full scale during 0 ~ 55°C (32 ~ 131°F).

Response time

3ms × channels

Max. output current

--

0 ~ 500?

Digital data format

2’s complementary of 16-bit, 13 significant bits.

Isolation method

Isolation between digital area and analog area. Butno isolation among channels.

Protection

Voltage output has short circuit protection but a long period of short circuit

may cause internal wire damage and current output break.

Communication mode

(RS-485)

Modbus ASCII/RTU Mode. Communication baud rate of 4,800/9,600/19,200/ 38,400/ 57,600/115,200. For ASCII mode, format is 7bits, even, 1 stop bit (7, E, 1), while RTU mode format is 8 bits, even, 1 stop bit (8, E, 1). The RS-485 is disabled when the DVP02AD-S is connected in series with an MPU.

Connect to DVP-PLC MPU in series

If DVP02DA-S modules are connected to MPU, the modules are numbered from 0 - 7. 0 is the closest and 7 is the furthest to the MPU. 8 modules is the max and they DO NOT occupy any digital I/O points of the MPU.

Max. rated power consumption

24VDC (20.4VDC ~ 28.8VDC) (-15% ~ +20%), 3W, supplyfrom external power

Vibration/shock immunity

Standard: IEC 61131-2, IEC 68-2-6 (TEST Fc)/IEC 61131-2 & IEC 68-2-27 (TEST Ea)
