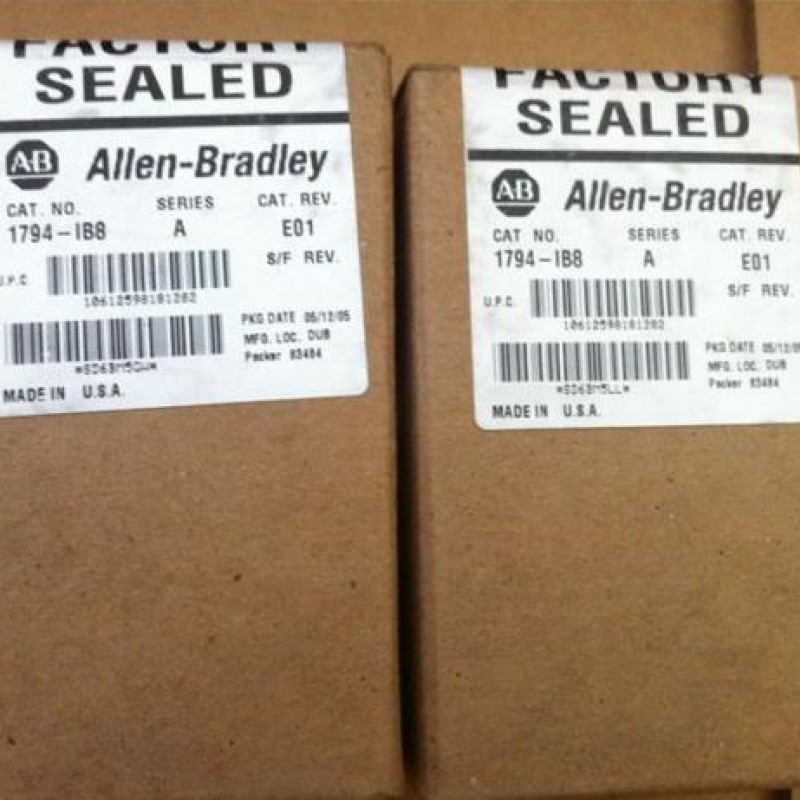

1794-IB8 AB Allen-Bradley PLC Digital DC Input Module 8 Current Sinking 1794 Series Original brand new

1794-IB8 AB PLC Digital DC Input Module 8 Current Sinking 1794 Series Original brand new

Features

Modules are available in densities ranging from 8 to 32 points.Digital I/O modules cover a wide electrical range: 120V AC: input, output and isolated input, output modules; 8 and 16 point220V AC: input and output modules; 8 and 16 point5V DC: TTL input and output modules, 16 point24V DC: input, output, and combination modules; sink or source; protected; electronically fused; diagnostic; 8, 16, and 32 point48V DC: sink input, source output modules; 16 point125V DC: sink input module; 16 pointRelay: sink/source, 8 pointIsolated inputs and outputs can be used in applications such as motor control centers, where individual control transformers are used.Protected (P) outputs have electronic protection, which acts to shut the module down in reaction to a short circuit, overload, or over-temperature condition. Recovery from shutdown is automatic upon removal of the output fault. No fault status is provided to the processor.Electronic fused (EP) module acts to open the output when a fault occurs. The "fuse" can be reset by operating a pushbutton, via software, or by cycling the input power. Fault status is provided to the processor.Diagnostic (D) modules detect, indicate, and report the following faults: open input or output field devices or wiringshorted output field devicesshorted input or output wiringreverse polarity of user supply wiringSelectable input filter times from <1…60 ms.LED for each channel indicating status of: corresponding input deviceoutput signalConformal coated (K) versions of standard modules.Extreme environment (XT) versions of standard modules

FLEX Digital DC Input Modules

Cat. No.	Number of Inputs	Voltage, On-State Input, Nom.	Voltage Range, On-State Input	Current, Off-State Input	Power Dissipation, Max.	Terminal Base Unit
1794-IG16	16  TTL	0V	-0.2V DC…0.8V DC	4.1 mA at 5V DC (3.7 mA nom) max	1.4 W at 5.5V DC	1794-TB3, 1794-TB3S
1794-IB8	8 current sinking	24V DC	10V DC…31.2V DC	1.5 mA min	3.5 W at 31.2V DC	1794-TB3, 1794-TB3S
1794-IB16	16 current sinking	24V DC	10V DC…31.2V DC	1.5 mA min	6.1 W at 31.2V DC	1794-TB3, 1794-TB3S
1794-IB16XT					2 W at 31.2V DC	1794-TB3, -TB3S, TB3SK
1794-IB16D			10V DC…31.2V DC		8.5 W at 31.2V DC	1794-TB32, 1794-TB32S
1794-IV16	16 current sourcing	24V DC	10V DC…31.2V DC	1.5 mA min	5.7 W at 31.2V DC	1794-TB2, 1794-TB3, 1794-TB3S, 1794-TBK
1794-IB32	32 current sinking (2 groups of 16)	24V DC	19.2V DC…31.2V DC	1.5 mA min	6.0 W at 31.2V DC	1794-TB32, 1794-TB32S
1794-IV32	32 current sourcing(2 groups of 16)	24V DC	19.2V DC…31.2V DC	1.5 mA min	6.0 W at 31.2V DC	1794-TB32, 1794-TB32S
1794-IC16	16 current sinking	48V DC	30V DC…60V DC	1.5 mA min	6.4 W at 60V DC	1794-TB3, 1794-TB3S
1794-IH16	16 current sinking	125V DC	90V DC…146V DC	0.8 mA min	6 W at 146V DC	1794-TB3, 1794-TB3S
Catalog numbers ending in: (K) = Conformal Coated, (D) = includes diagnostics, (XT) extreme environment.
