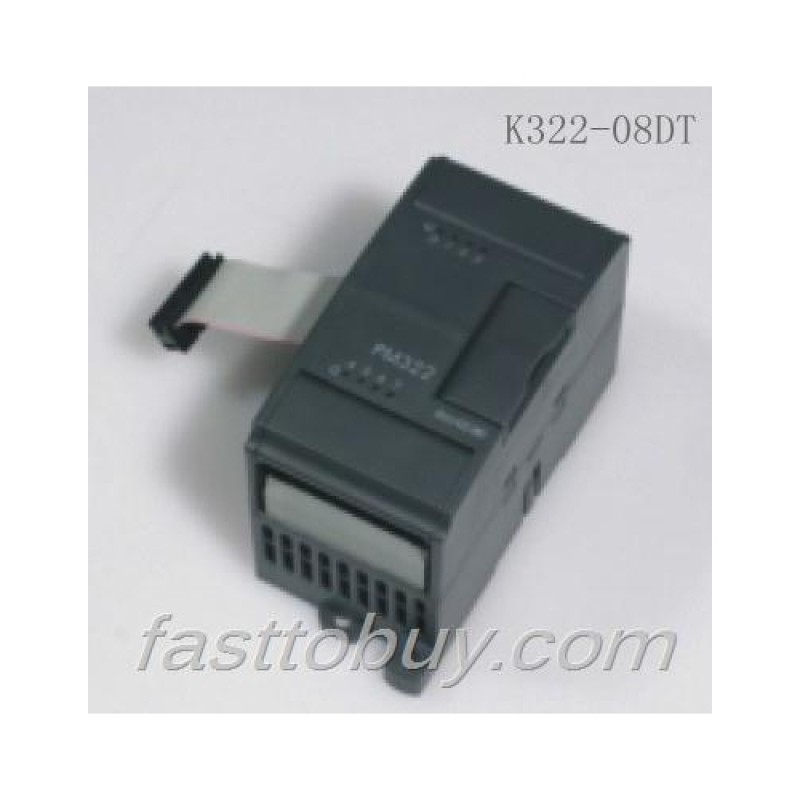

PLC Expansion I/O 8 DO transistor KINCO K322-08DT Module New

PLC Expansion I/O 8 DO transistor KINCO K322-08DT Module New
PLC Expansion I/O 8 DO transistor KINCO K322-08DT Module New
PLC Expansion I/O 8 DO transistor KINCO K322-08DT Module New
PLC Expansion I/O 8 DO transistor KINCO K322-08DT Module New
PLC Expansion I/O 8 DO transistor KINCO K322-08DT Module New
Kinco K3 PLC Expansion I/O Module PM322 Series K322-08DT NIB 8 Transistor Outputs DC24V New If you n... Read More
$56.00
Ex Tax: $56.00
  • Stock: In Stock
  • Model: K322-08DT
  • Weight: 1.50kg
1. We typically ship items within three business days after payment is received.
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.

Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.
We accept many payments,include Paypal,Bank Transfer etc
Tags: K322-08DT
Kinco K3 PLC Expansion I/O Module PM322 Series K322-08DT NIB 8 Transistor Outputs DC24V New

If you need more than 10pcs and want to get better wholesale price, please feel free to contact us by following:
email:[email protected]
Tel:0086-574- 88333153
We will quote you our best price to you in 24hours.

Features:

K322-xxDT

*8/16 Transistor Output Channels, Totally Classified into 2/4 Groups, and Four Channels in Each Group;

*Rated Power Supply Voltage: DC24V;

*Rated Output Voltage: DC24V; Maximum Output Current of Each Channel: 750mA, Source Type;

*Power Input Protection;

*Inductive Load Output Protection;

*Short Circuit Protection (Protected If the Output Current is Greater than 3A);

*Parallel Connection of Channels in the Same Group;

*Photoelectric Isolation Between Field Signals and Internal Circuit.

Model

K322

K322-08DT

K322-08XR

K322-16DT

K322-16XR

Number of Input Channels

8 (4 Channels/Group)

16 (4 Channels/Group)

Output Type

Source

-

Source

-

Rated Power Supply Voltage

DC24V

Maximum: DC30V/AC270V

DC24V

Maximum: DC30V/AC270V

Rated Output Voltage

DC24V

Maximum Output Current

750Ma@24VDC

3A(DC 30V/AC270V)

750mA@24VDC

3A(DC 30V/AC270V)

Output Sink Current

Maximum: 0.5µA

-

Maximum: 0.5µA

-

Output Impedance

Maximum: 0.2Ω

-

Maximum: 0.2Ω

-

Output Delay

ON Delay

0.3-5 µs

5ms (Typical Value)

0.3-5µs

5ms (Typical Value)

OFF Delay

5µs

3ms(Typical Value)

5µs

3ms (Typical Value)

Current Loss of Expansion Bus

5V

<62.6mA

<67.6mA

<93.6mA

<113.6mA

24V



<42mA



<82mA

Isolation Between Output and Internal Logic Circuit

Mode

Photoelectric Coupler

Relay

Photoelectric Coupler

Relay

Voltage

1500VAC/1 minuteRelay

2000Vrms

1500VAC/1 minuteRelay

2000Vrms

750Vrms

750Vrms

Inductive Load Output Protection

Available

Short Circuit Protection

Available (Protected If the Output Current of Each Group is Greater than 3A)

Parallel Connection of Channels

Available

Status Indication

A Green LED Indicates Signal “1” of Each Channel

Occupied Address Space

DI Image Area

-









DO Image Area

1 byte

2 byte

Dimensions and weight

Dimensions (LXWXH)

114?50?70mm

Net Weight

125g

150g

170g

235g
