- Stock: In Stock

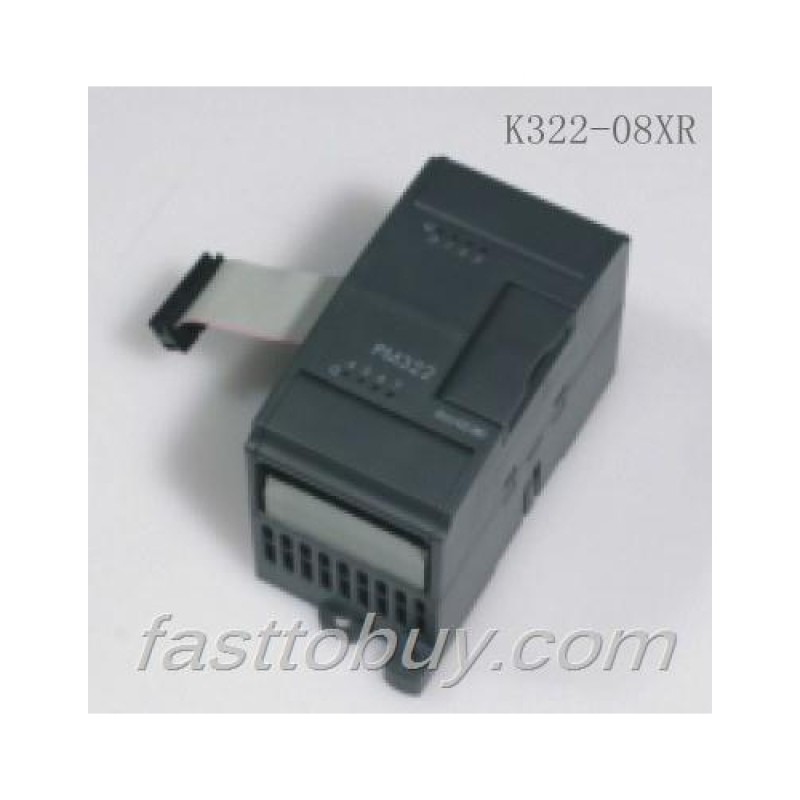

- Model: K322-08XR
- Weight: 1.50kg
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.
Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.
If you need more than 10pcs and want to get better wholesale price, please feel free to contact us by following:
email:[email protected]
Tel:0086-574- 88333153
We will quote you our best price to you in 24hours.
Features:
K322-xxXR
*8/16 Relay Output Channels, Totally Classified into Two Groups, and Four Channels in Each Group;
*Maximum Power Supply Voltage: DC30V/AC270V;
*Maximum Output Current of Each Channel: 3A (DC30V/AC270V);
*Independent LED Indication for Each Channel.
Model | K322 | |||||
K322-08DT | K322-08XR | K322-16DT | K322-16XR | |||
Number of Input Channels | 8 (4 Channels/Group) | 16 (4 Channels/Group) | ||||
Output Type | Source | - | Source | - | ||
Rated Power Supply Voltage | DC24V | Maximum: DC30V/AC270V | DC24V | Maximum: DC30V/AC270V | ||
Rated Output Voltage | DC24V | |||||
Maximum Output Current | 750Ma@24VDC | 3A(DC 30V/AC270V) | 750mA@24VDC | 3A(DC 30V/AC270V) | ||
Output Sink Current | Maximum: 0.5µA | - | Maximum: 0.5µA | - | ||
Output Impedance | Maximum: 0.2Ω | - | Maximum: 0.2Ω | - | ||
Output Delay | ON Delay | 0.3-5 µs | 5ms (Typical Value) | 0.3-5µs | 5ms (Typical Value) | |
OFF Delay | 5µs | 3ms(Typical Value) | 5µs | 3ms (Typical Value) | ||
Current Loss of Expansion Bus | 5V | <62.6mA | <67.6mA | <93.6mA | <113.6mA | |
24V |
| <42mA |
| <82mA | ||
Isolation Between Output and Internal Logic Circuit | Mode | Photoelectric Coupler | Relay | Photoelectric Coupler | Relay | |
Voltage | 1500VAC/1 minuteRelay | 2000Vrms | 1500VAC/1 minuteRelay | 2000Vrms | ||
750Vrms | 750Vrms | |||||
Inductive Load Output Protection | Available | |||||
Short Circuit Protection | Available (Protected If the Output Current of Each Group is Greater than 3A) | |||||
Parallel Connection of Channels | Available | |||||
Status Indication | A Green LED Indicates Signal “1” of Each Channel | |||||
Occupied Address Space | DI Image Area | - |
|
|
|
|
DO Image Area | 1 byte | 2 byte | ||||
Dimensions and weight | Dimensions (LXWXH) | 114?50?70mm | ||||
Net Weight | 125g | 150g | 170g | 235g | ||
