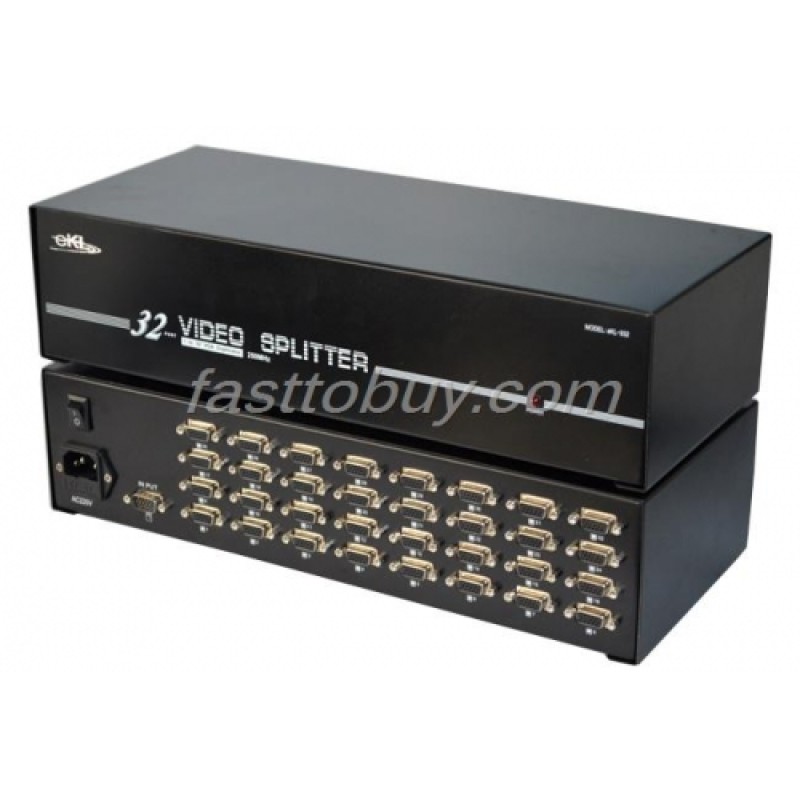

VGA splitter series 1 divided 32 250MHZ bandwidth One year quality assurance NEW

If you need more than 10pcs and want to get better wholesale price, please feel free to contact us by following:
email:[email protected]
Tel:0086-574- 88333153
We will quote you our best price to you in 24hours.

1 divided 32 VGA splitter

Description:

The maximum resolution: 1920 × 1440, a host can be connected to pick 32 displays 32 pictures.

Bandwidth: 250MHZ

Each port can be cascaded (supports three cascade)

Support ROHS standard

Signals are broadcast

Enhanced signal display, the signal is extended to 50 meters

Has a power-saving mode (when the computer is turned off)

Dimensions: 480 × 160 × 120mm

Full Metal Jacket Design

Product Features:

1 eKL-92/94/98/916/932 distributor exquisite appearance, easy to install,

2, support for DOS, WIN3.X, WIN95/98/98SE/2K/ME/XP/NT, Linux, Netware, Unix and other operating systems.

3, support hot-swappable, can be free to change the display, without the need to shut down,

Installation instructions:

1, please use the a dedicated VGA cable,

2, one end of the VGA cable connected to the computer monitor interface, and the other end to the VIDEO IN connector distributor, monitor connected to the output port, (VIDEO OUT)

3, check the connections to ensure that the cable is properly connected,

4, connected to the external power supply, turn on the power switch, the POWER indicator lights

5 Turn on the computer to boot.

Technical parameters

Basic

Bandwidth of 250MHz (-3db) fully loaded

The bright colors degrees interference-55dB @ 5Mhz

Differential phase 0.05o (RL = 150Ω)

Differential gain of 0.05% (RL = 150Ω)

Maximum propagation delay of 5ns (± 1)

≤ 180ns switching speed

Video

Signal input -------

Signal Type VGA-UXGA video signal

The interface VGA15HDF interface

Minimum level 0.5Vp-p

Maximum level 1.0Vp-p

Impedance of 75Ω

Return Loss-30db @ 5MHz

Signal output -------

Signal Type VGA-UXGA video signal

The interface VGA15HDF interface

Output level 0.7Vp-p

Impedance of 75Ω

Return Loss-30db @ 5MHz

The DC compensation largest 5mV

Synchronization -------

Input / output signal type TTL

Input level is 0V-5.0Vp-P: 4.0V

Output level 5Vp-p

Input impedance 510Ω

Output impedance of 75 Ω

Polarity Positive or negative exactly the same (input)

Specification

Power 100VAC ~ 260VAC, 50/60 Hz, international adaptive power

Power ≤ 20W
