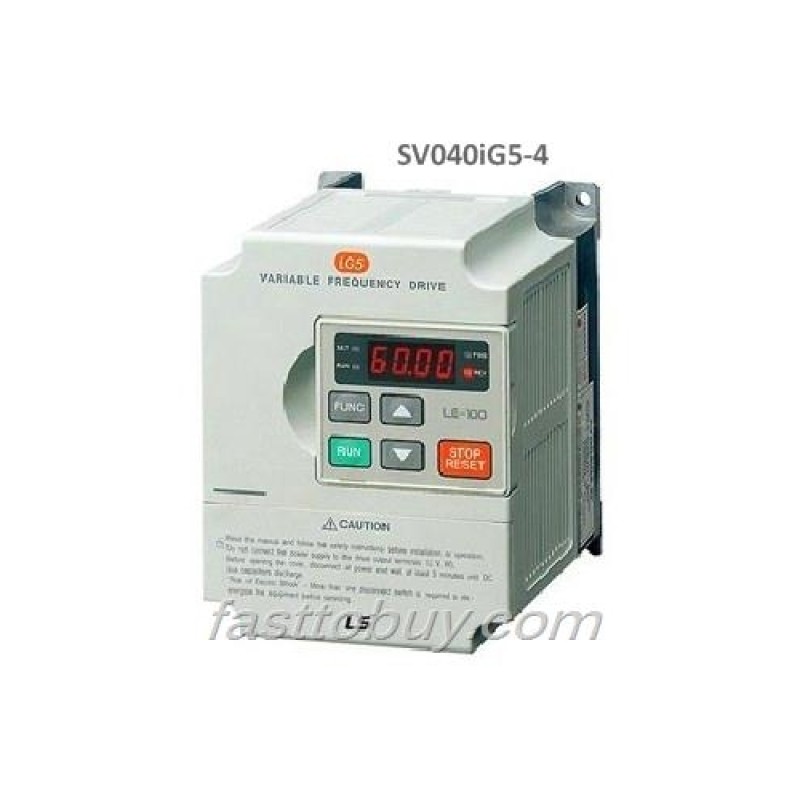

SV040iG5-4 LS AC Drive Inverter Starvert Series iG5 3 Phase 5.4HP 4KW 4000W 380~460V New free shipping

If you need more than 10pcs and want to get better wholesale price, please feel free to contact us by following:
email:[email protected]
Tel:0086-574- 88333153
We will quote you our best price to you in 24hours.

Features:

Selectable V/f, sensorless vector control

Motor parameter Auto-tuning

Powerful torque at overall speed range

0.1 ~ 400Hz frequency output

-15% ~ +10% input voltage margin

Fault history: Last 5 faults

0~10Vdc / -10 ~ +10Vdc analog input

IP20 enclosure, UL Type 1 (Option)

Selectable manual/automatic torque boost

Selectable PNP/NPN input signal

2nd motor control and parameter setting

Built-in Dynamic braking transistor as standard

Enhanced process PID control

Built-in RS485 (LS Bus / Modbus RTU) communication

Cooling fan On/Off control & Easy change

Remote control using external keypad * RJ45 cable(Optional)

Upgraded functions:

Sleep & Wake-up (Energy savings)

KEB(Kinetic Energy Buffering) protection

Low leakage PWM algorism

Monitoring & commissioning PC based software tool (Drive View)

Specifications:

3 Phase 380~460V

*1) Indicates the maximum applicable capacity when using 4 pole LG standard motor.

*2) Rated capacity ( 3*V*I) is based on 220V for 200V class and 440V for 400V class.

*3) Maximum output voltage will not be greater than the input voltage. Output voltage less than the input voltage can be set.

Applications:

Converting, Fan, Pump, Food processing machine, Electric shutter, Dryer, Running machine, Overheat, Commercial washing machine, Grinder, Textile machine, Material handling machine, Centrifuge, Elevator door, Tooling machine
