- Stock: In Stock

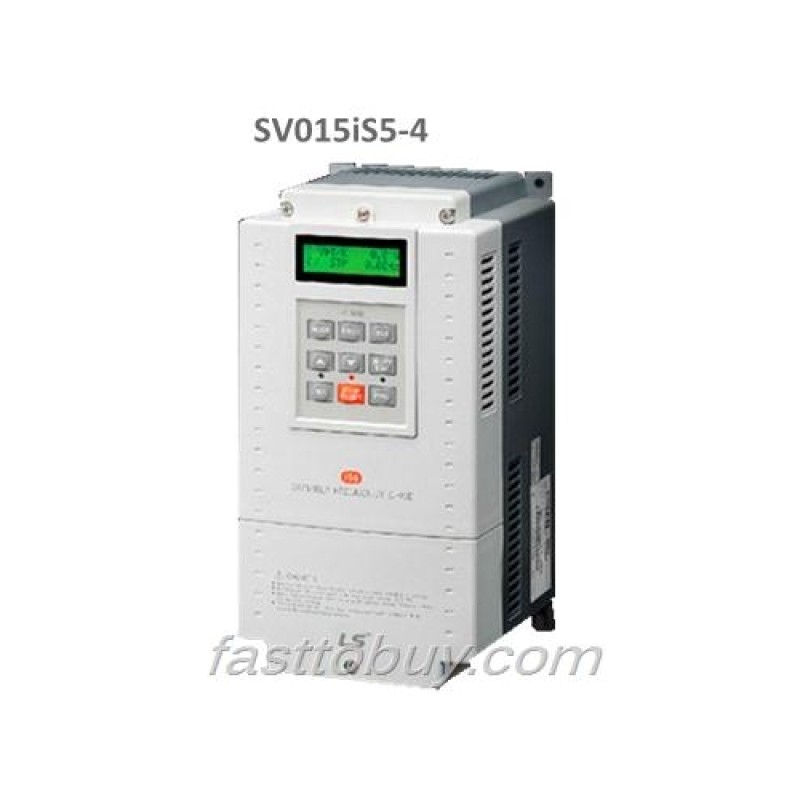

- Model: SV015iS5-4
- Weight: 4.70kg
2. Shipping options include DHL, UPS, FedEx, and EMS.
3. Estimated delivery time for express shipping via DHL, UPS, FedEx, or EMS generally ranges from 3 to 10 business days, depending on the destination country.
4. Please verify your address thoroughly when placing your order.
5. Important for buyers: You are responsible for any tariffs on accessories. To potentially avoid these tariffs, you may choose EMS express shipping.
6. The shipping service is responsible for any accidents, delays, or other issues that may arise.
Returns:
We offer a 14-day return policy. If you wish to return an item, please contact us within 14 days and ensure that the package remains unopened. The buyer is responsible for the shipping costs for both the return and the initial delivery, as well as any applicable customs fees. Once we receive and inspect the product, we will process your refund within 24 hours.
For any quality issues that arise during normal use within the warranty period, we will repair the item free of charge. The buyer is responsible for the return shipping cost, while our company will cover the cost of re-shipping the repaired item.
If you need more than 10pcs and want to get better wholesale price, please feel free to contact us by following:
email:[email protected]
Tel:0086-574- 88333153
We will quote you our best price to you in 24hours.
Features:
*kW/Voltage Ratings:
0.75 ~ 55kW, 3 phase, 200 ~ 230VAC
0.75 ~ 75kW, 3 phase, 380 ~ 480VAC
*Selectable V/f, Sensorless vector, Sensored vector control (Optional)
*Built-in process PID control
*Optimum acceleration & deceleration for a maximum torque
*APP parameter group for special operations;
Traverse, Multi Motor Control, DRAW
*Multi-function I/O terminal: Input: 27 functions / Output: 21 functions
*Multi Motor Control (Up to 4 motors: Optional)
*Motor parameter Auto-tuning
*Parameter Read/Write function using a detachable LCD Keypad
*8 Preset speedsl
*Extension I/O boards (Optional) : Sub-A, Sub-B,l Sub-C
*Communication options:
Modbus RTU, Profibus-DP, DeviceNet, RS485(LS Bus), Fnet(LS PLC link)
*Built-in Dynamic braking transistor (Up to 7.5kW [10HP])
*Monitoring & commissioning PC based software tool (Drive View)
Specifications:
200~230V Class(1~30HP)
Specification - 230V Class | |||||||||||||
SV***iS5- 2 | 008 | 015 | 022 | 037 | 055 | 075 | 110 | 150 | 185 | 220 | |||
Motor Rating | [HP] | 1 | 2 | 3 | 5 | 7.5 | 10 | 15 | 20 | 25 | 30 | ||
[kW] | 0.75 | 1.5 | 2.2 | 3.7 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | |||
Output ratings | Capacity[kVA] | 1.9 | 3.0 | 4.5 | 6.1 | 9.1 | 12.2 | 17.5 | 22.9 | 28.2 | 33.5 | ||
FLA[A] | 5 | 8 | 12 | 16 | 24 | 32 | 46 | 60 | 74 | 88 | |||
Frequency | 0 ~ 400Hz(Sensorless vector control: 0~300Hz, Sensored vector control: 0~120Hz) | ||||||||||||
Voltage | 200 ~ 230 V | ||||||||||||
Input ratings | Voltage | 3 Phase 200~230V (± 10%) | |||||||||||
Frequency | 50 ~ 60 Hz (± 5%) | ||||||||||||
Dynamic Braking | Braking Circuit | On Board | On Board | Optional (DB Resistor) | Optional (DB Resistor) | ||||||||
Max. Braking Torque | 100% | 100% | 20% Continuous | 100% | |||||||||
Max. Continuous Baking Time | 5 seconds | 5 seconds | 15 seconds | ||||||||||
Max. Duty | 3 % ED | 2 % ED | 10 % ED | ||||||||||
Weight(kg) | 4.7 | 4.7 | 4.8 | 4.9 | 7.7 | 7.7 | 13.9 | 14.4 | 20 | 20 | |||
200~230V Class(40~75HP)
Specification - 230V Class | |||||||
SV***iS5- 2 | 300 | 370 | 450 | 550 | |||
Motor Rating | [HP] | 40 | 50 | 60 | 75 | ||
[kW] | 30 | 37 | 45 | 55 | |||
Output ratings | Capacity[kVA] | 46 | 55 | 68 | 84 | ||
FLA[A] | 122 | 146 | 180 | 220 | |||
Frequency | 0 ~ 400Hz(Sensorless vector control : 0~300Hz, Sensored vector control: 0~120Hz) | ||||||
Voltage | 200 ~ 230 V | ||||||
Input ratings | Voltage | 3 Phase 200~230V (± 10%) | |||||
Frequency | 50 ~ 60 Hz (± 5%) | ||||||
Dynamic Braking | Braking Circuit | Optional (Braking Unit, Resistor) | |||||
Max. Braking Torque | 20%, Continuous | ||||||
Max. Continuous Baking Time | |||||||
Max. Duty | |||||||
Weight(kg) | 45 | 45 | 63 | 63 | |||
