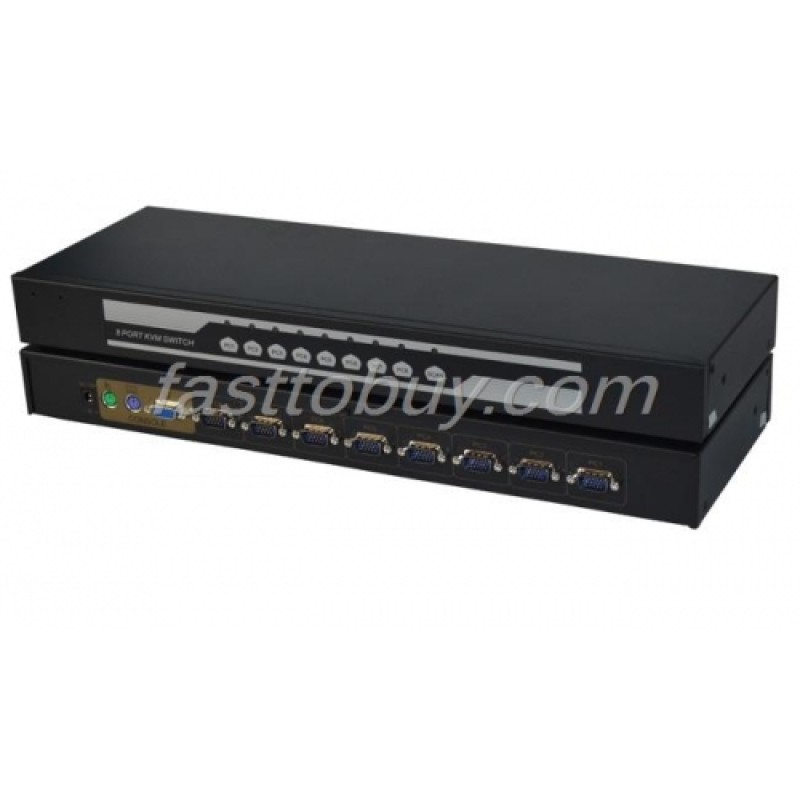

KVM Switcher series 8 ports PS2 81R One year quality assurance NEW

If you need more than 10pcs and want to get better wholesale price, please feel free to contact us by following:
email:[email protected]
Tel:0086-574- 88333153
We will quote you our best price to you in 24hours.

81R KVM Switcher

Description:

? Electronic switch internal microprocessor to handle a full-time ministries signal sent by the computer the possessed simulation function, can support more than one computer at the same time boot, and ensure that the switching process will not crash phenomenon occurs;

? keyboard, mouse, monitor simulator can boot

? control mode to automatically scan and manually switch the keyboard hotkeys

? DDC2 function (automatic memory screen Resolution)

? PnP hot swap function

? Pc board design, switching the machine will not power off

? hidden the Reset Free off the power will enable K / BMOUSE restart

? 15PIN RGB signal 1:1 magnification

Mode of operation:

  ? startup and shutdown:

  Boot: to ensure that the the EKL products connected host are turned off, open the left side of the backplane power switch, EKL product indicator light flashes, indicating that the EKL product is initializing the system. Stops flashing after one second, EKL product automatically switches to the first turn on the channel, if the EKL products detected all the channels were not open, you stay in channel 1, that the the EKL products has to enter the normal operating state; followed open the power of the host, the ONLINE indicator will accordingly turn lights up to indicate the status of each host open;

Shut down: to ensure that the EKL products connected to the host turned off, turn off the left side of the backplane power switch.

? panel key operation:

Button switch: press once the PC1 to PCn in any key, EKL products directly switch to the corresponding channel, while the corresponding SELECT indicator light turns red, indicating that control to correct the operation of the current channel; each switch, EKL Product emits a short tone switch normal; simultaneously the keyboard all three LED indicators shiny 1, EKL product before switching to the next channel, keyboard and mouse data cache has been cleared to avoid will not the correct data is transmitted to the host of the next channel.

Auto Scan: by the following version of the {SCAN} key, that is, immediately start the automatic scanning function.

? Keyboard hotkeys operation:

Keyboard hotkeys: Scroll Lock + Scroll Lock + PC? + Enter

Automatic scanning function: the Scroll Lock + Scroll Lock + S (s) + ENTER

Scan time setting: Scroll Lock + Scroll Lock + P (p) + Enter

                Scroll Lock + Scroll Lock + D (d) + Enter

To enter the OSD operation: Ctrl + Ctrl

Exit OSD Operation: Esc

Main specifications:

Model 81R 161R

Function 8 PCs to 1 User 16 PCs to User

Switching mode automatically scans / panel buttons / keyboard hotkey

Power Supply AC 220V-50HZ 9V

PC-side display HD-15M × 8 HD-15M × 16

Interface keyboard integration

         Mouse integration

Control display HD-15F × 1

End referral keyboard MD-6F × 1

MD-6F × 1 surface mouse

The distance 10Meter of the PC end to native

Control end to native distance 5Meter

Maximum resolution of 1920 × 1440

The image maximum bandwidth 250MHz

Horizontal scanning frequency 30-180KHz

Vertical scanning frequency 3-250HZ

Specifications:
