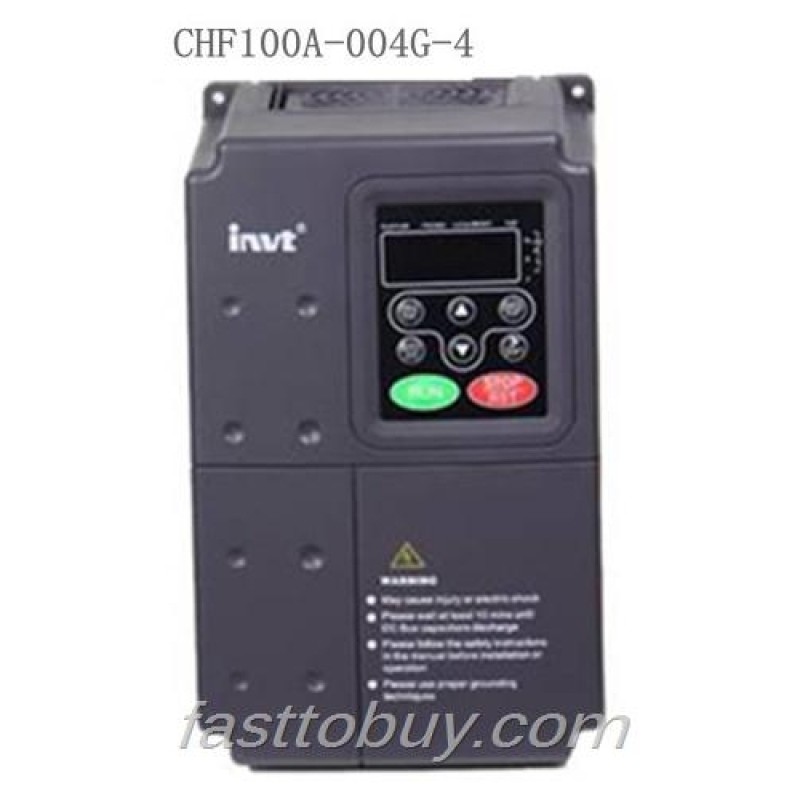

CHF100A-004G/5R5P-4 Invt CHF100 Series high performance universal inverter 3 Phase 380V-440V 4KW/5.5KW New

PLCAGE: CHF100A-004G/5R5P-4 Invt CHF100 Series high performance universal inverter 3 Phase 380V-440V 4KW/5.5KW New

Introduction

CHF100A series high performance universal inverter is the enhanced edition of CHF series, which is combined the advantage of CHF100 & CHE100. It adopts the DSP control system supplies sensorless vector control and V/f control. The performance is more perfect and stable. It is widely applied in Pump & Fan and some applications with high speed control accuracy, rapid torque response and high performance at low frequency.

Features

*Three control modes: without PG vector (SVC), V/F control, and torque control;

*Starting torque: without PG vector control: 0.5Hz/150% (SVC);

*18.5kW-90kW inverter built-in DC reactor to improve input power factor and increaseoverall efficiency and stability;

*Internal brake unit with every specification 0.75-15kW, so that the braking resister can be connected directlyfor a quick stop;

*16-steps simple PLC, multi-speed control, and PID control

*Supporting multi-frequency installation methods: digital setup, analog quantity setup, PID setup, and communication setup;

*Supports starting and stopping DC brake;

*The input and output terminals may be freely programmed, so users may combine a variety of operating modes as needed;

*Equipped with jump frequency control which prevents mechanical resonance and makes the system more stable and reliable;

*Equipped with instantaneous power failure non-outage capability;

*Equipped with sleep-wake delay installation capability;

*Equipped with over-torque detection;

*Variety of maximum frequency setting source options;

*Equipped with a bidirectional shift key , which enables users to use the shift key to view real-time parameters;

*Rotation speed tracking re-start function: allowing rotating machinery to be started smoothly and without any shocks;

*QUICK/JOG function: users can freely define multi-functional shortcut keys, and by setting up these parameters users can quickly browse different function codes of modified which are different from default values;

*Equipped with automatic voltage adjustment function, which can effectively resolve problems with high-power motors low-frequency vibrations;

*Equipped with vibration suppression;

*Offering a variety of fault protection functions: over-current, over-voltage, under-voltage, over-temperature, phase-failure, overload, etc.

Specification

Application

* boiler, induced draft fan, exhaust fan in coal mine

* the central air-conditioning energy saving transformation

* oilfield injection water pumps, fuel pumps

* air compressor energy saving transformation

* water circulating pump, filling pumps, constant pressure water supply

* music fountain
