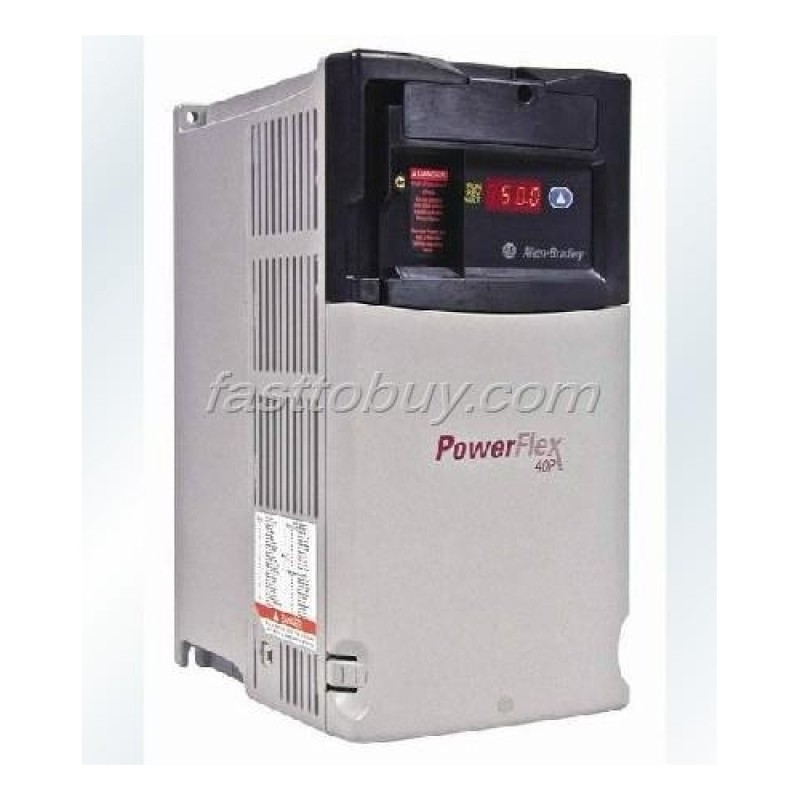

22D-D012N104 Rockwell PowerFlex 40P 380V 5.5KW NEW

Technical Specifications

Category

Specification

Protection

Motor Protection:

I2t overload protection - 150% for 60 seconds, 200% for 3 seconds (provides Class 10 protection)

Overcurrent:

200% hardware limit, 300% instantaneous fault

AC Input Overvoltage Trip
    100…120V:
    200…240V:
    380…480V:

150V AC
290V AC
575V AC

AC Input Undervoltage Trip
    100…120V:
    200…240V:
    380…480V:

75V AC
150V AC
275V AC

Bus Overvoltage Trip
    100…120V:
    200…240V:
    380…480V:

405V DC
405V DC
810V DC

Bus Undervoltage Trip
    100…120V:
    200…240V:
    380…480V:

210V DC
210V DC
390V DC

Logic Control Ride-Thru:

Minimum is 0.5 seconds - 2 seconds, typical

Faultless Power Ride-Thru:

100 milliseconds

Dynamic Braking

Internal brake IGBT included with all ratings except No Brake versions.

Recommended Fuses/Circuit Breakers
    Fuse:
    Circuit Breakers:

UL Class J, CC, T or Type BS88; 600V (550V) or equivalent.
HMCP circuit breaker or equivalent.

Electrical

Efficiency:

97.5% (Typical)

Voltage Tolerance:

120V, 200…240V, 380…480V, 460…600V: ±10%

Frequency Tolerance:

48…63 Hz

Displacement Power Factor:

0.98 across entire speed range

Maximum Short Circuit Rating:

100,000 Amps symmetrical

Control

Carrier Frequency:

2…16 kHz. Drive rating based on 4 kHz.

Output Frequency:

0…240 Hz (Programmable)

Frequency Accuracy
    Digital Input:
    Analog Input:

Within ±0.05% of set output frequency.
Within 0.5% of maximum output frequency.

Speed Regulation - Open Loop with Slip Compensation:

±2% of base speed across a 40:1 speed range.

Stop Modes:

Multiple programmable stop modes including; Ramp, Coast, DC Brake, Ramp-to-Hold and S Curve.

Accel/Decel:

Two independently programmable accel and decel times. Each time may be programmed from 0…600 seconds in 0.1 second increments.

Intermittent Overload:

150% Overload capability for up to 1 minute
200% Overload capability for up to 3 seconds

Electronic Motor Overload Protection:

Class 10 protection with speed sensitive response.

Control I/O

Digital Control Inputs
    Current:
    SRC (Source) Mode:
    SNK (Sink) Mode:

6 mA
On = 18…24V, Off = 0…6V
On = 0…6V, Off = 18…24V

Analog Control Inputs
    0…10V DC:
    4…20 mA:
    External Pot:

100k ohm input impedance
250 ohm input impedance
1…10k ohms, 2 Watt minimum

Control Output
    Resistive Rating:
    Inductive Rating:

Programmable Output, Form C Relay
3.0 A at 30V DC, 125 and 240V AC
0.5 A at 30V DC, 125 and 240V AC
