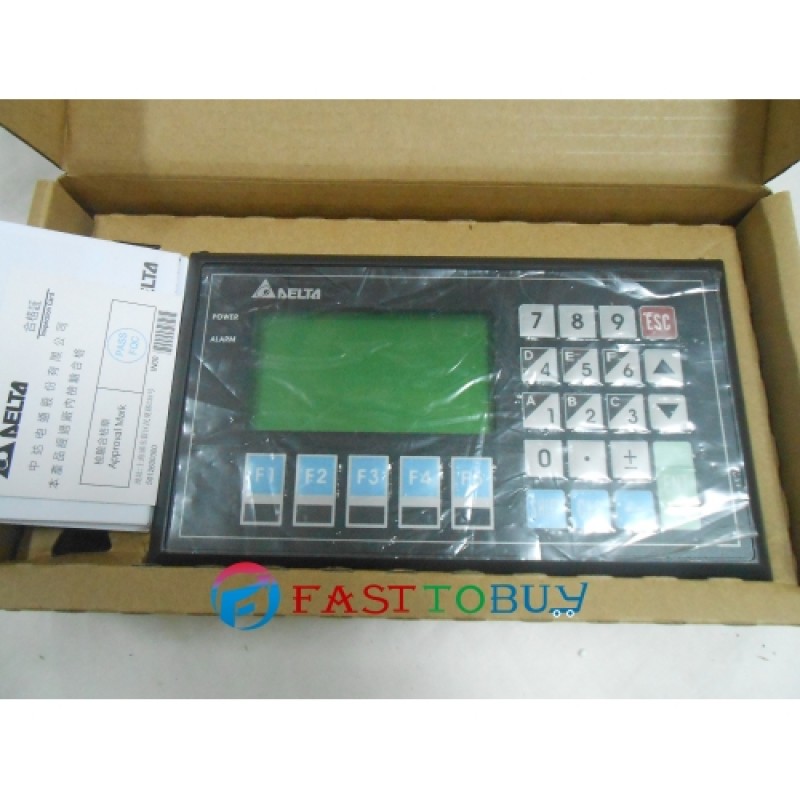

TP08G-BT2 3.8" 240x128 STN single color Delta Text Panel New with USB program Cable

Model

TP08G-BT2

Screen Type / Display

Color

STN-LCD / Monochromatic

Case Color

BS2: White color, BT2: Black color

Backlight

The back-light automatic turn off time is 1~99 minutes (0 = do not turn off)

(The back-light life is about 50 thousand hours at 25°C)

Resolution

240×128 dots

Display Range

78mm(W)× 41mm(H);

3.8” (diagonal preferred)

Display Text

5 × 8 dots

48 characters × 16 rows

8 × 8 dots

30 characters × 16 rows

8 × 12 dots

30 characters × 10 rows

8 × 16 dots

30 characters × 8 rows

Font Size

ASCII: 5×8, 8×8, 8×12, 8×16

Program Memory

1024KB flash memory

Battery Cover

DC 3V battery for HMI

Effective Display Area

78mm(W)× 41mm(H); 3.8” (diagonal

preferred)

External Input Power

24V (1.8W Max.)

Memory Capacity

1024K Byte

CPU

ST STR710RZT6

RAM of System

64K Byte

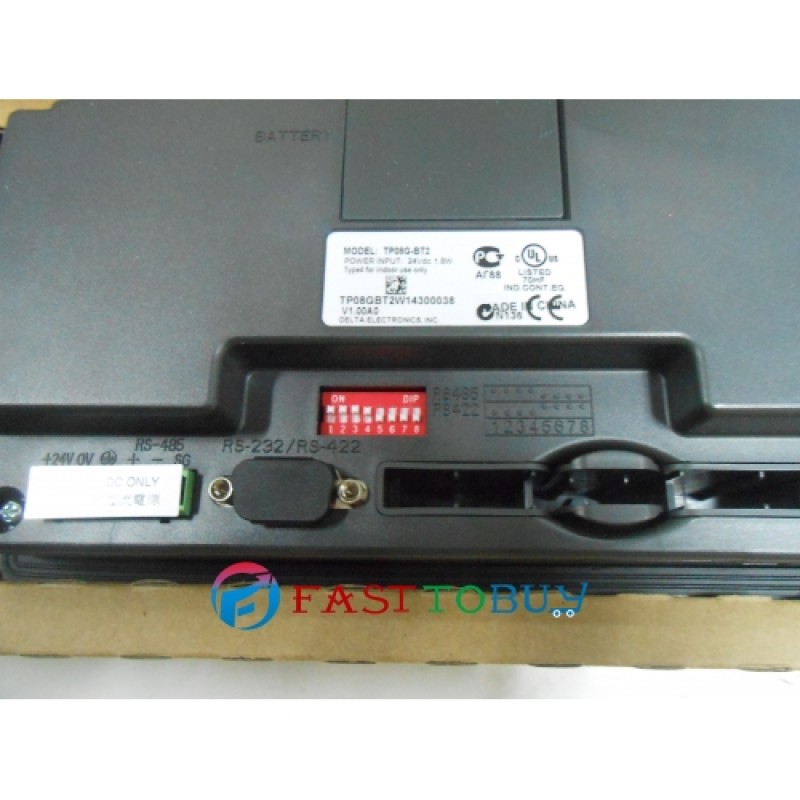

Communication Interface

COM1: RS-232/RS-422 COM2: RS-485

Waterproof Class of Front

Panel

IP66 / NEMA4 / UL Type4 indoor

Operating Temperature

for Hardware

0~50°C; 20-90% RH (non-condensing)

Storage Temperature for

Hardware

-20~60°C

Vibration

5Hz≤f?9Hz = Continuous: 1.75mm / Occasional: 3.5mm

9Hz≤f≤150Hz = Continuous: 0.5g / Occasional: 1.0g

Weight

0.43kg

Dimensions

210×122×45mm (Width(W) × Height(H) × Deep(D))

Cooling Method

Natural Air Cooling
