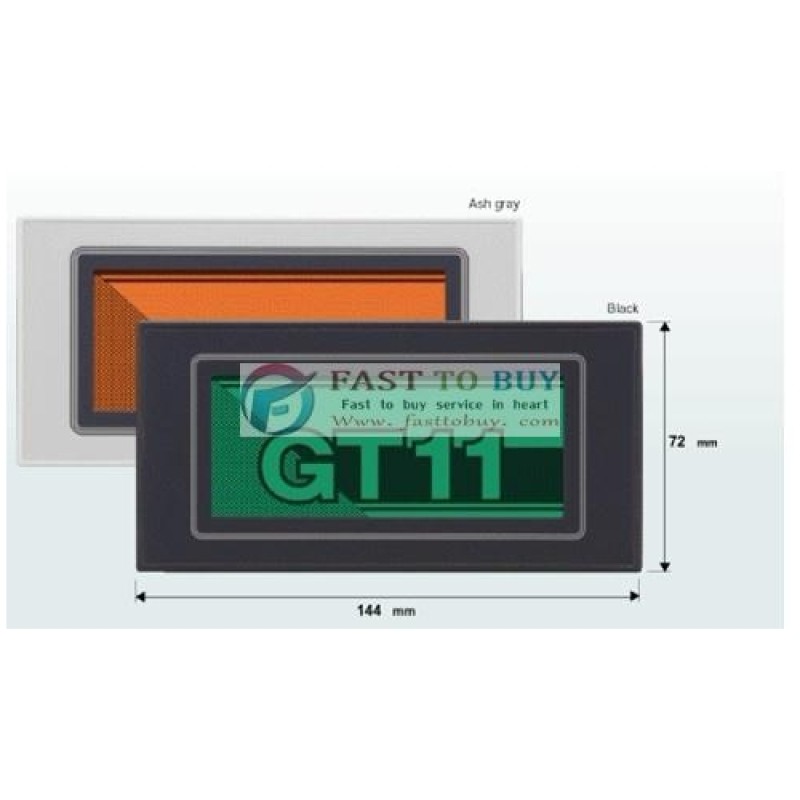

GT11 AIGT2030B HMI Panel 4" replacement AIG12GQ02D

Item

GT11

Rated voltage

24 V DC

Operating voltage range

21.6 to 26.4 V DC

Power consumption

2.4W max.

Power supply unit isolation method

-

Ambient temperature

0 to 50 °C

Ambient humidity

20 to 85% RH (No dew condensation)

Storage temperature

-20 to 60 °C

Storage humidity

10 to 85% RH (No dew condensation)

Vibration resistance

10 to 55 Hz (1-minute cycle): Double amplitude: 0.75 mm, 10 minutes in each of the X, Y, and Z directions

Shock resistance

98 m/s2 min: 4 times in each of the X, Y, and Z directions

Superposed noise
suppression

1,000 V [P-P] min, pulse width of 50 ns, 1ms between power supply terminals (by a noise simulator)

Environmental resistance

IP65 (in the initial stages) Dust-proof and drip-proof from the front of the panel only (Rubber packing is attached to the panel contact surface.)
*When reattaching the panel, replace the waterproof packing.

Mass

Approx. 230 g

Display

Display device

STN monochrome LCD

Resolution

240 (W) x 96 (H) dots

Display color

2 colors (black/white)

Displayable area

96.0 (W) x 38.4 (H) mm

Backlight

3-color LED (green, orange, red)/White LED *No need for replacement

Functions

Font types

Fixed (GTWIN) : 8 x 8, 16 x 8, and 16 x 16 dots Characters can be displayed in the 1, 2, 4, or 8 times width or height.
TrueType (GTWIN): 10, 12, 14, 16, 24, 26, 28, 32, 36, 48, and 64 Windows (R): 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 32, 36, 48, and 64

Languages

Japanese, English, Korean, German, French, Spanish, Italian, Simplified Chinese, Traditional Chinese, Turkish

Graphics

Straight lines, continuous straight lines, squares, circles, ovals, arcs, elliptic arcs, fan shapes, elliptic fan shapes, beveled squares, bitmaps

Number of screens

Approx. 250 screens*1

Screen No. that can be set

Base screens: No. 0 to 3FF, Keyboard screens: No. 0 to 7

Part functions

Messages, lamps, switches, data, bar graphs, clocks, keyboards, line graphs, and alarm list parts

Other functions

Recipe, flow display, write device, alarm record, alarm list, and language switching

Clock function

Provided with a built-in clock function. (Can also refer to and display a PLC clock.) *Buy a commercially available battery.

Contrast adjustment

Contrast can be adjusted by using the touch panel.

Automatic communication settings

The communication conditions of dedicated software and PLC can be automatically set by connecting a cable.

Debugging function

GT connected between a PC and PLC allows the PLC to be debugged without a direct connection with the PC.

Screen creation

Dedicated software should be used. Applicable OS: Windows? 95 (OSR2 or later)/98/Me/2000/NT/XP

Touch key resolution

Free layout (8 dots min)

Touch key operation force

0.5 N max

Touch key life

1 million operations min

COM. port

Communication standard

Conforms to RS232C

Conforms to RS422

External communication conditions

Baud rate: 9,600/19,200/38,400/57,600/115,200 bps

Data bits: 7 or 8 bits
Parity: None, Odd, Even
Stop bits: 1 bit

Protocol

Our FP series supported/General-purpose serial interface supported/Other companies' PLC supported (Refer to the compatible PLC list for manufacturers and models.)

Connector

Connector terminal base (8 pins)

Screen data transfer interface

Communication standard

Tool port (Conforms to RS232C)

Communication conditions with personal computers

Baud rate: 9,600/19,200/115,200/230,400 bps*2
Data bits: 8 bits
Parity: None, Odd, Even
Stop bits: 1 bit

Protocol

Our dedicated protocol

Connector

5-pin mini-DIN
